38

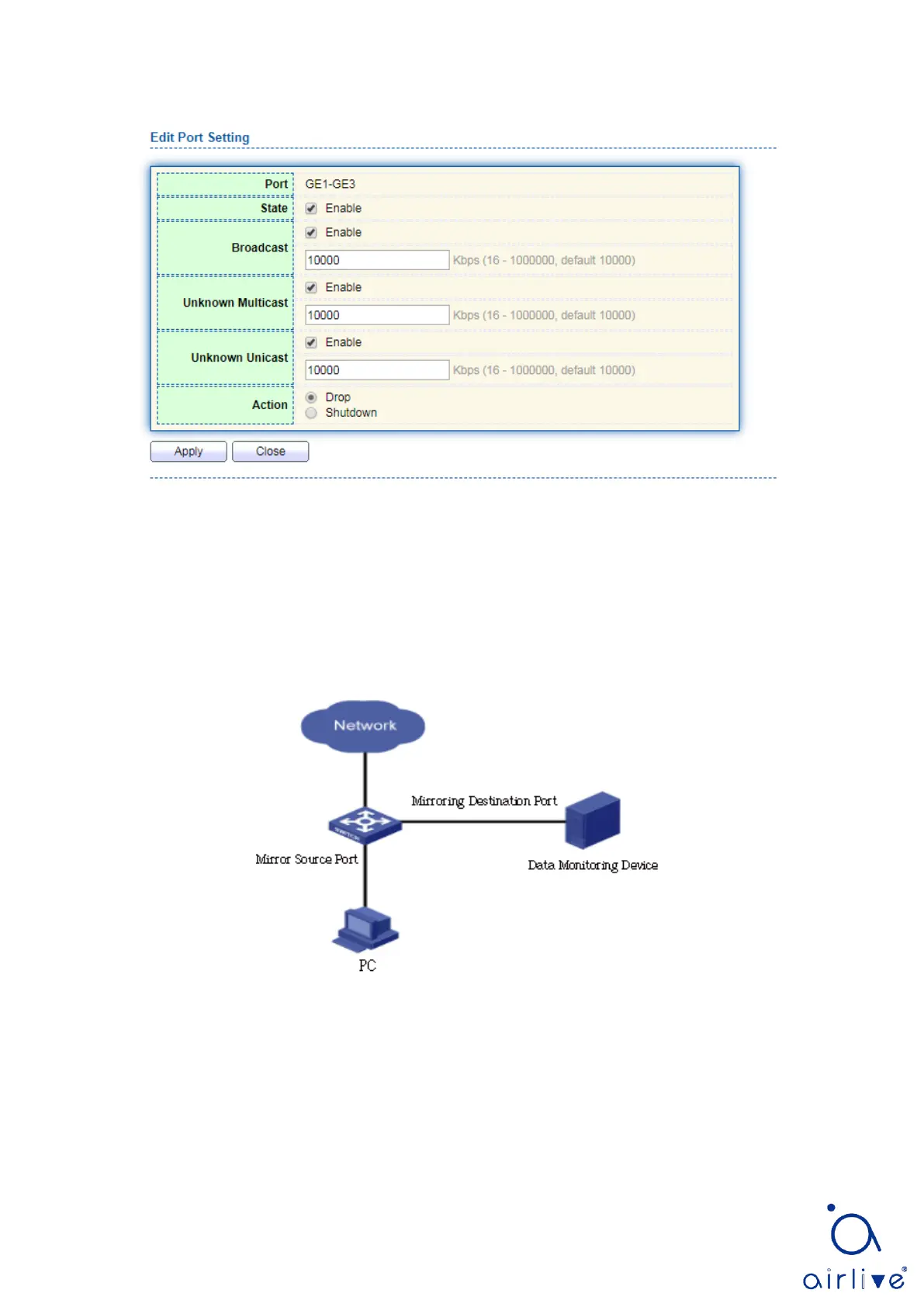

5.9 Mirroring
Port Mirroring copies the message of a specified switch port to the destination port.
The copied port is the Source Port, and the copying port is the Destination Port.
Destination Port accesses to data inspection devices so that users can analyze the
messages received to monitor network and troubleshoot as follows:
Instance
PC1 and PC2 access Switch A through interface GE1 and GE2 respectively.
Users intend to monitor the messages transmitted from PC2 to PC1.
Instructions:
1. Click the “Port > Mirroring” in the navigation bar. 4 sets of flow mirroring rules can be
configured as follows:
