7
4

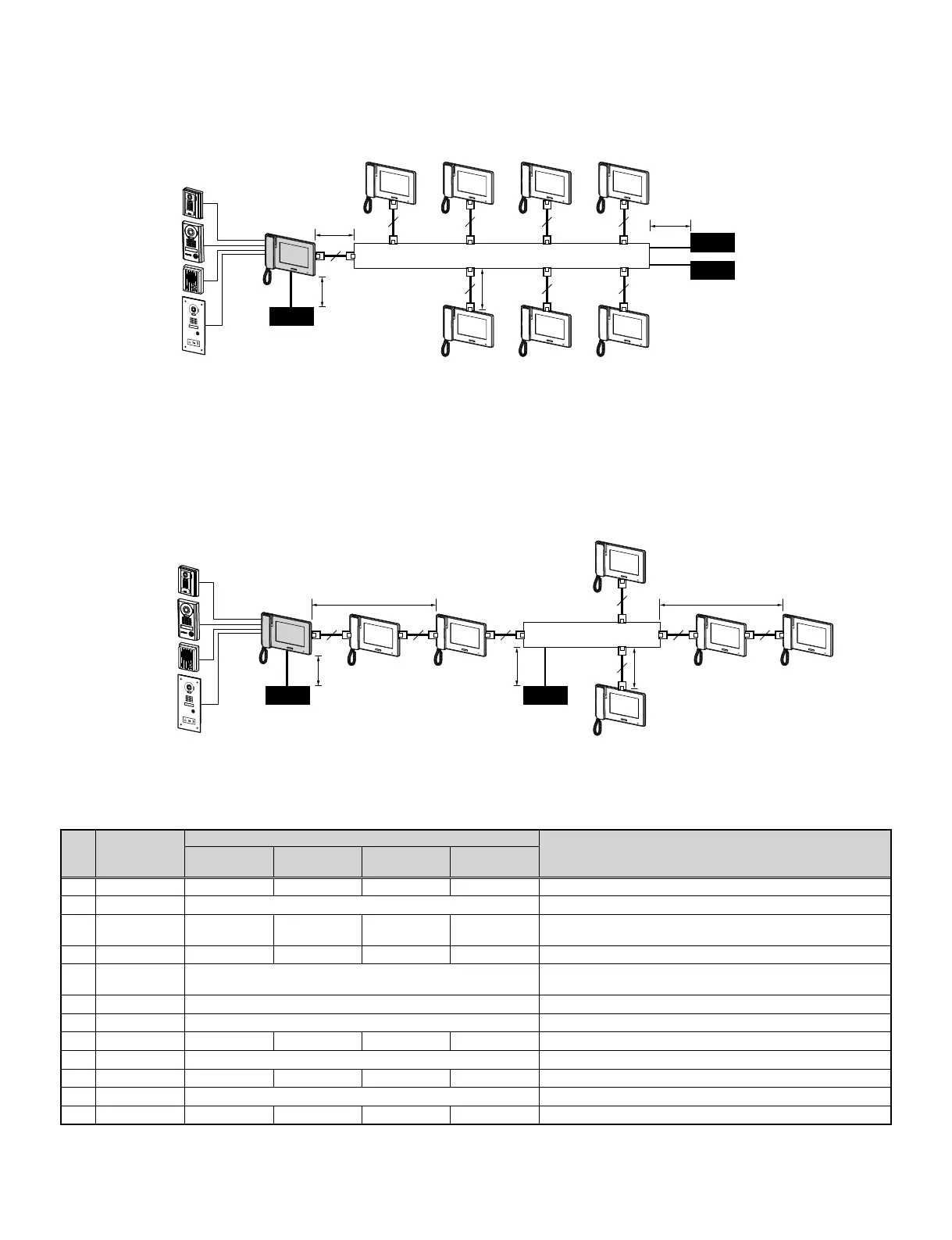

Supplying power to sub master stations via a distribution adaptor
* The total wiring distance of residential stations is 300 m (980').
PS24
PS24
PS24
*1
*2
*1: The master station needs a power supply.
*2: Up to four sub master stations can be supplied with one power supply. Use two power supplies for 5 - 7 sub master stations.
5
Mix-and-match methods
* The total wiring distance of residential stations is 300 m (980').
PS24 PS24
Wiring distance
CAT5e
(24AWG)
Wire diameter
Notes
Ø0.65 mm
(22 AWG)
Ø0.8 mm
(20 AWG)
Ø1.0 mm
(18 AWG)
Ø1.2 mm
(16 AWG)
[A]
- 5 m (16') 5 m (16') 10 m (33') 10 m (33')
-
[B]
300 m (980') -
-
[C]
- 150 m (490') 200 m (650') 300 m (980') 300 m (980')
When powering up to one master station and four sub master
stations
[D]
- 150 m (490') 200 m (650') 300 m (980') 300 m (980')
When powering up to six sub master stations
[E]
30 m (98') -
Up to 50 m (165') when powering master and one sub master
stations
[F]
30 m (98') -
When powering up to three sub master stations
[G]
50 m (165') -
When powering up to two sub master stations
[H]
- 5 m (16') 5 m (16') 10 m (33') 10 m (33')
When powering up to three sub master stations
[I]
200 m (650') -
-
[J]
- 150 m (490') 200 m (650') 300 m (980') 300 m (980')
-
[K]
50 m (165') -
-
[L]
- 5 m (16') 10 m (33') 10 m (33') 10 m (33')
-
[A]
[K]
[L]
[I]
JP-8Z
[A]
[K]
[E][E]
JP-8Z
[L]
