- 22 -

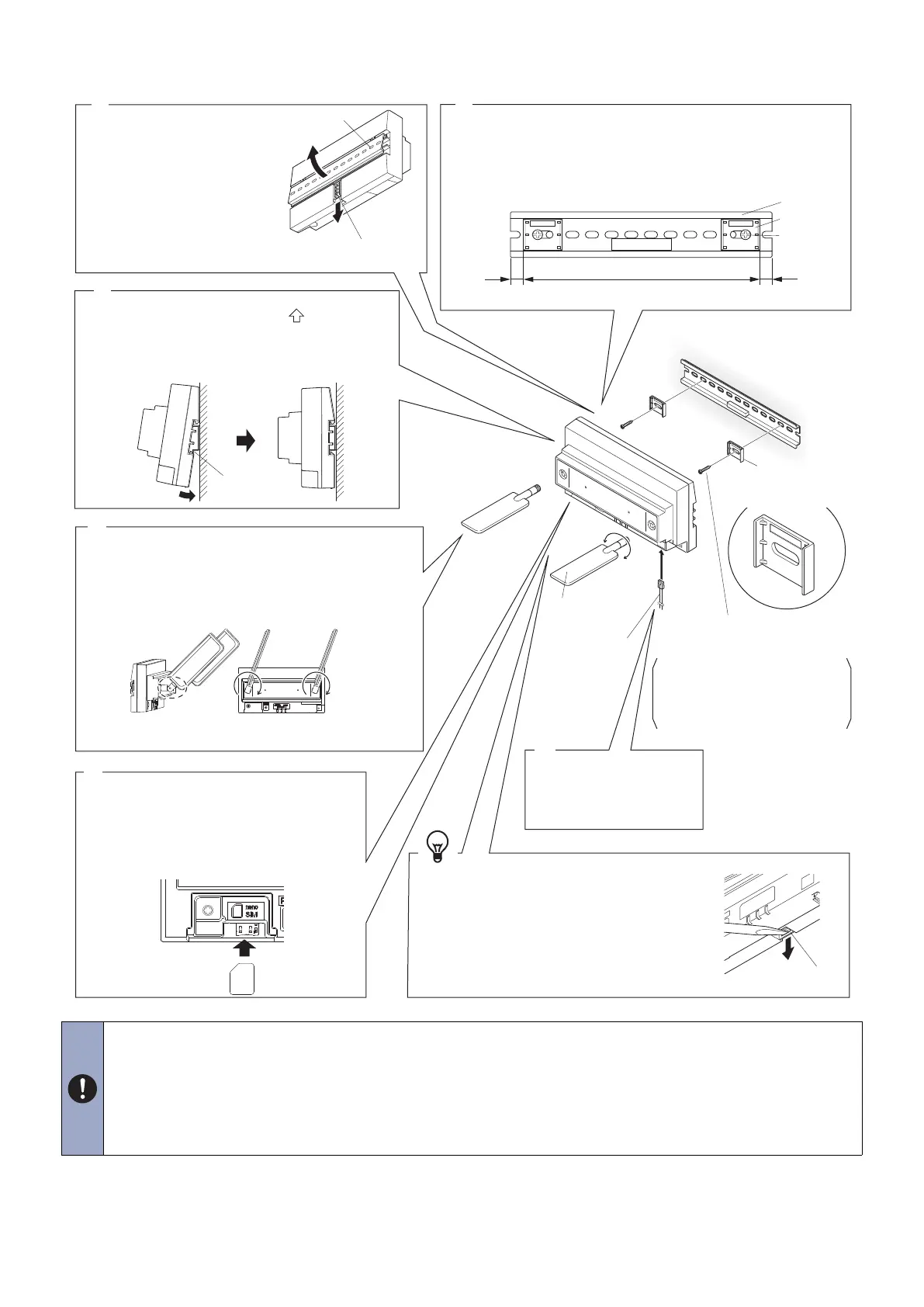

These illustrations explain installation using the IXGW-TGW.En model.
• Do not insert the SIM card while the station is turned on. Otherwise, the station may not operate correctly.
• Only use the supplied terminal antenna with this station.
• Always shut down the station before disconnecting power to prevent malfunctions. Before disconnecting power, press
the Wireless Off button for at least one second. The wireless indicator light will remain on while the station is shutting
down. Do not disconnect the power before the light turns off. Doing these steps out of order can cause damage to the
station.
4
1
6
3
5
2
Pull the lock release
lever down to remove
the DIN rail from the
adaptor.
DIN rail
When inserting SIM cards, open the SIM
card insertion slot cover with a
screwdriver, insert the SIM card, and
place the cover back in its original
position.
Attach the terminal antennas to the adapter and
adjust the antennas by bending or rotating it.
Bend
Rotate
Loosen
Lock release lever
Attach the DIN rail and the stoppers to the wall. Be sure
to attach the stoppers so that the adaptor will not come
off when it is slid sideways.
Position the adaptor with "UP " facing up,
and mount the adaptor on the DIN rail and
then click the adaptor into place.
*For IXGW-GW installation, go to step 6.
Insert the Cat-5e/6
cable into the adaptor.
DIN rail
Cat-5e/6 cable
When removing the adaptor, pull the lock
release lever down.
Lock release lever
Stoppers mounting position
DIN rail
Stopper
Screw
10±5mm
10±5mm
3/8”±3/16”
(7-1/16”)
Stoppers x 2
Enlarged view
(180mm)
3/8”±3/16”
Wall-mounting wood
screws x 2 (not included)
Screw shaft: φ4.1mm or less
Slotted head: φ8.2mm or less,
3.0mm or less in height.
Bend the hinge.
Rotate it rightwards and fix it
into place.
Tighten
Terminal antenna
