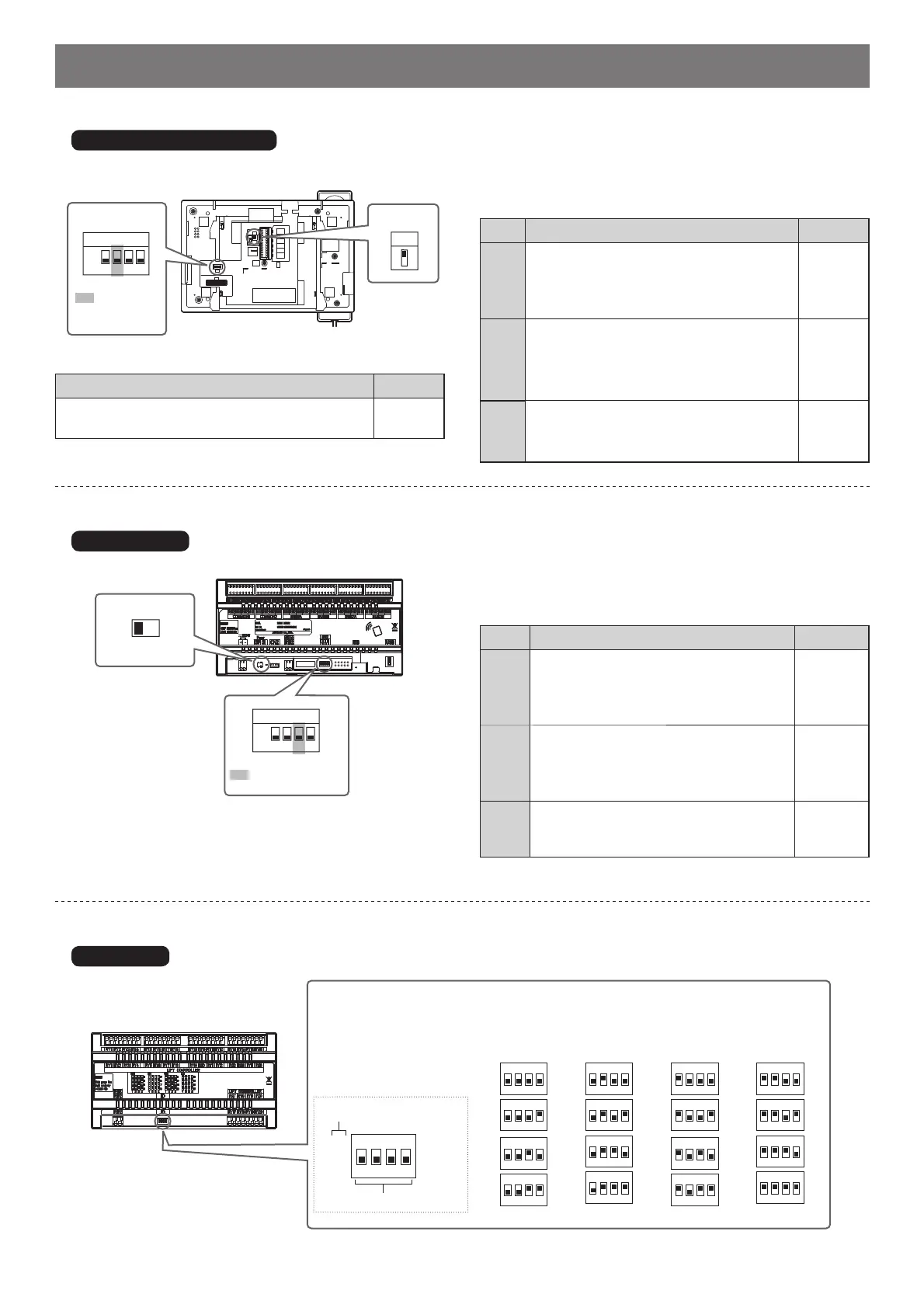

- 47 -
ON
OFF
2
1
ON
OFF
SW2
1 2 3
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
ON
123
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
ON
123
4
1
DIP switch
Power switch
■ Expanded bus control unit
■ Lift control adaptor
GT-BCXB-N
GTW-LC
ID switch
Set the lift control ID number of this unit by the combination of the switch 1 to 4 settings
as shown below.
ID number
Positions of switch 1 to 4
1 Power switch
Set the switch to ON when using this unit.
2 SW2
No. Function Default
1
Sets this unit as used for either a multi
building system or single building system.
ON: Multi building system
OFF: Single building system
OFF
2
Sets this unit as to be used for either a
tenant section or main section.
ON: Main section
OFF: Tenant section
OFF
4
Resets the passcode for installer or
administrator when this unit is initialized by
setting this switch to ON in 2 seconds.
OFF
A
B
SW1
2
1
SW2
1 2 3
4
ON
OFF
DIP switches
■ Guard station
GT-MKB-N
2 SW2
No. Function Default
1
Sets this unit as used for either a multi
building system or single building system.
ON: Multi building system
OFF: Single building system
OFF
3
Sets the ID of this unit.
* (3), (4): GT-BCXB-N Common trunk line 2
ON: ID 2 (4)
OFF: ID 1 (3)
OFF
(ID 1)
4
Resets the passcode for installer or
administrator when this unit is initialized by
setting this switch to ON in 2 seconds.
OFF
1 SW1
Function Default
For terminating a guard station, set SW1 to "A".
When not terminating, set to "B".
A
: Do not
change this
switch.
: Do not change this
switch.
