WISE-4471 Series User Manual 16

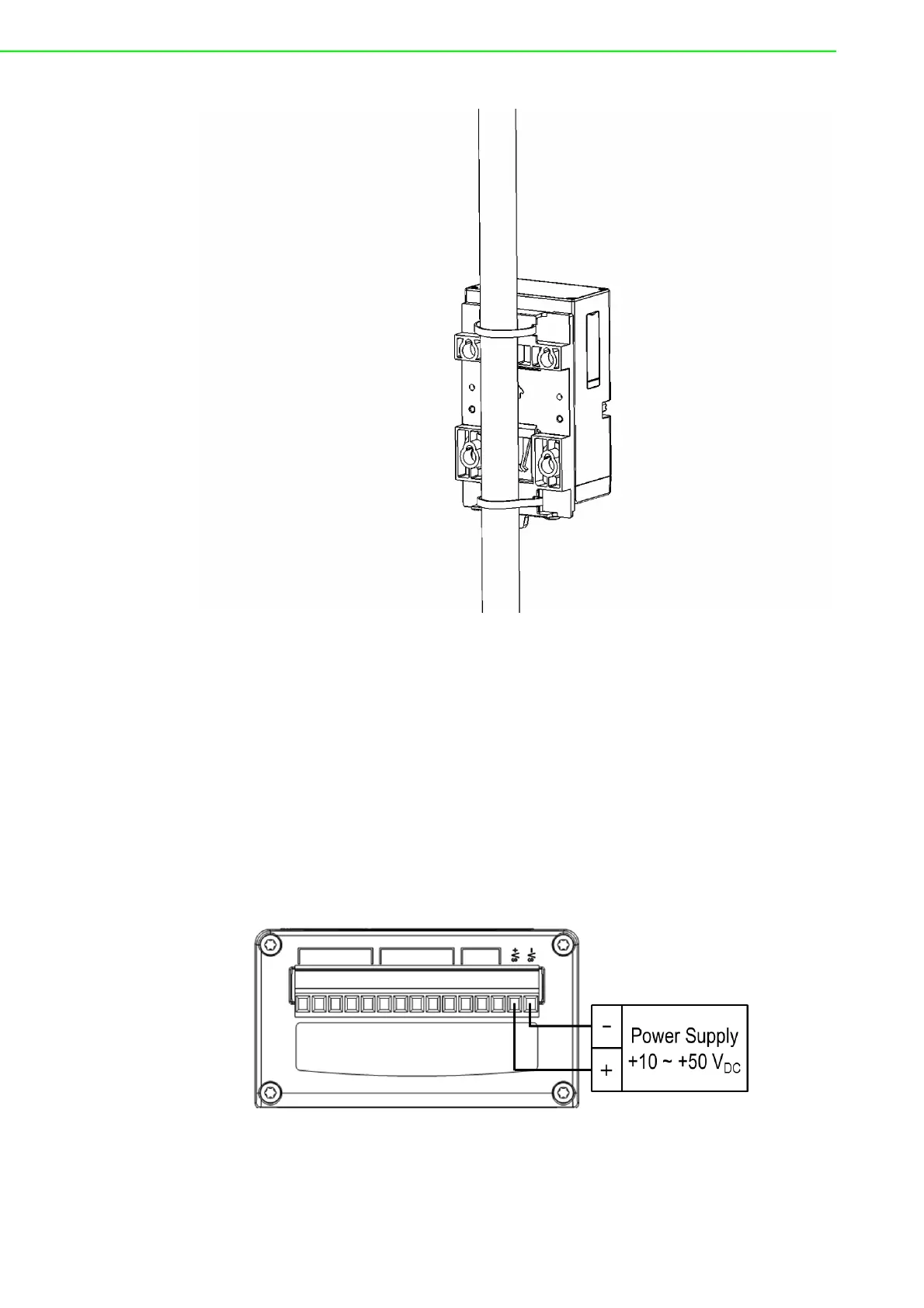

Figure 3.9 WISE-4471 Pole Mounting
3.3 Wiring & Connections
This section provides basic information on wiring the power supply and I/O units.
3.3.1 Power Supply Wiring
WISE-4471 modules are designed to support a standard industrial unregulated 24-
VDC power supply. For other applications, they can also accept +10 to +50 VDC
input with 200 mV of peak-to-peak power ripple. The immediate ripple voltage should
be maintained between +10 and +50 VDC. The screw terminals labeled "+Vs" and "-
Vs" are for the power supply wiring.
Figure 3.10 WISE-4471-S250 Power Wiring
