UTC-515/520/532 User Manual 24
3.5 Installing wireless LAN Card (option)
1. Detach and remove the rear cover.
2. Remove the 4 pcs screws on the heatsink.
3. Install WLAN card onto MiniPCIe Slot on the M/B bottom side.
4. Connect coaxial cable to ANT1 and ANT2 on WLAN card.
5. Finish antenna bracket/washer/nuts installation inside chassis.
6. Reassemble the back cover.
7. Install the antenna on SMA connector on chassis exterior.

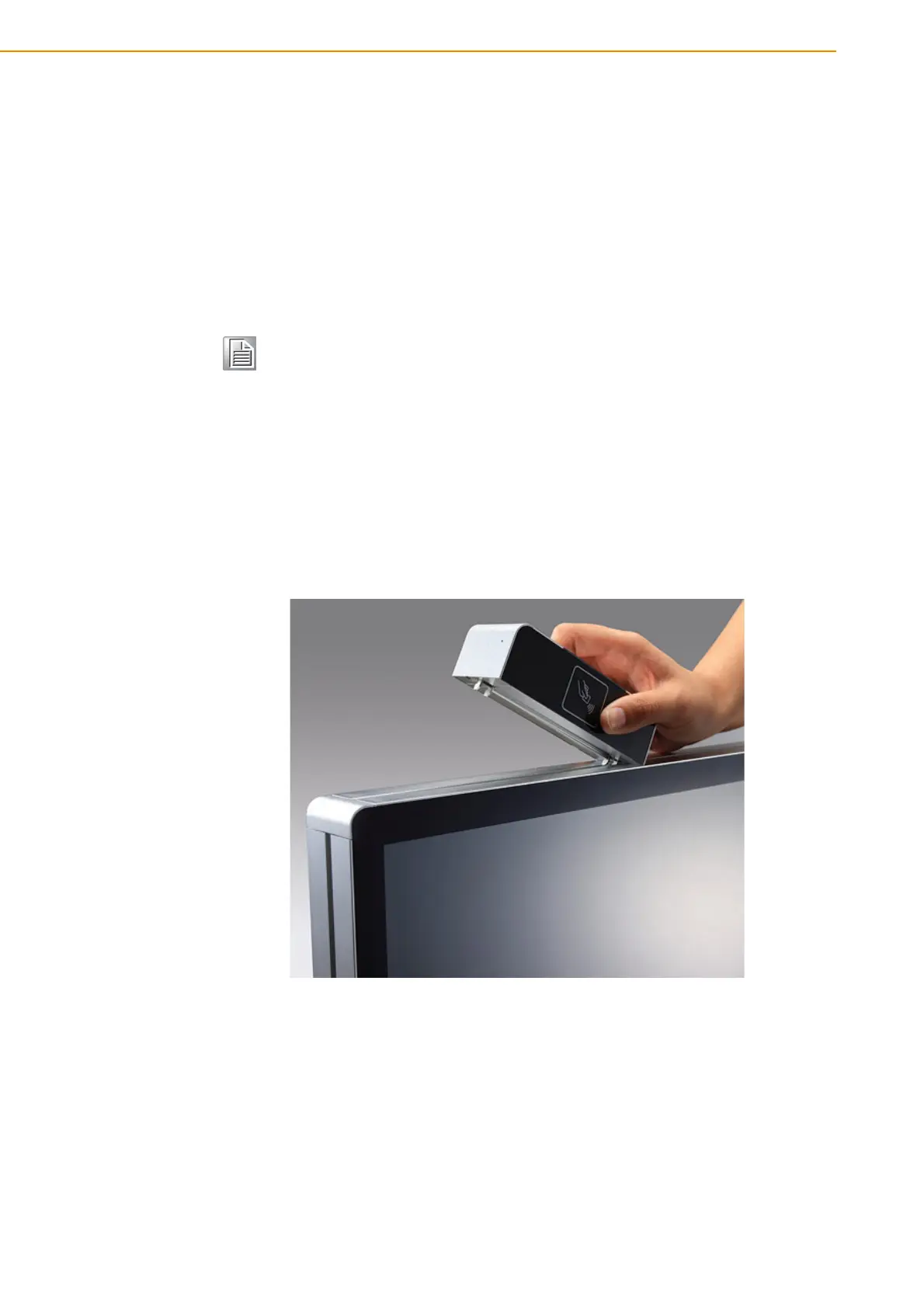

3.6 Installing UTC peripherals (option)
1. Attach the UTC-peripheral to the side groove.
2. Fasten the 2 screws to fix the peripheral in place.
3. Connect the cable to an I/O port (USB).
4. Choose a location to place the cable clamp and attach the cable to it for simple
cable routing.
Note! During installation that required removing MB from chassis and detach
cables and reattach, always locate pin 1 of the header by aligning red
side of ribbon cable to the edge indicated by a small triangle marking on
the PCB.
