UNO-247 V2 User Manual 8

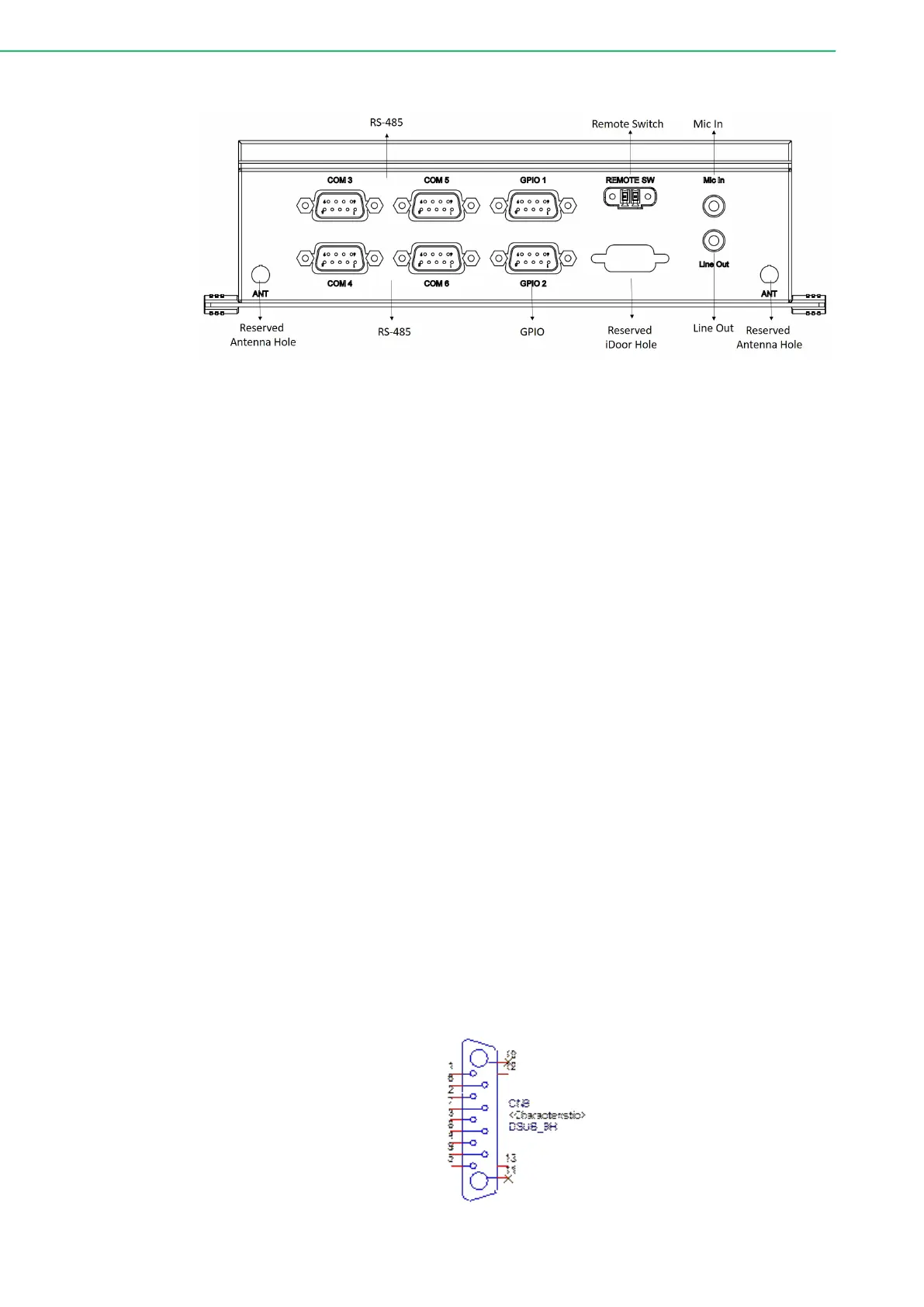

Figure 2.5 Rear I/O of UNO-247 V2
2.2.1 Power Connector
UNO-247 V2 comes with a terminal block that carries 12~24V
DC
external power
input, allows the flexibility of wiring and features reversed wiring protection. There-
fore, it will not cause any damage to the system by reversed wiring of ground and
power lines.
2.2.2 LAN: Ethernet Connector
UNO-247 V2 is equipped with four Gigabit LAN controllers (Realtek 8111k-CG) that
complies with IEEE 802.3u 10/100/1000 Base-T is used as the controller chip.
2.2.3 USB Connector
UNO-247 V2 features 4 USB ports that comply with both USB3.2 and USB2.0 speci-
fications. The USB connectors support plug-and-play and hot-swapping functionality
for external devices without turning off the computer. It can also be enabled/disabled
in the BIOS menu.
2.2.4 VGA Connector
UNO-247 V2 provides 1 x VGA connector for a general use of display.
2.2.5 HDMI Connector
UNO-247 V2 provides 1 x HDMI 1.4 connector for a high resolution interface up to
1920 x 1080 @60 Hz.
2.2.6 GPIO Connector
UNO-247 V2 features 1 x GPIO port extender from GPIO from CN5 function through
a cable.
