TPC-100W Series User Manual 20

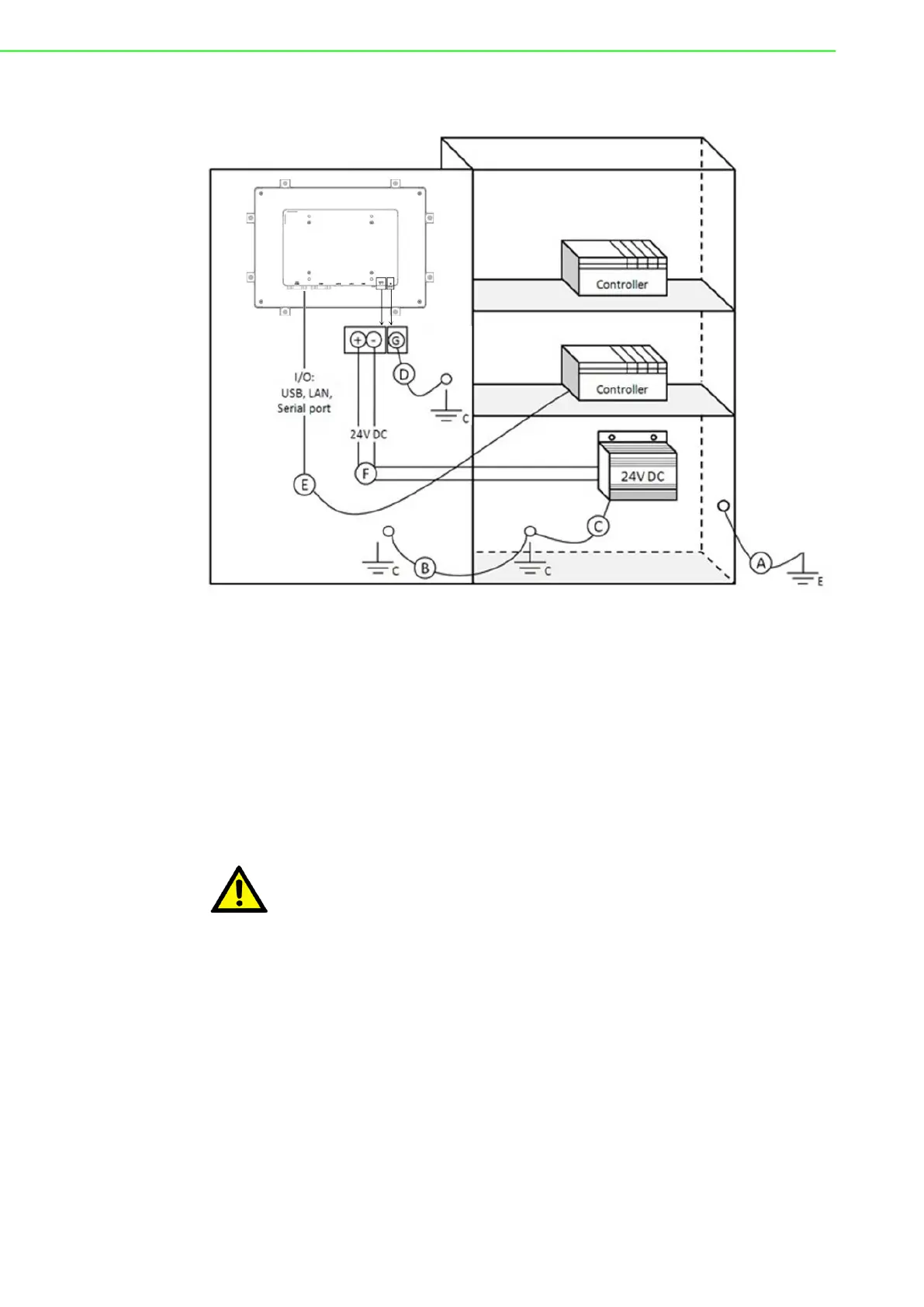

2. System wiring.
A: Connect the cabinet to the earth ground.
B: Ensure that the entire cabinet has been grounded all together.
C: Connect the ground of the power supply to the cabinet.
D: Connect the ground pin of the TPC-100W system to the cabinet.
E: Connect the I/O to the controller if needed.
F: Connect the V+ and V- of the power supply to the TPC-100W system.
Power should only be supplied after the wiring outlined in steps A to F has been per-
formed.
Caution! Ensure that all wires follow the installation guidelines or damage to the
system may occur.
Assurez-vous que tous les fils suivent les directives d'installation ou
qu'ils sont endommagés. système peut se produire.
