14
SPC-618WE User Manual

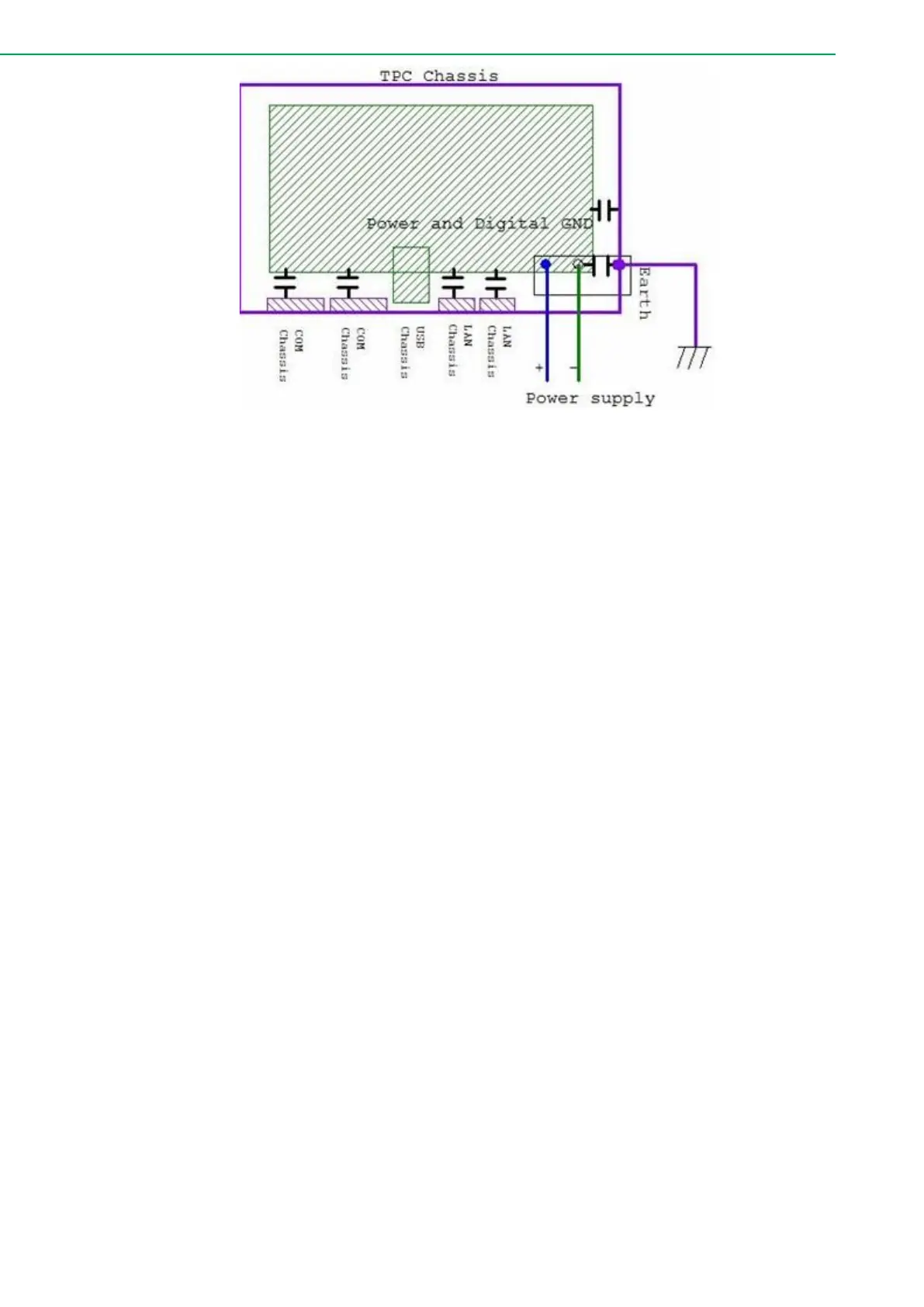

The SPC is an industrial grade product, designed to prevent external interference
and the possibility of electric shock. To complete the isolation design, we need to
consider the following:
1. The Ethernet is isolated, a LAN connection will not impact the isolation de-
sign.
2. For general USB devices, to solve EMI and ESD issues, they are designed
as a chassis and digital short. But the SPC prevents damage to USB de-
vices, ESD and EMI solutions are designed to use the Power GND as a
vent path to ensure Power GND and Chassis GND will not have potential
difference abnormalities.
3. For COM ports, since there are different COM port designs, long distance
connection causes voltage level differences between the two COM port
chassis. So the shell ground of cable must be isolated to the signal digital
ground
0.
In real cases, many customers may break the level 1 isolation by 3rd party device
or cable design, in this situation, we need to consider making all the GND short
(power GND/Digital GND/Earth GND), and ensure customers have good Earth
GND connection.
2.4 Panel Mounting
1. There is an adhesive waterproof gasket on the front bezel of the FPM dis-
play module. Make sure the waterproof gasket is in position before in-
stalling SPC into the panel opening.
2. Install the SPC into the panel opening. The suggested mounting panel
thickness is less than 6 mm (0.236 in).
