12
SPC-618WE User Manual

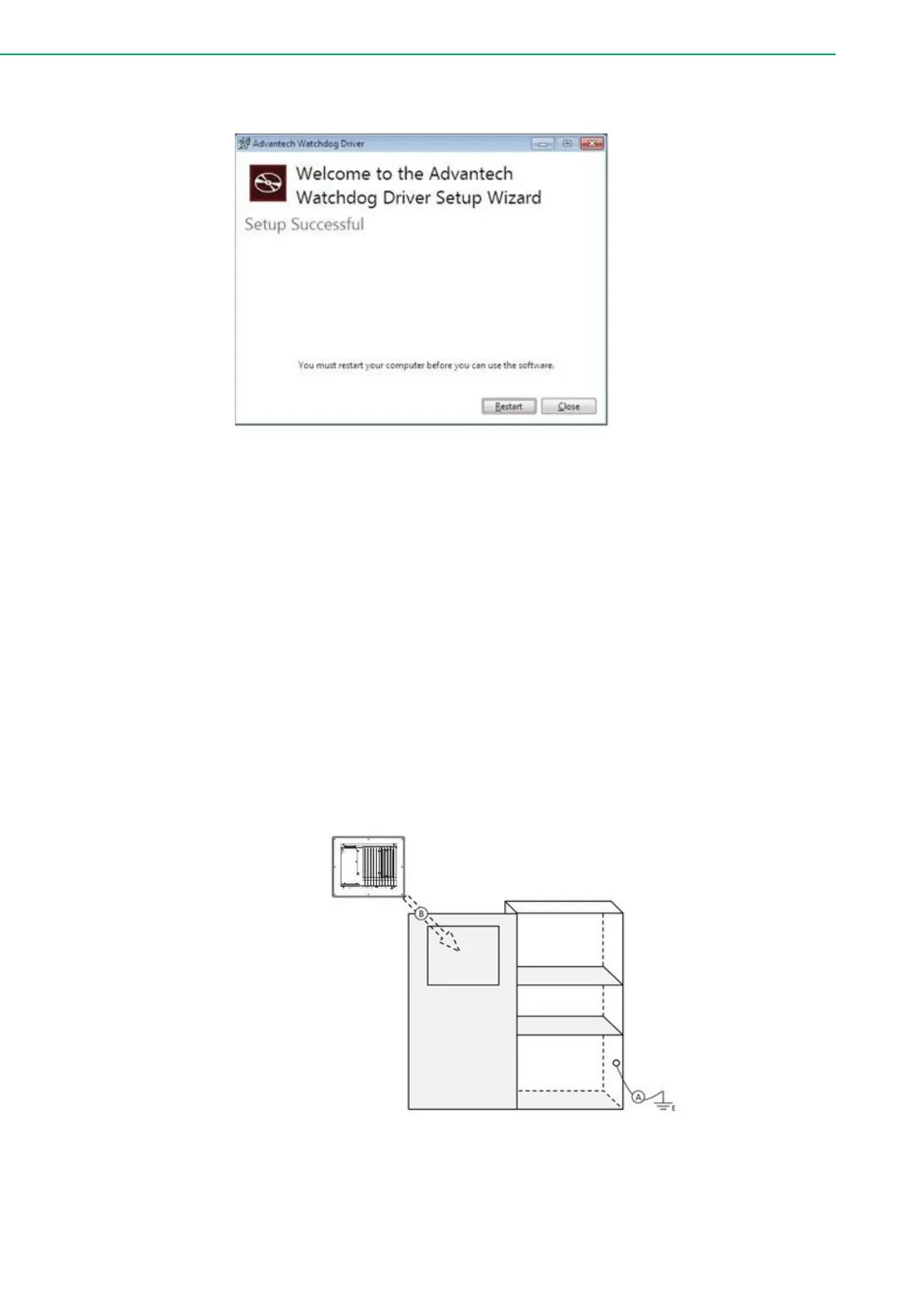

4. Click the Restart or Close button on the Advantech Watchdog Driver Setup Wiz-
ard pop-up screen to complete the setup.
0.
2.3 Cabinet Installation and Earth Grounding Setup
Follow these steps to set up the SPC-618WE system, ensuring that the Ground
pin of the SPC-618WE system is properly connected to the earth ground. This
connection is crucial for optimizing the performance of the SPC-618WE system,
including enhanced EMI immunity, ESD immunity, surge immunity, and system
isolation. If the SPC-618WE system is embedded in a cabinet, make sure to con-
nect the SPC-618WE system's ground, the cabinet's ground, and the earth
ground together.
2.3.1 Installing SPC into Cabinet.
1. Connect the cabinet to earth ground.
2. Embed null SPC-618WE system into the cabinet without any I/O cable and
power.
0.
Figure 2.3 Cabinet Installation
