27 SOM-DB5800 A2 User Manual
Chapter 1 General Information
1.3.4.2 SOM-EA20 on SOM-DB5720 PEG Slot

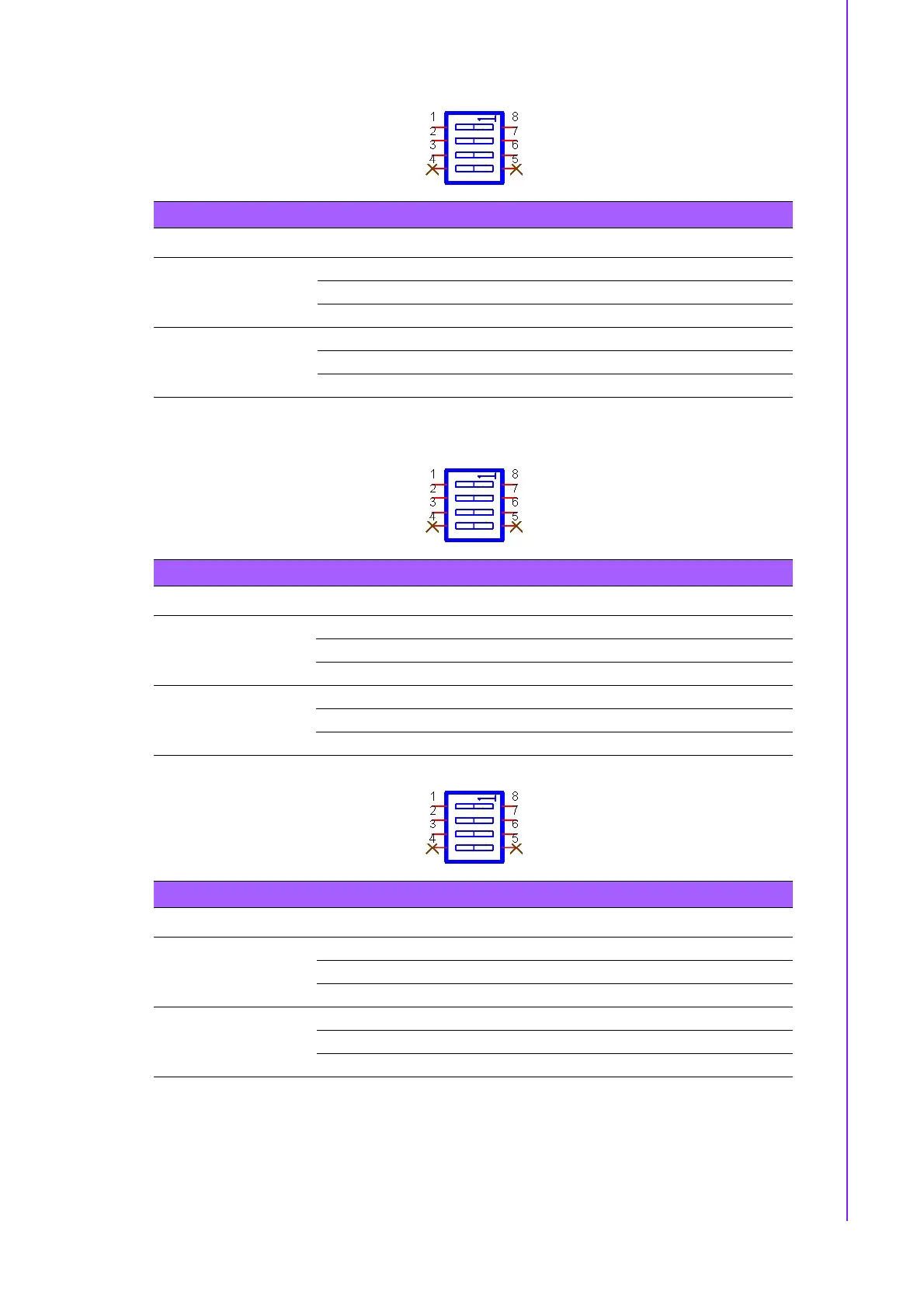

Table 1.40: SW13 ~ SW17: DDI3 DisplayPort D / HDMI Port D Switch
Function Dip Switch 1-8 2-7 3-6 4-5
DDI3 DisplayPort D
SW13 OFF ON ON OFF
SW14,SW16 OFF OFF OFF OFF
SW15,SW17 ON ON ON ON
DDI3 HDMI Port D
SW13 ON OFF OFF ON
SW14,SW16 ON ON ON ON
SW15,SW17 OFF OFF OFF OFF
Table 1.41: SW1 ~ SW5: DDI1 DisplayPort B / HDMI Port B Switch
Function Dip Switch 1-8 2-7 3-6 4-5
DDI1 DisplayPort B
SW1,SW3,SW5 OFF OFF OFF OFF
SW2 OFF OFF ON ON
SW4,SW6 ON ON ON ON
DDI1 HDMI Port B
SW1 OFF OFF ON ON
SW3,SW5 ON ON ON ON
SW2,SW4,SW6 OFF OFF OFF OFF
Table 1.42: SW7 ~ SW12: DDI2 DisplayPort C / HDMI Port C Switch
Function Dip Switch 1-8 2-7 3-6 4-5
DDI2 DisplayPort C
SW7,SW9,SW11 OFF OFF OFF OFF
SW8 ON ON - -
SW10,SW12 ON ON ON ON
DDI2 HDMI Port C
SW7 OFF OFF ON ON
SW9,SW11 ON ON ON ON
SW8,SW10,SW12 OFF OFF OFF OFF
