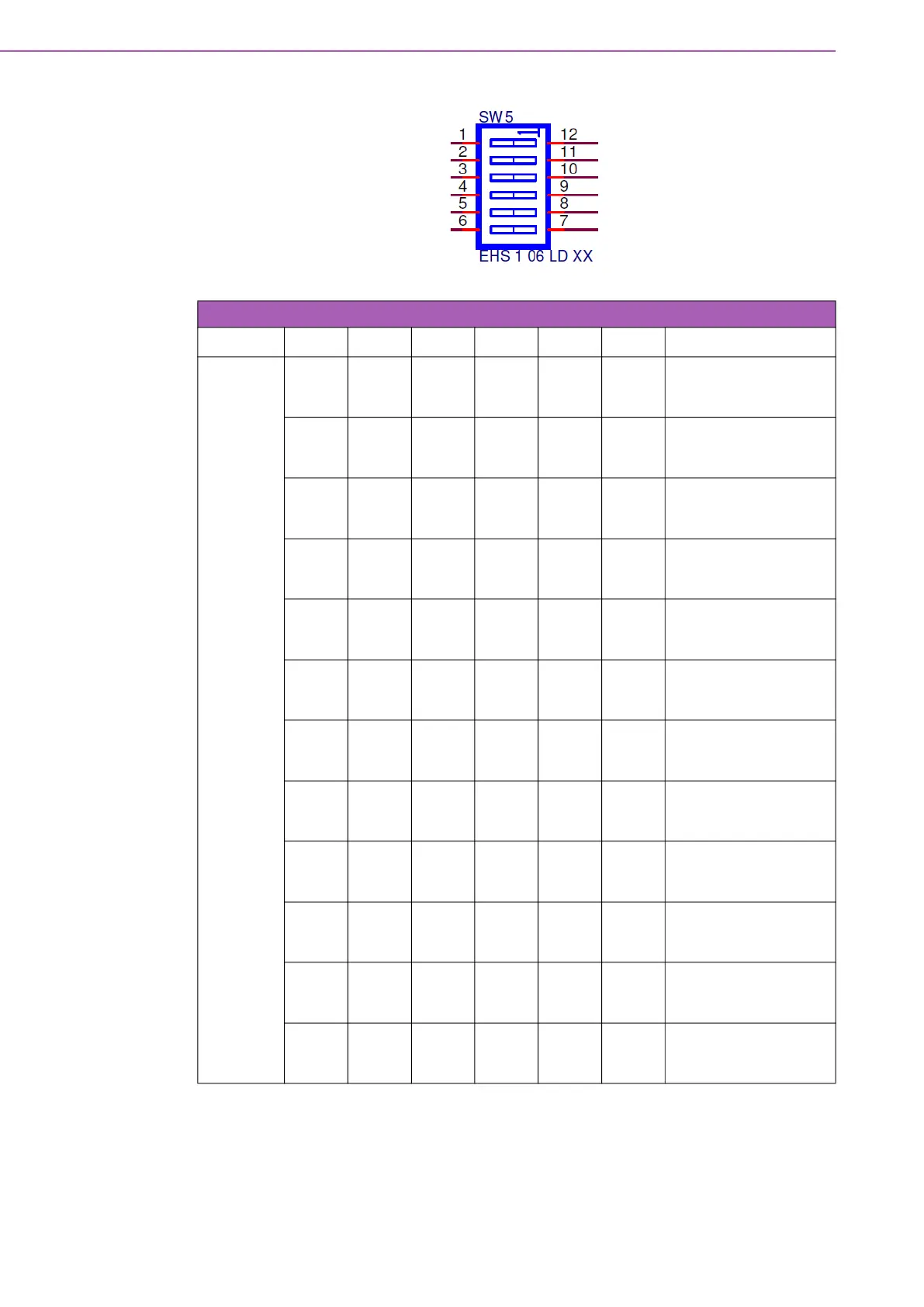

SOM-DB2510 User Manual 20
Table 3.6: SW5 LAN CONN LED Pull High Switches
Dip Switch 1-12 2-11 3-10 4-9 5-8 6-7 Function
SW5
ON --- --- --- --- ---
Enable
LAN0_ACT#_3.3 pull
high
OFF --- --- --- --- ---
Disable
LAN0_ACT#_3.3 pull
high [Default]
--- ON --- --- --- ---
Enable
LAN0_LINK100#_3.3
pull high
--- OFF --- --- --- ---
Disable
LAN0_LINK100#_3.3
pull high [Default]
--- --- ON --- --- ---
Enable
LAN0_LINK1000#_3.3
pull high
--- --- OFF --- --- ---
Disable
LAN0_LINK1000#_3.3
pull high [Default]
--- --- --- ON --- ---
Enable
LAN1_ACT#_3.3 pull
high
--- --- --- OFF --- ---
Disable
LAN1_ACT#_3.3 pull
high [Default]
--- --- --- --- ON ---
Enable
LAN1_LINK100#_3.3
pull high
--- --- --- --- OFF ---
Disable
LAN1_LINK100#_3.3
pull high [Default]
--- --- --- --- --- ON
Enable
LAN1_LINK1000#_3.3
pull high
--- --- --- --- --- OFF
Disable
LAN1_LINK1000#_3.3
pull high [Default]
