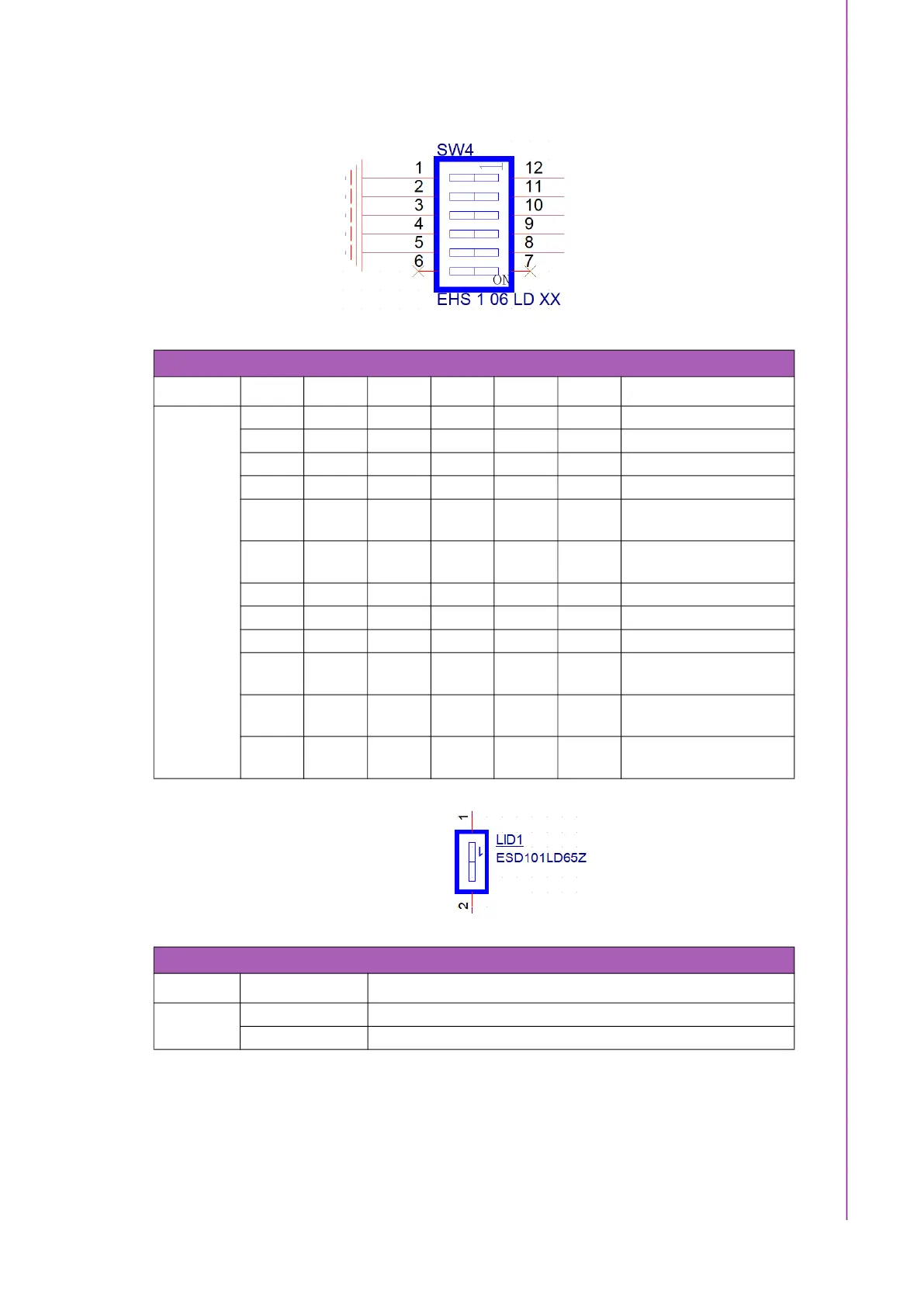

19 SOM-DB2510 User Manual
Chapter 3 Connectors and Jumper Settings
3.1.10 Switch Settings
Table 3.4: SW4 Boot Select/Force Recovery/Test Switches
Dip Switch 1-12 2-11 3-10 4-9 5-8 6-7 Function
SW4
ON ON ON --- --- NC Carrier SATA
OFF ON ON --- --- NC Carrier SD Card
ON OFF ON --- --- NC Carrier eSPI(CS0#)
OFF OFF ON --- --- NC Carrier SPI(CS0#)
ON ON OFF --- --- NC
Module Device (NAND,
NOR)-vendor specific
OFF ON OFF --- --- NC
Remote Boot (GBE,
Serial)--vendor specific
ON OFF OFF --- --- NC Module eMMC Flash
OFF OFF OFF --- --- NC Module SPI [Default]
--- --- --- ON --- NC Force Recovery Enable
--- --- --- OFF --- NC
Force Recovery Dis-
able [Default]
--- --- --- --- ON NC
Specific Test Function
Enable
--- --- --- --- OFF NC
Specific Test Function
Disable [Default]
Table 3.5: LID1 LID Button Enable/Disable Switches
Dip Switch 1-2 Function
LID1
ON LID# Enable
OFF LID# Disable [Default]
