SOM-A350 User Manual 6
– Even, odd, or no parity bit selectable
– 1, 1.5, or 2 stop bit selectable
– Baud rate up to 115.2K
TPM
Supports TPM 2.0 module by default.
Smart Fan
Supports 1x
Fan
PWM control signals and 1x tachometer input for fan speed
detection.
Provides
1 on module with connector and the other to the carrier
board following PICMG COM-HPC Carrier Design Guide R1.2 specifications.
BIOS
The BIOS chip is on module by default. Users can place BIOS chip on the car-
rier board with appropriate design and jumper setting in BSEL#[2:0].
Note: If system COMS is cleared, Advantech strongly suggests going to the BIOS
setup menu and loading default settings on the first boot up.

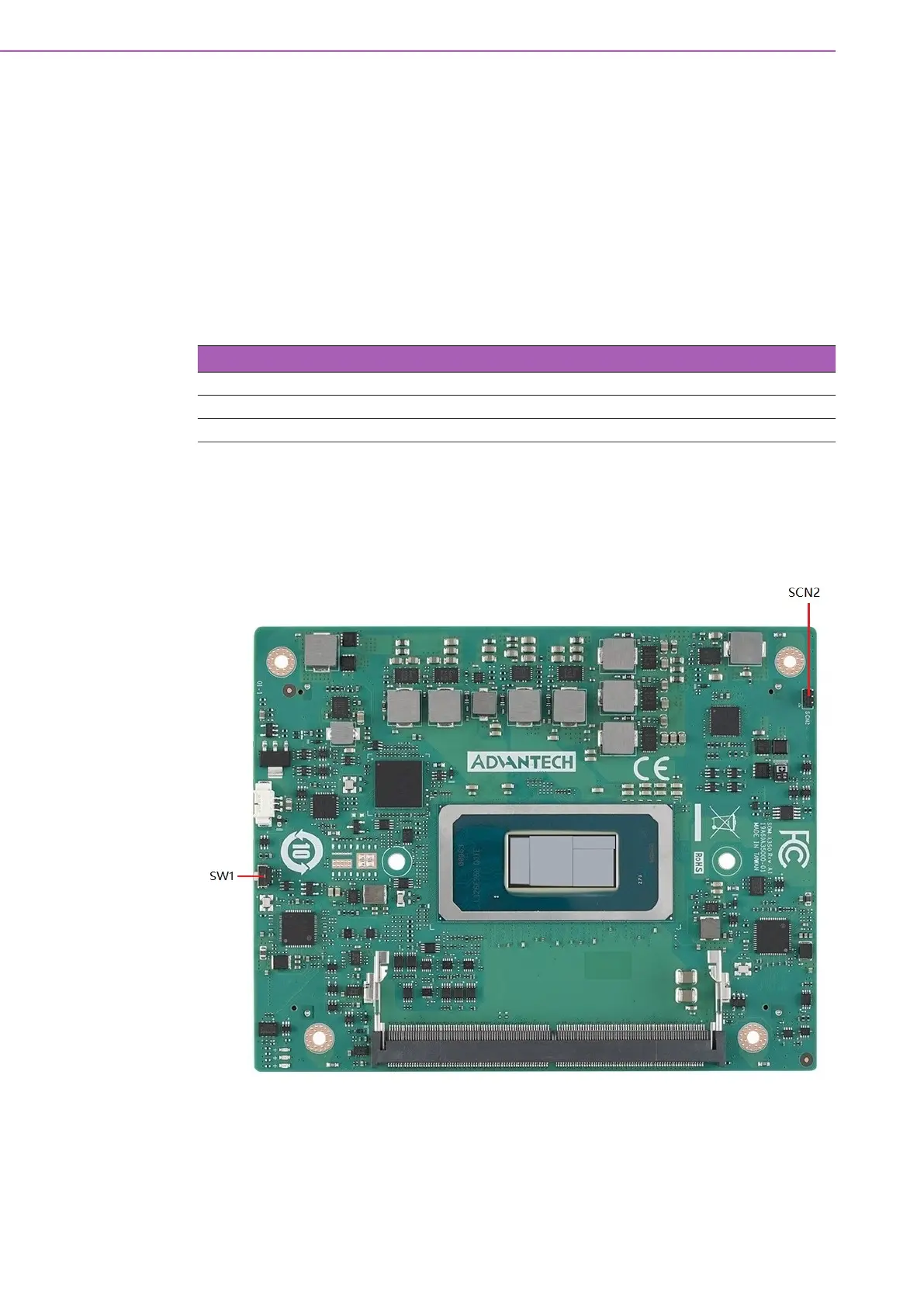

The standard module has no jumper at SCN2, so BIOS settings are kept without an
RTC coin battery. If requiring to restore the BIOS to default settings, follow the steps
below:
Table 1.7: BIOS
BSEL #2 BSEL #1 BSEL S#0 Boot up destination/function
NA NA Open Boot from Module’s SPI BIOS
NA NA GND Boot from Carrier SPI BIOS
1. Remove the coin battery.
2. Push button on SW1.
3. Turn on power supply.
4. The system will boot up a few times.
5. The BIOS will load default settings successfully.
