9 RSB-4710 User Manual
Chapter 2 Hardware Installation

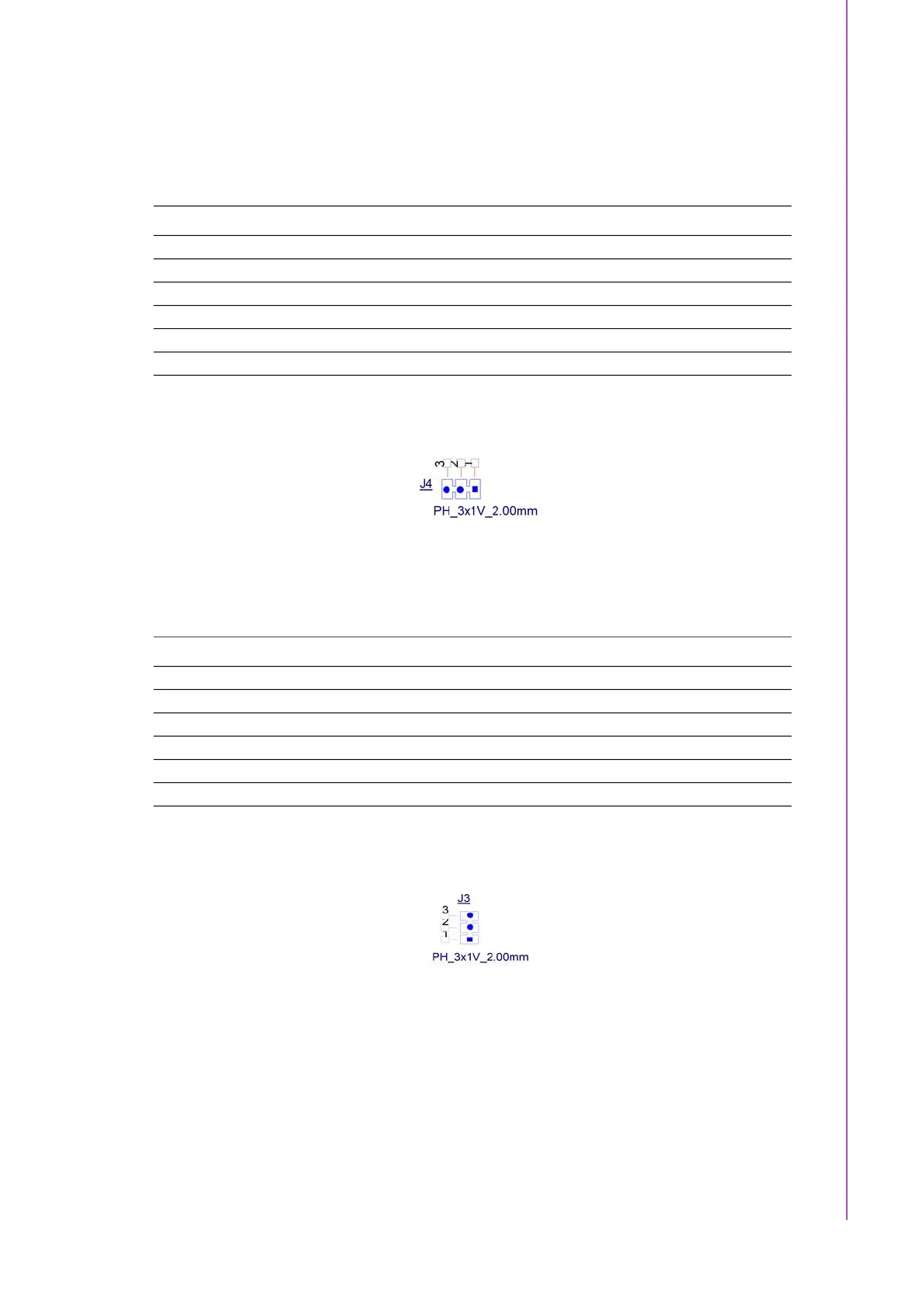

2.3.3 Jumper Settings
2.3.3.1 J4
RSB-4710 COM2 can be used as RS-232 or a debug port via J4 selection.
This pin header is designed for selecting the COM port and debug mode.
2.3.3.2 J3
RSB-4710 supports 12/5V power supply via COM5 and COM6. The power level can
be selected via J3.
This pin header is designed for COM5 and COM6 power selection.
J4 UART2 used for COM port and debug mode select
Part Number 1653003101
Footprint HD_3x1P_79_D
Description Pin header 3 x 1P 2.0 mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2) Debug port
(2-3) RS232
J3 COM5 and COM6 power 12/5V level select
Part number 1653003101
Footprint HD_3x1P_79_D
Description Pin header 3 x 1P 2.0 mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2) 5V
(2-3) 12V
