RSB-4710 User Manual 8
2.3 Jumpers
2.3.1 Jumper Description
Cards can configured by setting jumpers. A jumper is a metal bridge used to close an
electric circuit. It consists of two metal pins and a small metal clip (often protected by
a plastic cover) that slides over the pins to connect them. To close a jumper, connect
the pins with the clip. To open a jumper, remove the clip. Sometimes a jumper will
have three pins labeled 1, 2, and 3. In such cases, connect either pins 1 and 2 or pins
2 and 3.

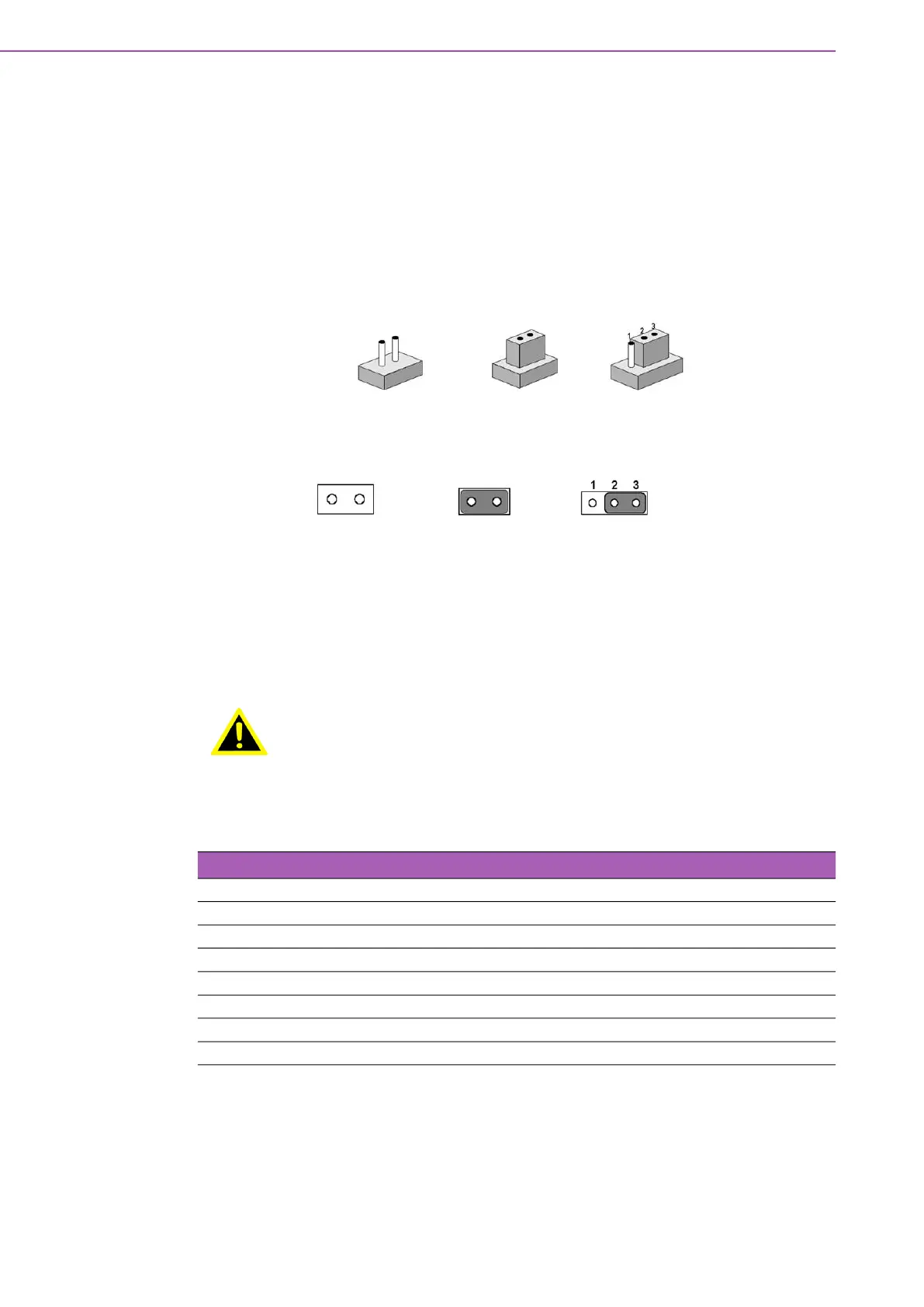

The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before making any changes. Generally, only a
standard cable is required to make most connections.
2.3.2 Jumper List
Warning! To avoid damaging the computer, always turn off the power supply
before setting jumpers.
Table 2.1: Jumper List
J4 COM2 RS-232 and debug mode select, default debug mode
J3 COM3,COM4 power 12/5V level select, default 5V
J1 COM5, COM6 impedance select, default off
SW1 AT & ATX Mode Switch, default AT mode
VDD3 LVDS VDD 3.3V &5V level select, default 3.3V
BLP1 LVDS BKL PWR 3.3V&5V level select, default off
BLP2 LVDS BKL PWR 12V select, default 12V
VDD1 EDP VDD 3.3V &5V level select, default 3.3V
