41 RSB-4220 User Manual
Chapter 3 Software Functionality
3.5.3 Boot From Onboard Flash
If you already have a Linux system SD card, follow the instructions below to copy the
content to onboard flash and then boot from onboard flash. Advantech has provided
the script “mkinand-linux.sh” to speed up the process of installing a system image
onto onboard flash.
1. Refer to Section 3.5.2 to set up a Linux system SD card.
2. Insert this Linux system SD card into RSB-4220 and connect the serial console.
3. On the RSB-4220 platform, type #root (Login)
4. On the RSB-4220 platform, type #cd /mk_inand
5. On the RSB-4220 platform, type #./mkinand-linux.sh /dev/mmcblk1
6. Power off the system and remove the SD card.
Now you can boot from onboard flash without an SD card.
3.6 Debug Message
RSB-4220 can be connected to a host PC (Linux or Windows) via a console cable
and debug port adapter. To communicate with a host PC, a serial communication pro-
gram, such as HyperTerminal, Tera Term, or PuTTY, is required. Instructions for set-
ting up a serial console, “HyperTerminal”, on a Windows host PC are provided below.
1. Connect RSB-4220 to your Windows host PC using a serial cable, debug port
adapter, and console cable.
2. Open HyperTerminal on your Windows host PC and configure the settings to the
values shown in Figure 3.5.
3. Power up the board. A bootloader prompt will be displayed on the terminal
screen.

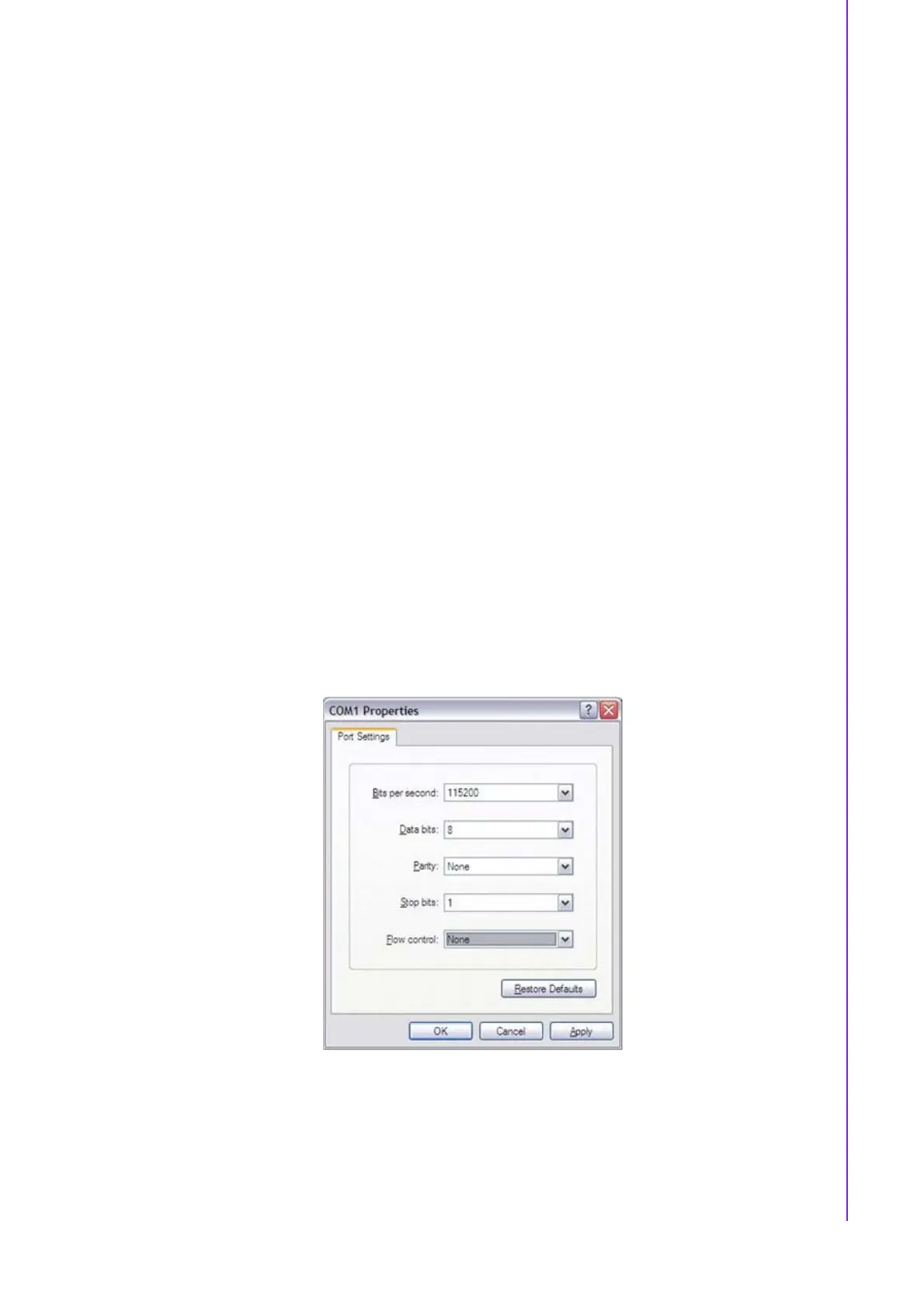

Figure 3.3 HyperTerminal Settings for Serial Console Setup
