RSB-3810 User Manual
24

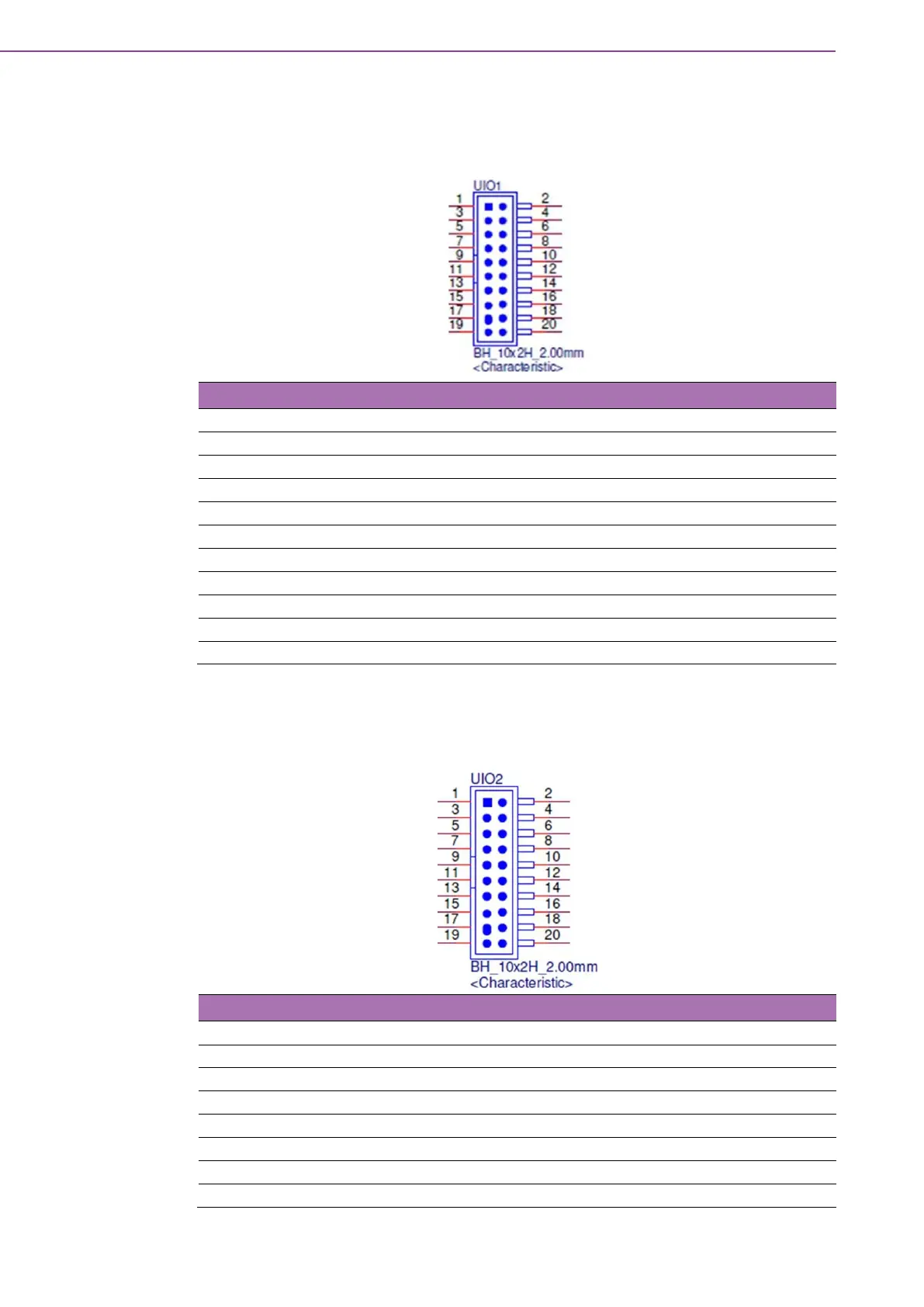

2.4.2.19 UIO1 (UIO40-Express Pin Header 1)
RSB-3810 supports I/O extension via UIO40-Express standard. The UIO1 connector
pinout is demonstrated below:
Table 2.24: UIO1 (UIO40-Express Pin Header 1)
Pin
Pin Name
Pin
Pin Name
1
5V_USB
2
GND
3
USB1_UIO_D-
4
USB2_UIO_D+
5
USB1_UIO_D+
6
USB2_UIO_D-
7
GND
8
5V_USB
9
USB_HUB2_SSTX-
10
UIO_GPIO2
11
USB_HUB2_SSTX+
12
UIO_GPIO4
13
5V_USB
14
GND
15
USB_HUB2_D-
16
USB_HUB2_SSRX+
17
USB_HUB2_D+
18
USB_HUB2_SSRX-
19
GND
20
5V_USB
2.4.2.20 UIO2 (UIO40-Express Pin Header 2)
RSB-3810 supports I/O extension via UIO40-Express standards. The UIO2 connec-
tor pinout is demonstrated below:
Table 2.25: UIO2 (UIO40-Express Pin Header 2)
Pin
Pin Name
Pin
Pin Name
1
5V
2
GND
3
COM3_TXD
4
COM1_TXD
5
COM3_RXD
6
COM1_RXD
7
UIO_GPIO5
8
UIO_GPIO6
9
UIO_GPIO7
10
UIO_GPIO8
11
UIO_GPIO9
12
UIO_GPIO10
13
UIO_GPIO11
14
UIO_GPIO12
