RSB-3810 User Manual
10

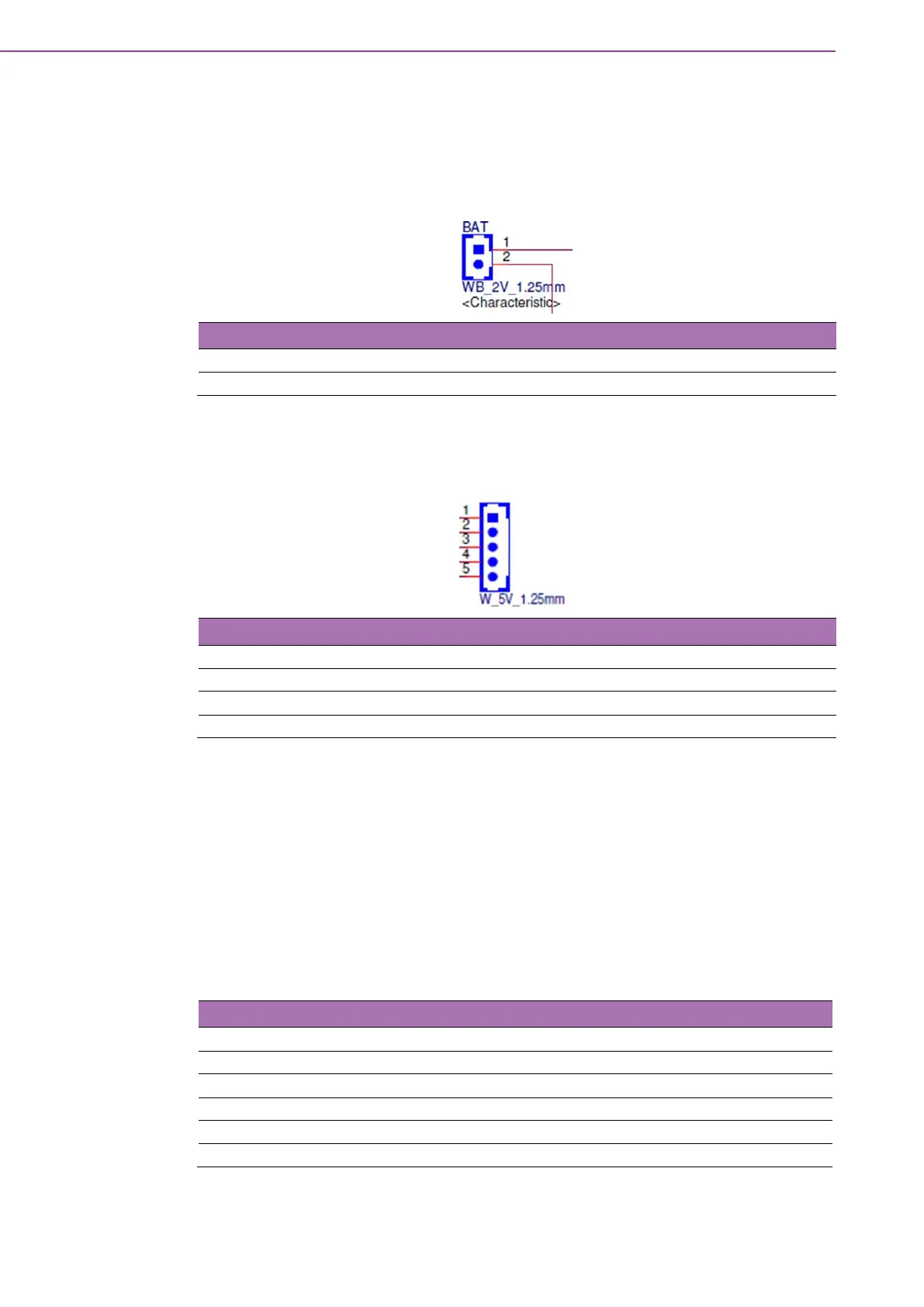

2.4.2 Connector Settings
2.4.2.1 BAT (RTC Battery CONN.)
RSB-3810 supports one 2-pin type connector for the RTC Battery. The connector
pins are defined below.
Table 2.5: BAT (RTC Battery CONN.)
Pin
Pin Name
Pin
Pin Name
1
+COIN_RTC
2
GND
2.4.2.2 BL0(LVDS Backlight 0)
RSB-3810 supports 1 LVDS Backlight CONN. for each channel. The pin definition for
the 1st channel is demonstrated below:
Table 2.6: BL1 (LVDS Backlight 1)
Pin
Pin Name
Pin
Pin Name
1
+12V
2
GND
3
LCD_BKLT_EN
4
LCD_BKLT_PWM
5
+5V
-
-
2.4.2.3 COM1
RSB-3810 supports 1 LVDS Backlight CONN. for each channel. The pin definition for
the 2nd channel is demonstrated below:
Table 2.7: COM1 (Debug Console + RS232/RS485
Pin
Pin Name
Pin
Pin Name
1
COM2_DCD
2
COM0_RXD
3
COM2_RXD
4
COM2_RTS
5
COM2_TXD
6
COM2_CTS
7
COM2_DTR
8
COM0_TXD
9
GND
10
GND
