RSB-3810 User Manual

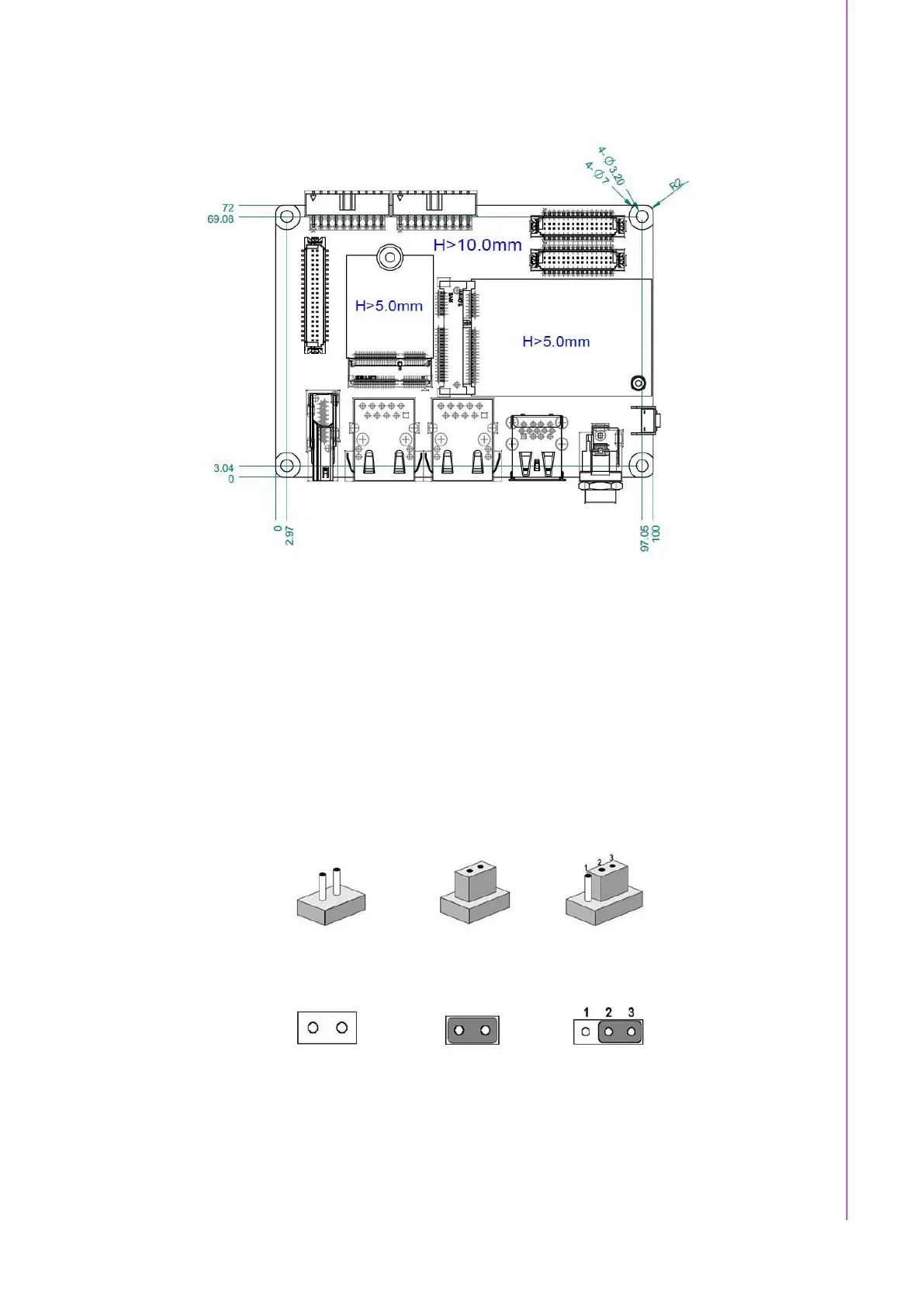

2.2 Board Dimensions
Figure 2.3
2.3 Jumpers
2.3.1 Jumper Description
Cards can be configured by setting jumpers. A jumper is a metal bridge used to close
an electric circuit. It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To close a jumper, con-
nect the pins with the clip. To open a jumper, remove the clip. Sometimes a jumper
will have three pins labeled 1, 2, and 3. In such cases, connect either pins 1 and 2 or
pins 2 and 3.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before making any changes. Generally, only a
standard cable is required to make most connections.
Chapter
2
Hardware
Installation
