RSB-3730 User Manual 12
2.4.2.2 RTC Battery Connector (BAT)
RSB-3730 supports a lithium 3V_210mAH CR2032 battery with wafer box.

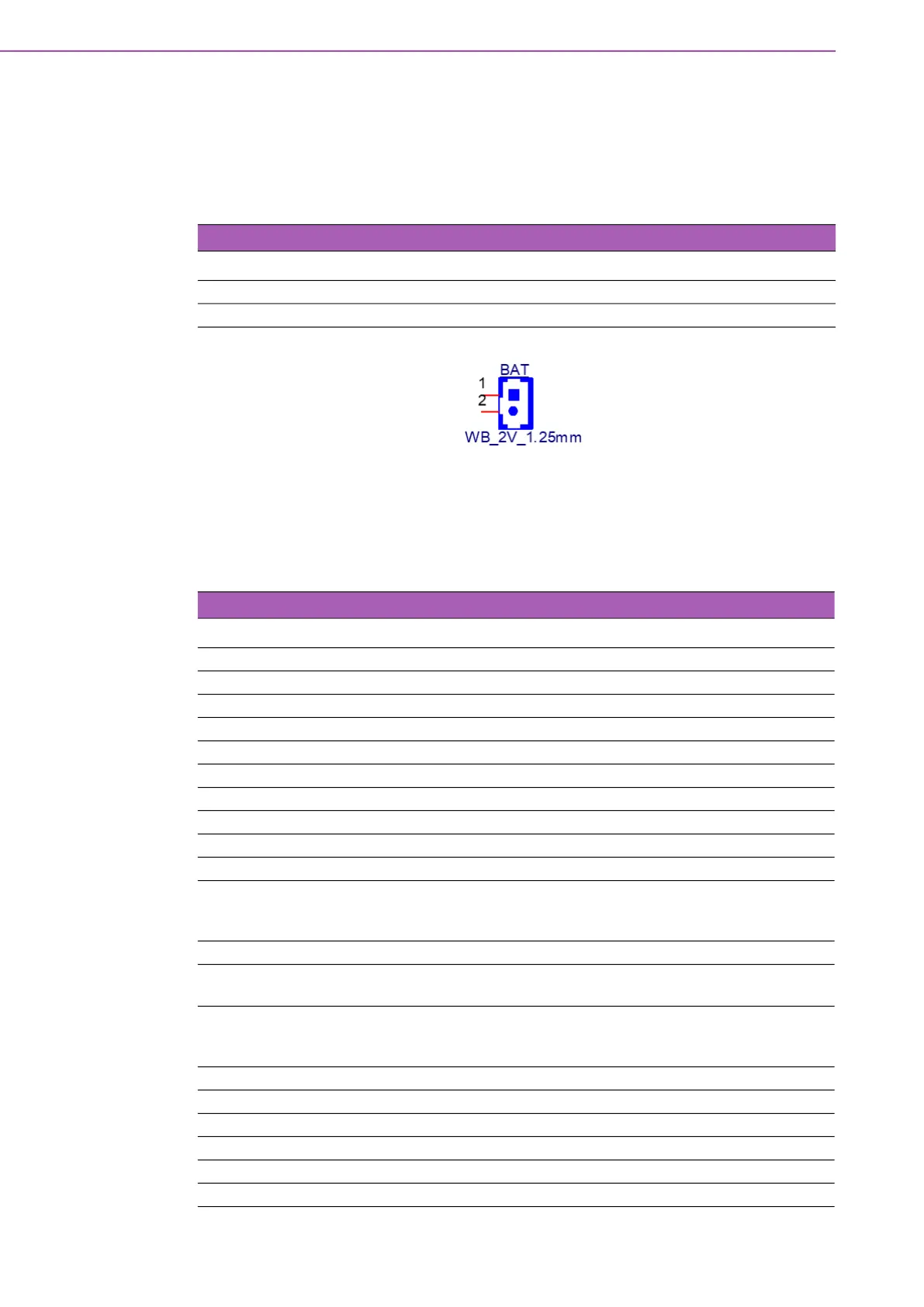

Figure 2.3 DC RTC Battery Connector
2.4.2.3 M.2 (M2)
RSB-3730 supports the socket1 connectivity type 2230 S1&S2&S3 E-Key M.2 inter-
face. The detailed pin definitions are as shown below.
Table 2.8: RTC Battery Connector (BAT)
Pin Description
1 +COIN_RTC
2 GND
Table 2.9: M.2 (M2)
Pin Signal Name Pin Signal Name
1 GND 2 +V3.3_M2
3 USB_M2_D+ 4 +V3.3_M2
5 USB_M2_D- 6 NC
7 GND 8 NC
9 SD1_CLK 10 NC
11 SD1_CMD 12 NC
13 SD1_DATA0 14 NC
15 SD1_DATA1 16 NC
17 SD1_DATA2 18 GND
19 SD1_DATA3 20 UART1_WAKE#_3V3
21 SD1_WAKE# 22
UART1_RX_M2 (co-lay to
UIO2 COM1_RXD according
to BOM option)
23 SD1_RESET#
Mechanical
Key
Mechanical Key
Mechanical
Key
Mechanical Key
32
UART1_TX_M3 (co-lay to
UIO2 COM1_TXD according
to BOM option)
33 GND 34 UART1_CTS#_M2
35 PCIE_TXN_P 36 UART1_RTS#_M2
37 PCIE_TXN_N 38 NC
39 GND 40 NC
41 PCIE_RXN_P 42 NC
43 PCIE_RXN_N 44 NC
