11 RSB-3730 User Manual
Chapter 2 H/W Installation
2.4 Connectors
2.4.1 Connector List
2.4.2 Connector Pin Definitions
2.4.2.1 RS232/Debug Port (COM1/DEBUG2)
RSB-3730 can communicate with a host server (Windows or Linux) by using a debug
cable (Advantech number: 1700021565-11). If you need a boot select out box, you
can use the appropriate cable (Advantech number: 1700034046-01).

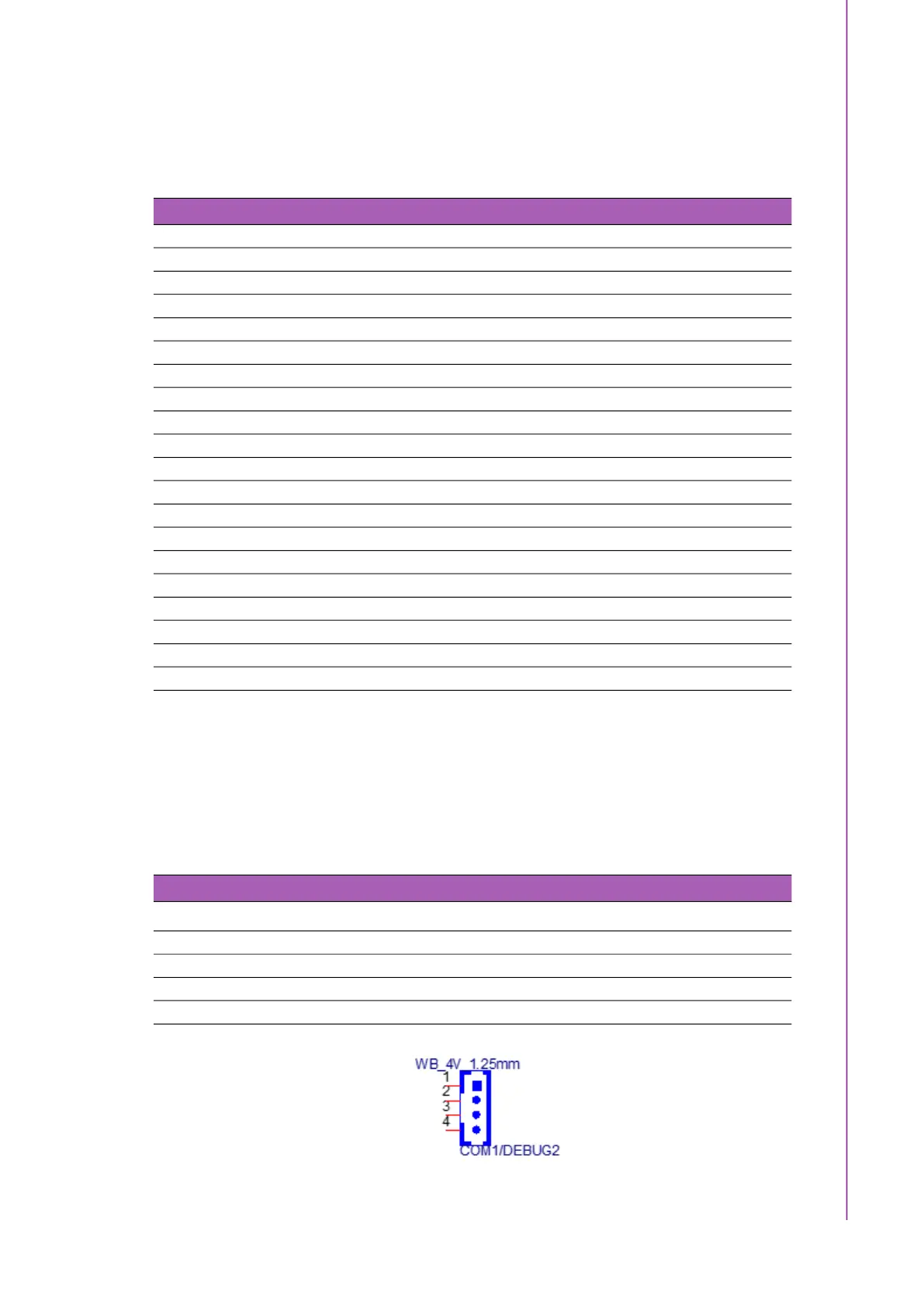

Figure 2.2 COM1/DEBUG2 Connector
Table 2.6: Connector List
COM1/DEBUG2 Debug CONN
BAT RTC CONN
M.2 M.2 CONN
LINE OUT LINE OUT CONN
MIC IN MIC IN CONN
UIO1 UIO1
UIO2 UIO2
LVDS LVDS CONN
BL LVDS Back light CONN
SD SD slot
MPCIE PCIE Express Mini Card CONN
SIM SIM slot
OTG OTG
DCIN DC-IN JACK
USB1 USB CONN
HDMI HDMI CONN
COM COM CONN
LAN1 LAN CONN
RST RST CONN
LED LED
Table 2.7: RS232/Debug Port (COM1/DEBUG2)
Pin Description
1 BOOT_SEL
2 COM2_TXD
3 COM2_RXD
4 GND
