ROM-DB7502 User Manual 14

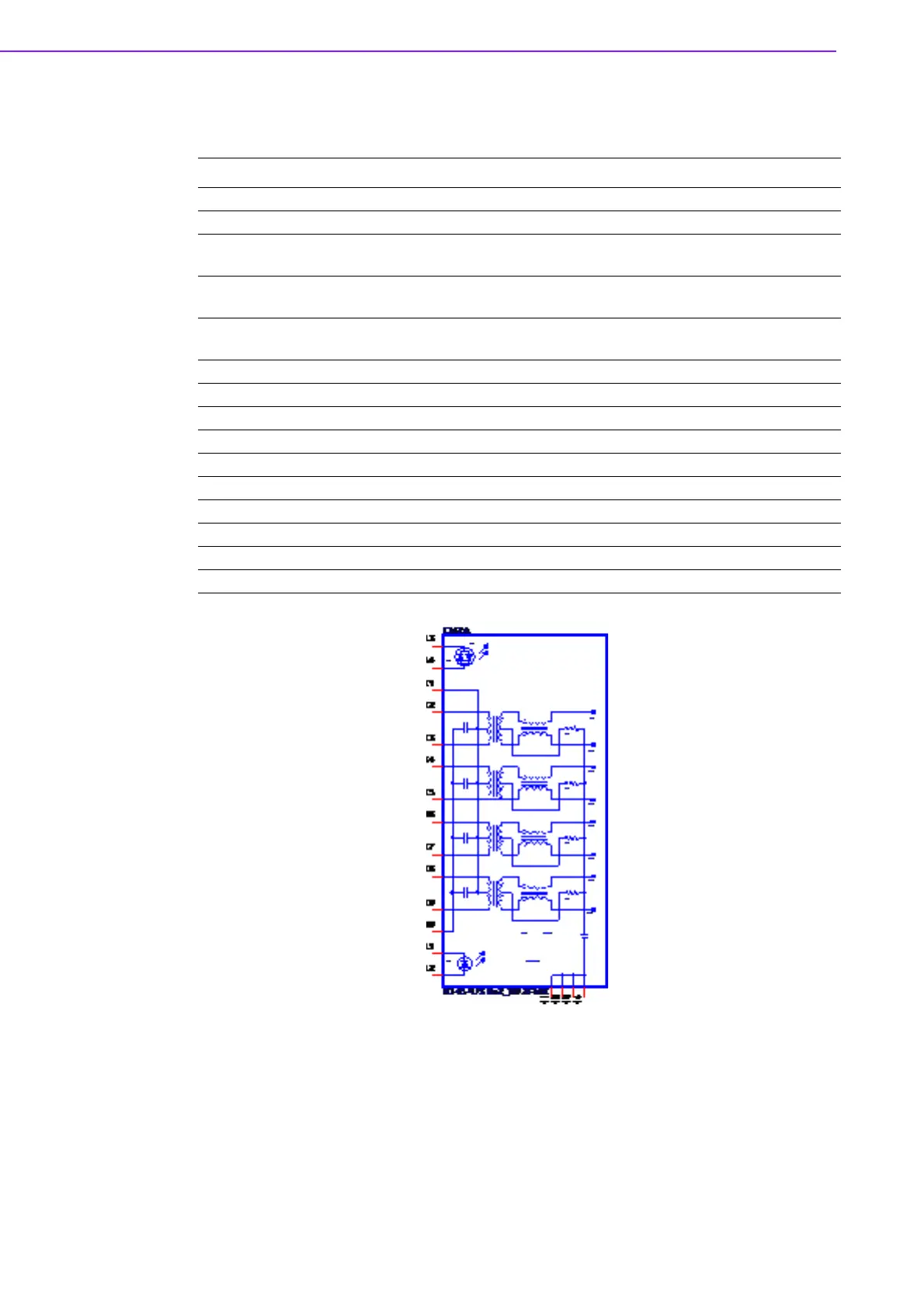

2.4.1.7 RJ45 (CN2A)
The ROM-DB7502 Evaluation Board provides an RJ45 connector with integrated
magnetics for 10/100/1000Mb Ethernet.
Pin Pin Name DESCRIPTION
L1 GBE_LINK_ACT# Ethernet controller activity indicator active low.
L2 +V3
L3 GBE_LINK1000#
Ethernet controller 1000Mbit/sec link indicator active
low.
L4 GBE_LINK100#
Ethernet controller 100Mbit/sec link indicator active
low
R1 GBE_CTREF
Reference voltage for carrier board Ethernet channel
0 magnetics center tap
R2 GBE_MDI0+ Media Dependent Interface (MDI) differential pair 0
R3 GBE_MDI0- Media Dependent Interface (MDI) differential pair 0
R4 GBE_MDI1+ Media Dependent Interface (MDI) differential pair 1
R5 GBE_MDI1- Media Dependent Interface (MDI) differential pair 1
R6 GBE_MDI2+ Media Dependent Interface (MDI) differential pair 2
R7 GBE_MDI2- Media Dependent Interface (MDI) differential pair 2
R8 GBE_MDI3+ Media Dependent Interface (MDI) differential pair 3
R9 GBE_MDI3- Media Dependent Interface (MDI) differential pair 3
R10 GND GND
H1/H2/H3/H4 GND_GBE Frame Ground
