2.3 Development Kit H/W Installation
The Figure 2.1 is ROM-7420 Evaluation Kit Assembly, and the detail descriptions and
Advantech P/N are shown below. Please refer to Figure 2.2 and double confirm there
is nothing missing from your evaluation kit.

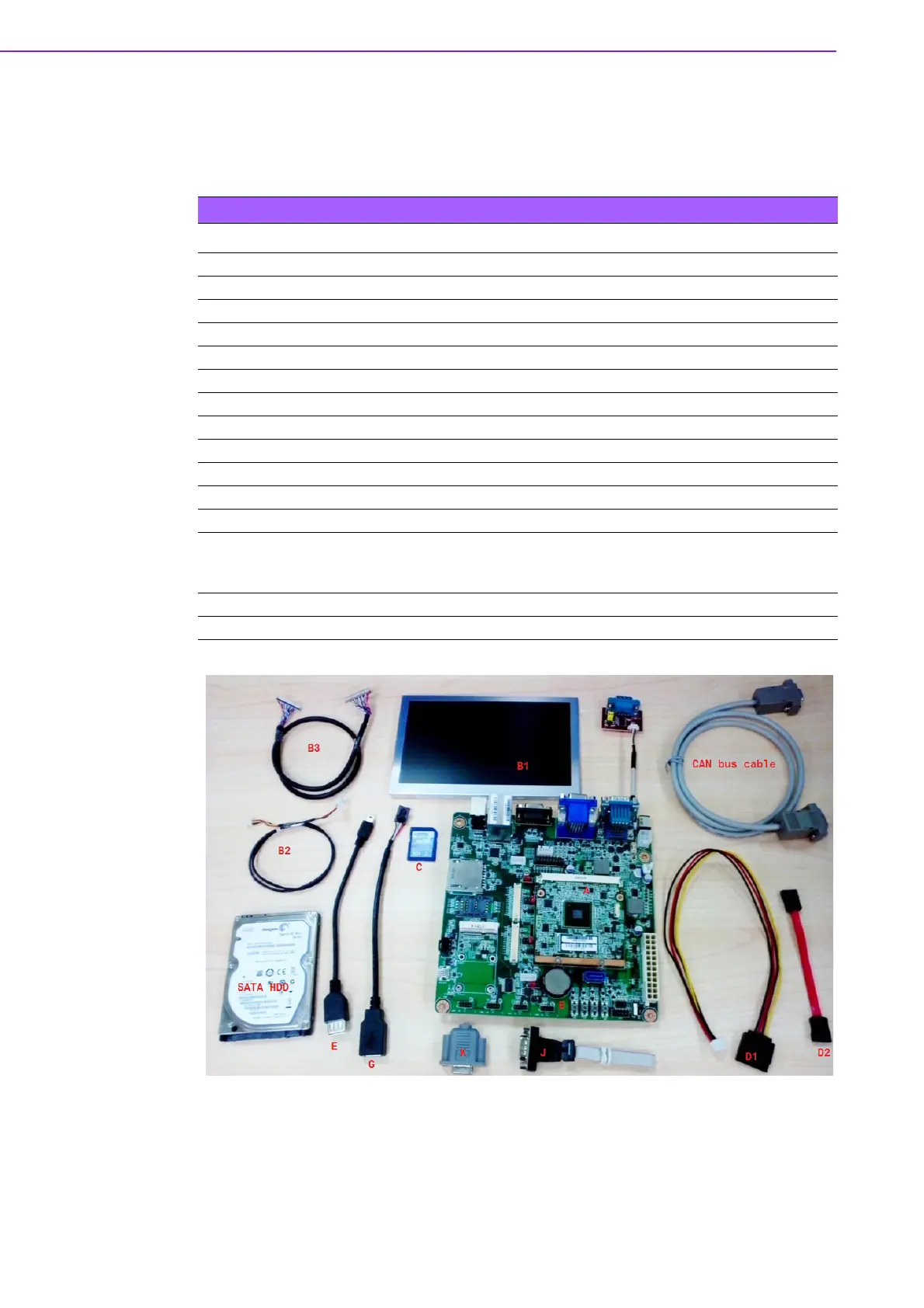

Figure 2.2 ROM-7420 Development Kit Assembly
Table 2.2: ROM-7420 Development Kit Assembly
Item Description Advantech P/N
Part-A ROM-7420 (P/N: ROM-7420CF-A78AAE)
Part-B ROM-DB7500 (P/N: ROM-DB7500-SC00E)
Part-B1 7” LCD-LED Backlight, LVDS, 800x480 (P/N: 96LEDK-A070WV40NB1)
Part-B2 LCD Backlight Cable (P/N: 1700021882-01)
Part-B3 LVDS Cable (P/N: 1700021883-01)
Part-C SQFlash SD Card, SLC 2GB, (-40~85°C) (P/N: SQF-ISDS2-2G-ETE)
Part-D1 SATA Power Cable (P/N: 1700021941-01)
Part-D2 SATA Cable (P/N: 1700004711)
Part-E Mini USB Host Cable (P/N: 1700019076)
Part-F Mini USB Client Cable (P/N: 1700019077)
Part-G USB 4 pin to Type A Cable (P/N: 1700021861-01)
Part-H ADAPTER, 100-240V, 12V, 3A. (P/N: 1757003553)
Part-I
3Pin Power Cord (USA Standard) [Optional]
3pin Power Cord (Europe standard) [Optional]
3pin Power Cord (UK standard) [Optional]
(P/N: 1700001524)
(P/N: 170203183C)
(P/N: 170203180A)
Part-J COM Port Cable (P/N: 1700100250)
Part-K RS-232 Loopback (P/N: 1654909900)
