ROM-6881 User Manual 18
2.4.2 Debug Port Settings
ROM-6881 can communicate with a host server using serial cables. Common serial
communication programs such as HyperTerminal, Tera Term, or PuTTY can be used
in this case. The example below describes the serial terminal setup using HyperTer-
minal on a Windows host:
1. Connect ROM-6881 with your PC using a serial cable.

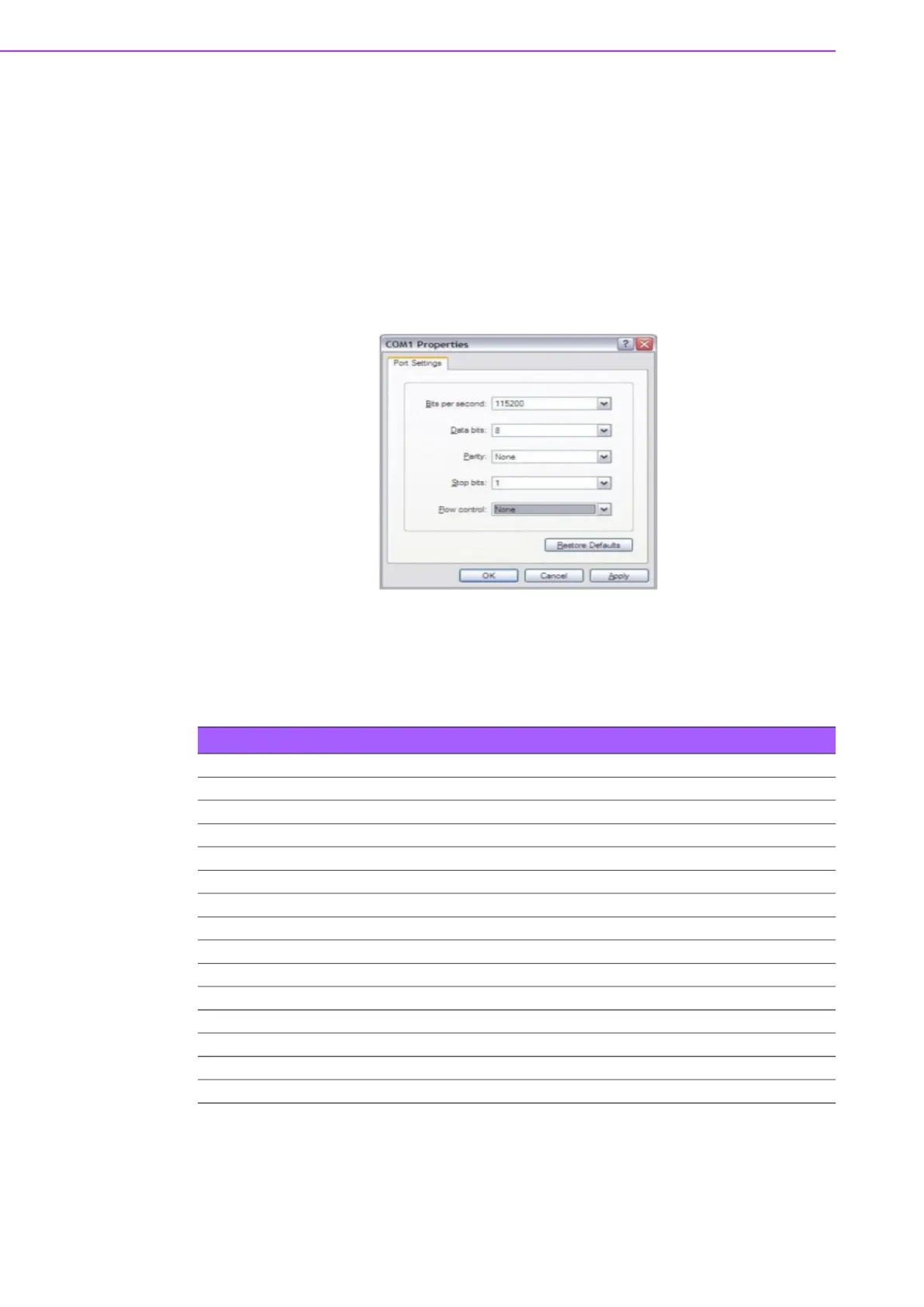

2. Open HyperTerminal on your Windows PC, and select the settings demon-
strated in the photo below.
3. Insert a power adapter into the DC jack and power up the board. The Debug
console log will be displayed on the terminal screen.
2.4.3 ROM-6881 on SOM-DB2510 Jumper, Switch Settings
When using ROM-6881 with the carrier board SOM-DB2510, please follow the below
jumper and switch settings.
Table 2.8: ROM-6881 on SOM-DB2510 Jumper/Switch List
Connector/Jumper/Switch Function
CN9 Header for GPIO Test
GPIO_0 ~ GPIO_10 GPIO Selection
CN14 For CAN Bus port0 Terminal Resistor
CN15 For CAN Bus port1 Terminal Resistor
J7/J8 LVDS0 Power Selection Header
J9 LVDS0 Inverter Power Selection Header
J11/J12 LVDS1 Power Selection Header
J13 LVDS1 Inverter Power Selection Header
J14 EDP1/LVDS1 Hot-Plug Detect Selection Header
J24/J46/J47/J48/J49 SPI Selection
J15/J16/J17/J18/J19/J20/J21 SDIO Selection
SW1/2 COM0,COM2 mode setting
SW3 I2S0_MCK setting
SW4 Mode setting
