23 PPC-6151C/6171C User Manual
Chapter 2 System Installation and Setup

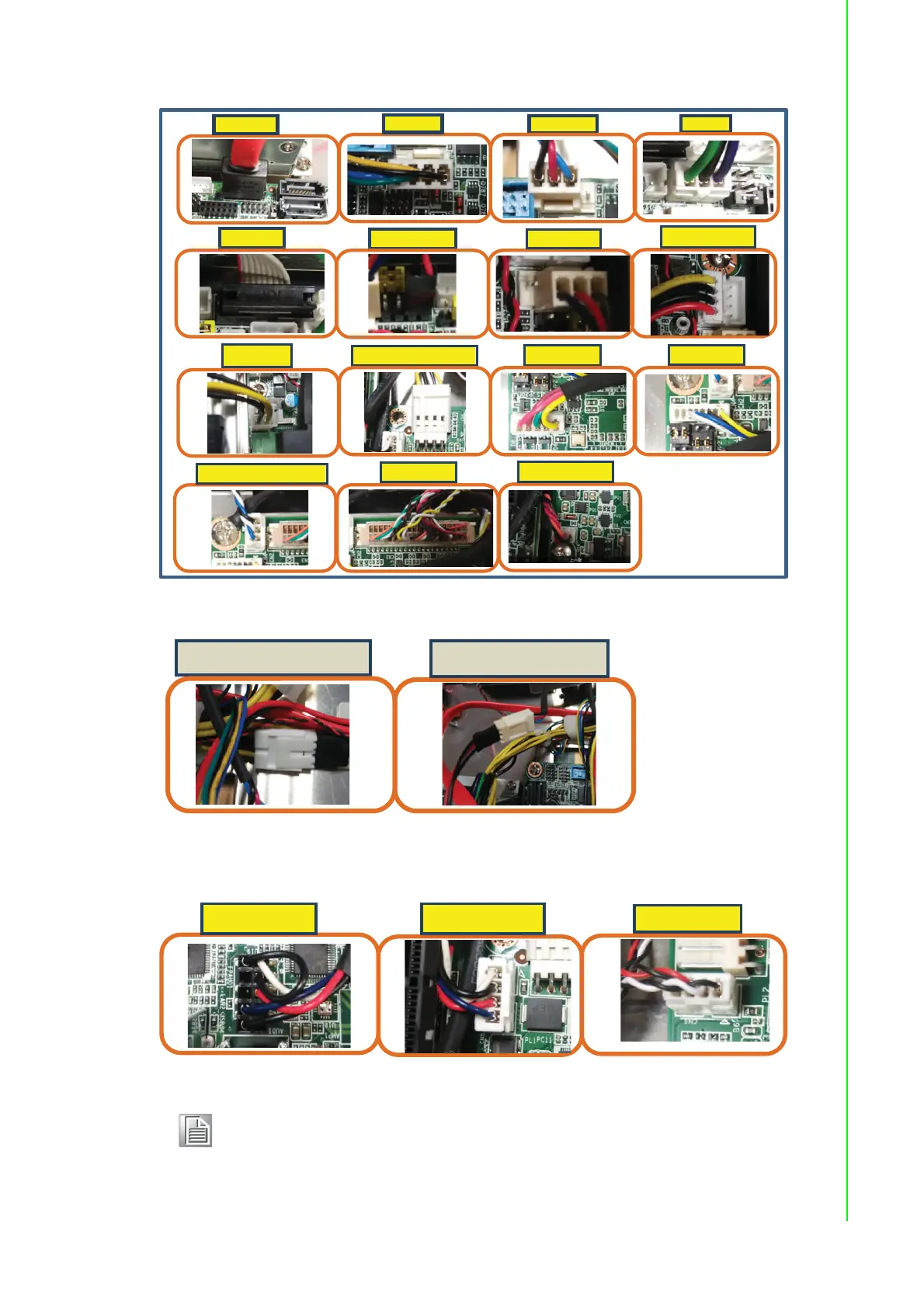

1. Connect the daughter board power cable and FAN2 cable
2. Connect the speaker cables as shown below.
Note! Please refer to the PPC-6151C/6171C selection guide when selecting
the motherboard type in order to ensure optimum performance, maxi-
mum security, and sufficient air circulation.
The cable connection is based on the motherboard specifications.
3. SYS FAN1
11. Touch cable
4. PS_ON
5. C O M2
10. Daughter board power
6. Powerbutt on
14. LVDS cable
1. HDD cable
2. CPU FAN
8. HDD Power cable
7. SYS FAN2
13. Panel light adjust cable
12. Backlight
9. 12V Power
15. Front panel LED
Daughter board power cable
connect AC power cable
SYS fan2 extensional cable
connect
Audio cable for
main board
Speaker cable
Audio cable for
daughter board
