11 PPC-612 User Manual
Chapter 2 System Installation and Setup
2.1.3 Stand Mounting

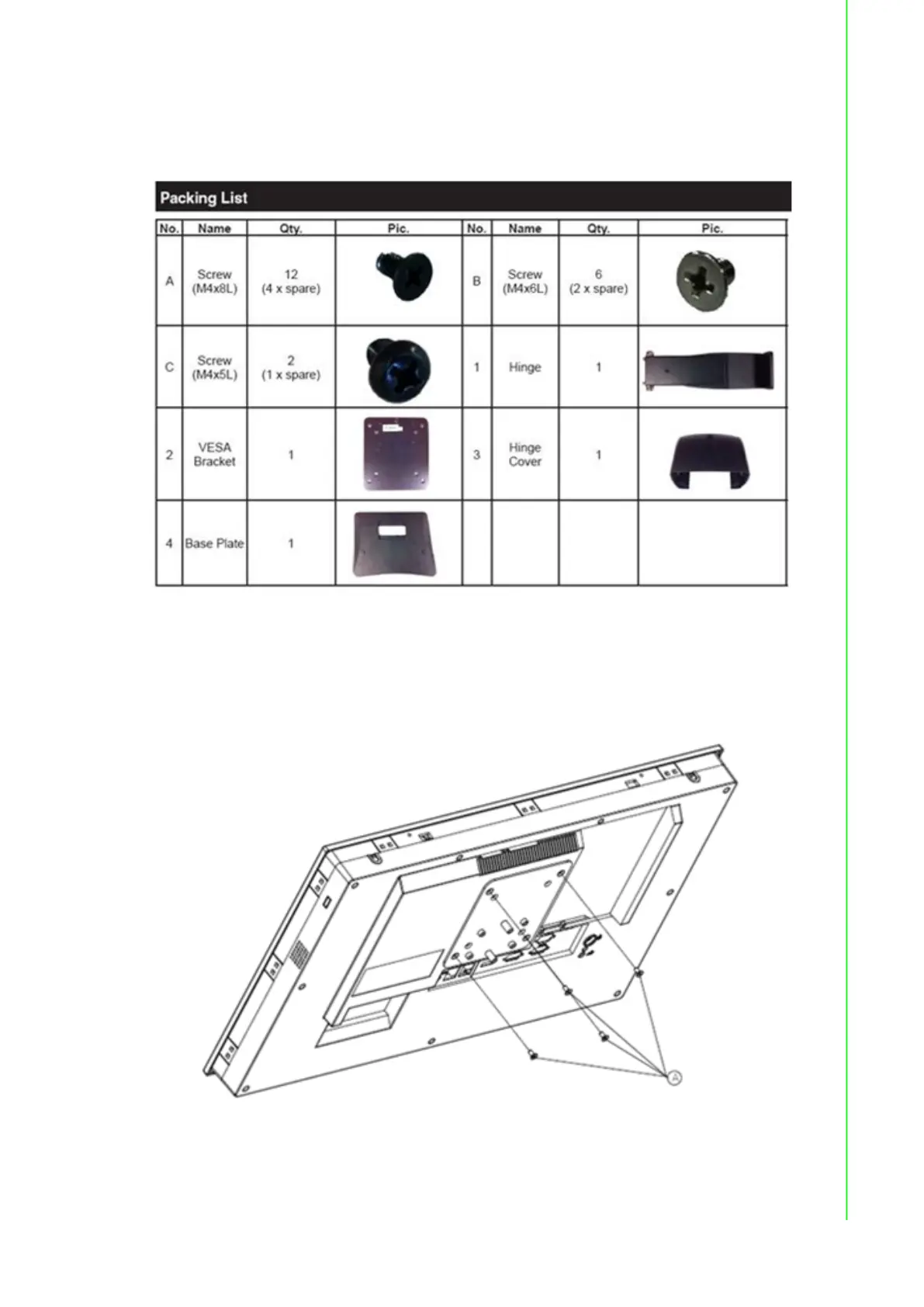

Before mounting on a stand, check that the product was shipped with the following
items:
To mount the panel PC onto the stand, follow the steps below:
1. Use four M4x8L screws to affix the VESA bracket to the panel PC. Users can
choose between a 75 x 75 mm (2.95 x 2.95 in) or 100 x 100 mm (3.93 x 3.93 in)
VESA mount according to their requirements.
Figure 2.6 VESA Mount Screw Holes
