11 PPC-412 User Manual
Chapter 2 System Installation & Setup
2.2.2 Connecting the Keyboard and Mouse
Connect the keyboard and mouse to panel PC’s I/O interfaces.
2.2.3 Power ON
The power button is located in the right bottom side of the panel PC.
2.3 Install Memory Card

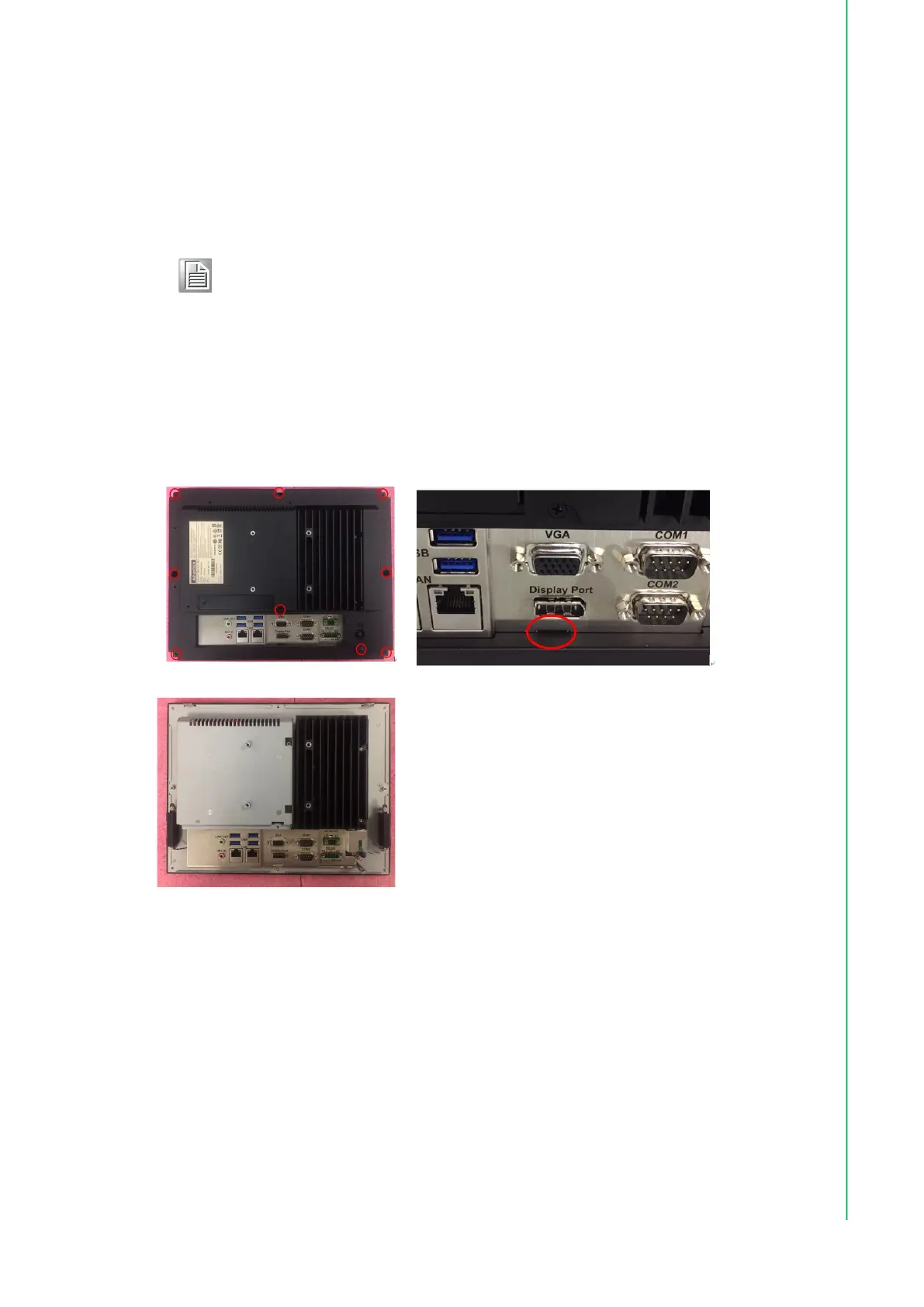

1. Loosen the screws as indicated in the red circle. (See Figure 2.5).
2. Press the red areas to pull out the hook (See Fig 2.6 ~ 2.7) and open the rear
cover.
Note! Power cable and adapter are optional.
Figure 2.5
Figure 2.6
Figure 2.7
