3 PPC-315W/318W/321W/324W-TGL User Manual
Chapter 1 General Information
1.4 Rear Panel
The PPC-315W/318W/321W/324W TGL rear panel features four VESA mount (100 x
100 mm /3.93 x 3.93 in) holes located on its bottom side, as demonstrated below:
VESA mount screws: 4 x M4 screws, screw depth: 12 mm (max.)

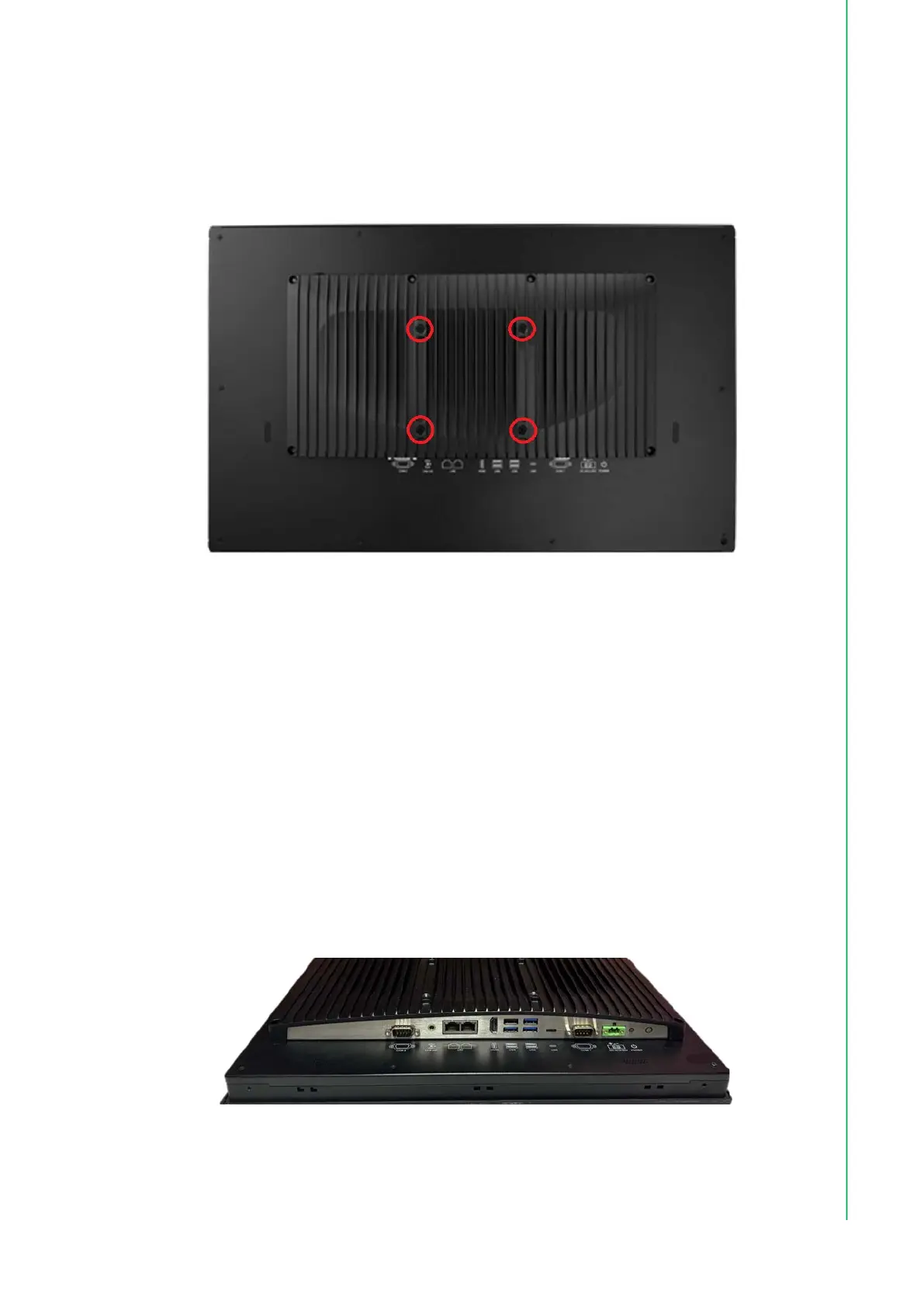

Figure 1.2 Rear Panel
1.5 Panel Bottom
The system’s I/O components, located on the bottom of the device, (Figures 1.3) are
listed below:
1 x Power input connector
1 x Power switch
1 x RS-232 connector (COM1)
1 x RS-232/422/485 connector (COM2)
2 x RJ-45 GbE
3 x USB 3.2
1 x USB 2.0
1 x Type-C (USB only)
1 x HDMI
1 x Line-out
Figure 1.3 Panel PC Bottom
