19 PPC-310/312/315/321W EHL User Manual
Chapter 2 System Installation and Setup
2.3 Mounting the System
The panel PC supports various mounting options, as listed below.
Panel mounting
VESA mounting
Cabinet mounting
2.3.1 Panel Mounting
To mount the flat bezel panel PC into a panel, follow the steps below.
1. Prepare a panel cutout according to the Panel PC dimensions. Panel cutout
dimensions:
PPC-310: 265 x 210 mm/10.43 x 8.27 in
PPC-312: 311 x 240 mm/12.24 x 9.45 in
PPC-315: 382 x 303 mm/15.04 x 11.93 in
PPC-321W: 550 x 342 mm/21.65 x 13.46 in
2. Insert the panel PC into the cutout. Retrieve the hook brackets and M6 x 21L
screws from the accessory box (8 for PPC-310/312; 10 for PPC-315, and 12 for
PPC-321W).
Veuillez installer le panneau PC dans la découpe. Récupérez les crochets et les
vis M6 x 21L de la boîte à accessoires.

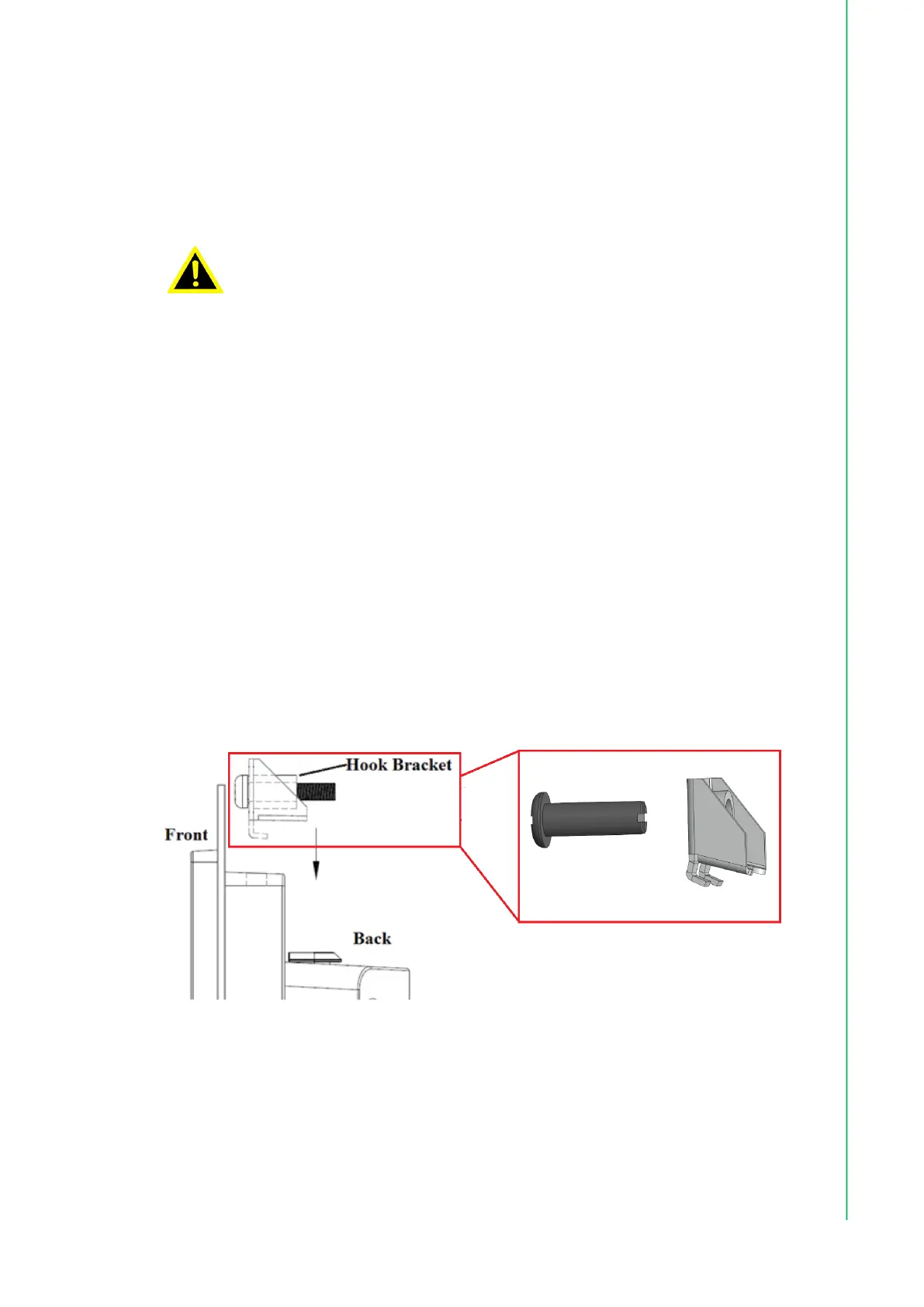

Figure 2.18 Hook Brackets for Panel Mounting
Warning! When mounting the panel PC, more than one person should perform the
installation to prevent accidental damage to the panel or personal injury.
Le comité constate qu’el-nasr “ mounting, Plus d’une personne installa-
tion to prevent the cadre accidental damage to the personal injury.
