7 PCM-9563 User Manual
Chapter 2 Hardware Installation

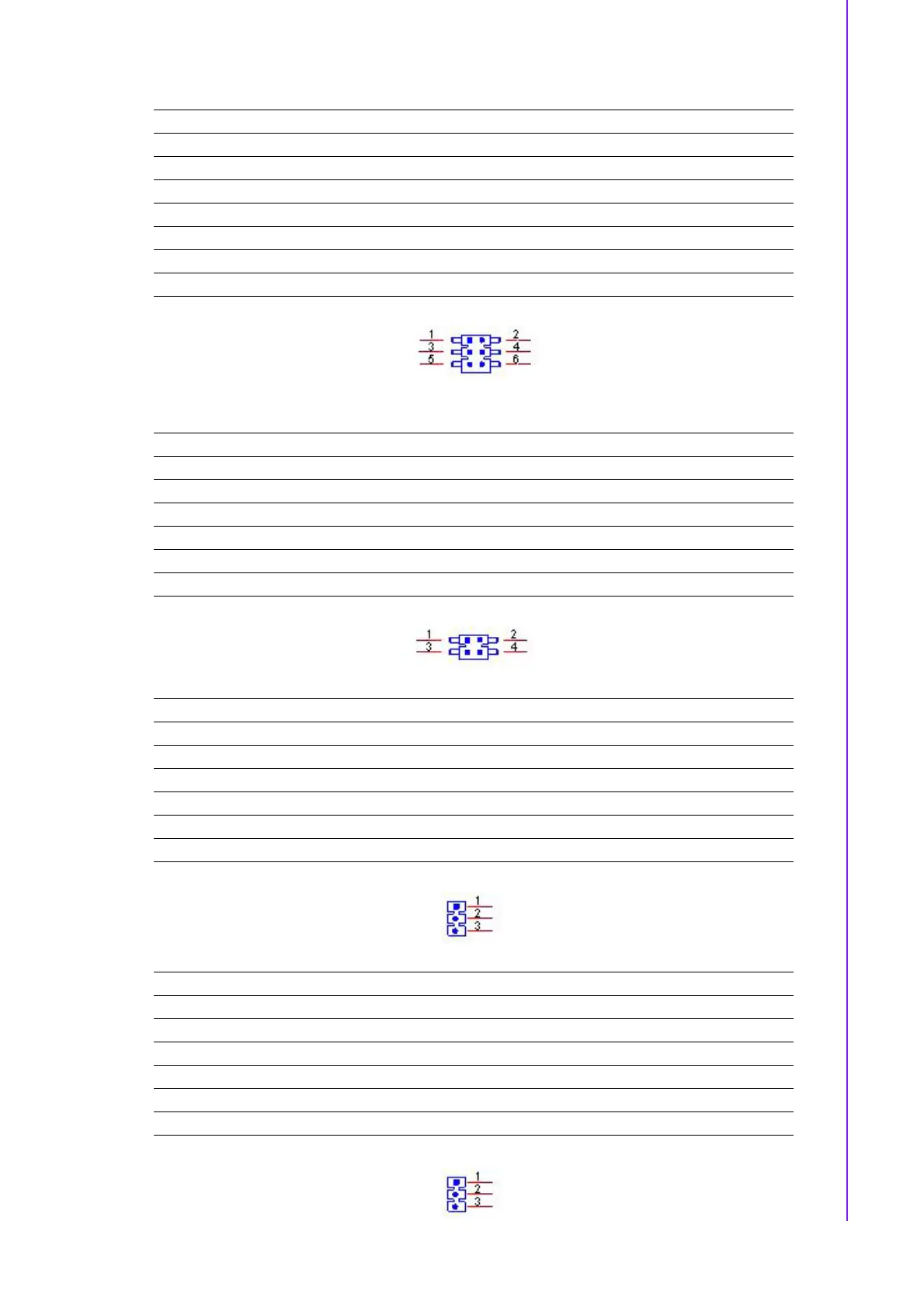

J4 LCD Power
Part Number 1653003260
Footprint HD_3x2P_79
Description PIN HEADER 3x2P 2.0mm 180D(M) SMD 21N22050
Setting Function
(1-3)* +3.3V
(3-5) +5V
(3-4) +12V
J5 LVDS VCON Setting
Part Number 1653000014
Footprint HD_2x2P_79
Description PIN HEADER 2x2P 2.00mm 180D(M) SMD 21N22050
Setting Function
(1-2)* 3.3V High for VCON on LVDS
(1-3) Low for VCON on LVDS
J6 COM5 RS422/485 Setting
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2)* RS485
(1-3) RS422
J7 COM6 RS422/485 Setting
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2)* RS485
(1-3) RS422
