PCM-9563 User Manual 6
This chapter explains the setup procedures of the PCM-9563 A1 hardware, including
instructions on setting jumpers and connecting peripherals, switches, indicators and
mechanical drawings. Be sure to read all safety precautions before you begin the
installation procedure.

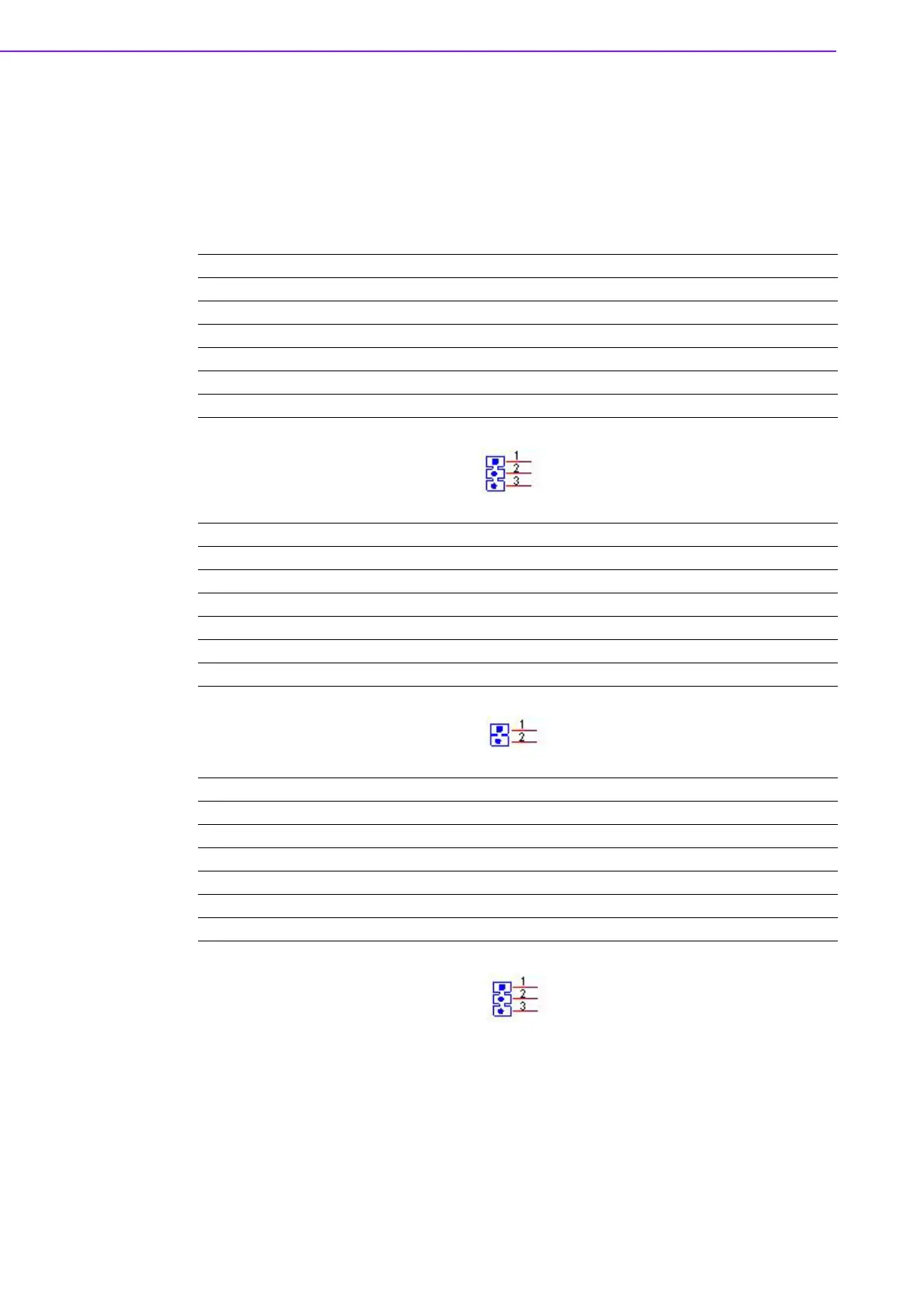

2.1 Jumpers
J1 Clear CMOS
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2)* Normal
(2-3) Clear COMS
J2 Auto Power On Setting
Part Number 1653002101
Footprint HD_2x1P_79_D
Description PIN HEADER 2*1P 180D(M)SQUARE 2.0mm DIP W/O Pb
Setting Function
NC Power Button for Power On
(1-2)* Auto Power On
J3 PCI104 VIO Setting
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2) +5V
(2-3)* +3.3V
