PCM-3718 Series User Manual 20
2.3.1 Counter Cable
PCM-3718 is equipped with a counter function that gives you more flexi-
bility in data acquisition applications. The following shows the pin
assignment and the pin definition of the cable.

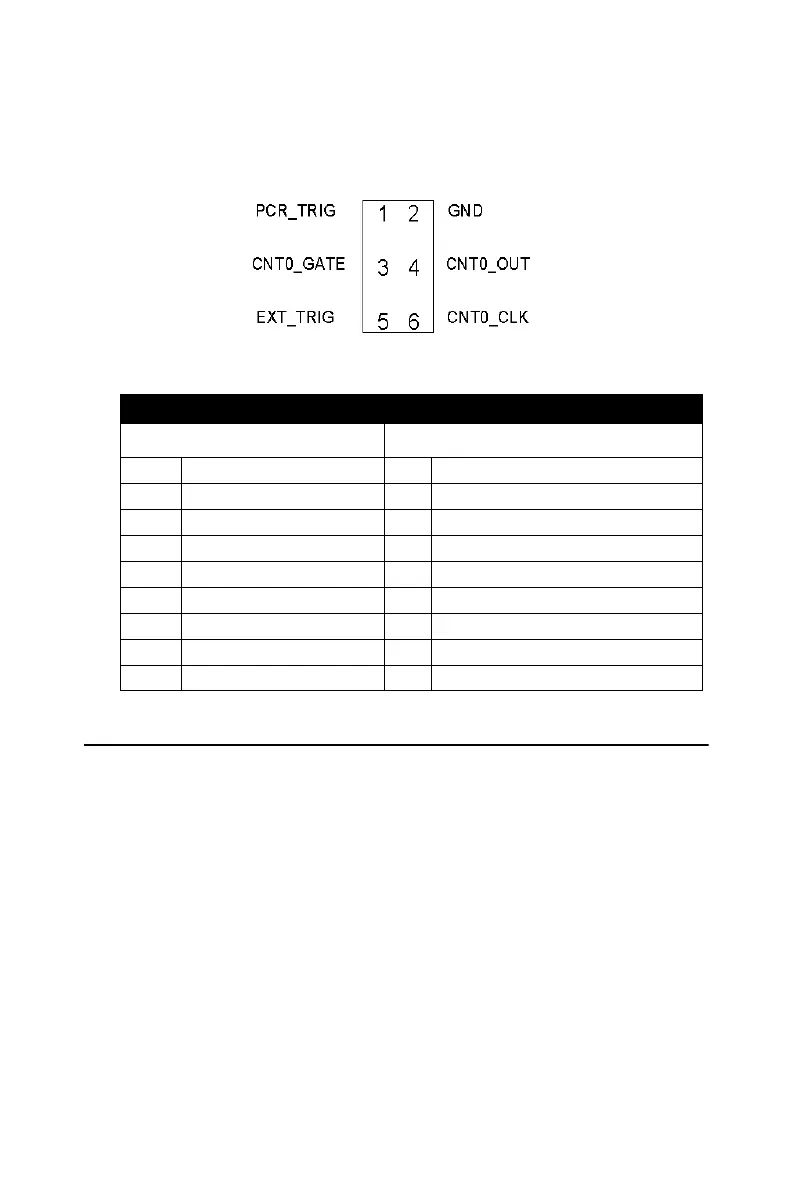

Figure 2.1: Pin Assignment of Counter Cable
2.4 Software Installation
The PCM-3718 cards include a CD-ROM with utility software. The CD-
ROM contains:
1. A comprehensive I/O driver for A/D, D/A, and digital I/O applica-
tions. This driver lets you use standard functions, written in com-
mon programming languages, to operate the PCM-3718 card. You
do not need to perform complex register programming. The driver
supports the following languages: Microsoft Visual Basic, Visual
C++, Borland C++, C++ Builder and Delphi. Please refer to the
Software Driver’s User Manual for more information.
2. Demonstration programs
3. A calibration program
4. A test program
Table 2.3: Mapping Table for DB9/2 p28-x3 Pin Header Cable
DB9 Pin Header
1 PCR_TRIG 1 PCR_TRIG
2 GND 2 GND
3 CNT0_GATE 3 CNT0_GATE
4 CNT0_OUT 4 CNT0_OUT
5 EXT_TRIG 5 EXT_TRIG
6 CNT0_CLK 6 CNT0_CLK
7 Disconnect -
8 Disconnect -
9 Disconnect -
