17 Chapter 2
2.2.7 FIFO IRQ Address Selection (JP9) (PCM-3718HO
only)

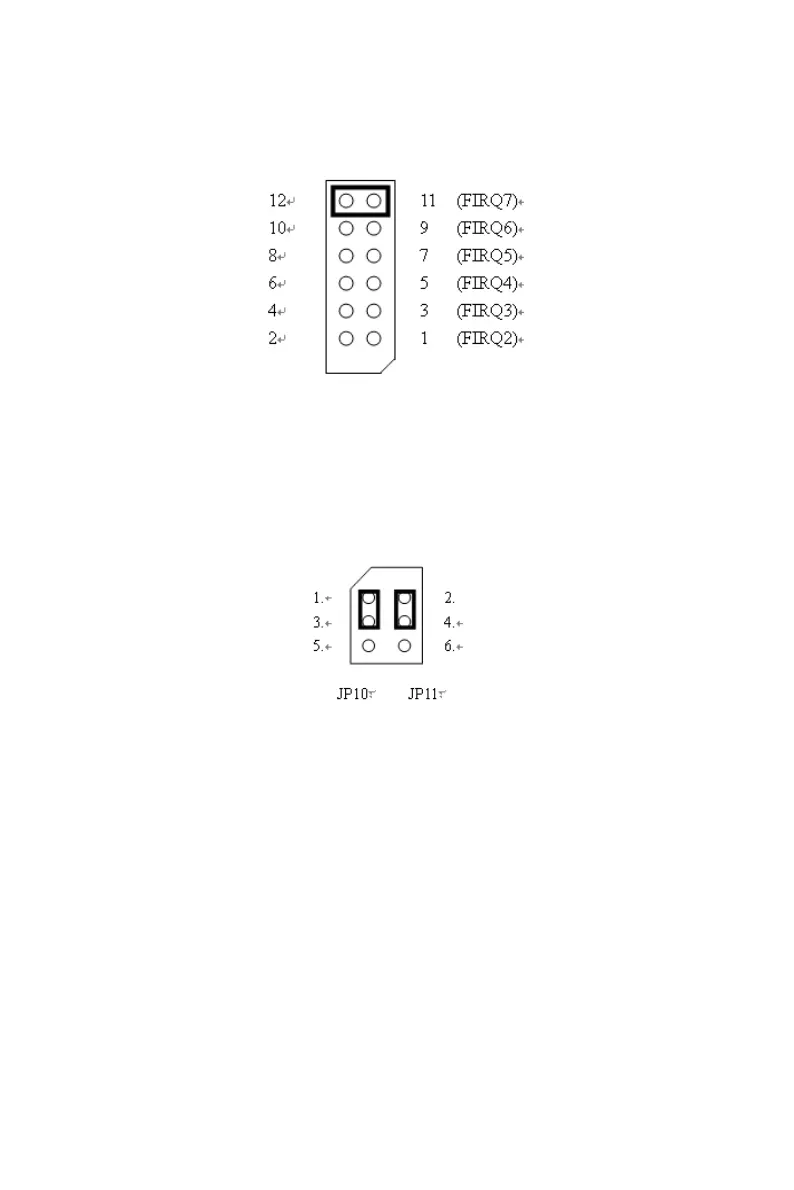

You can set the FIFO IRQ address with JP9.
2.2.8 D/A Range Selection: 5/10V (JP10) (PCM-3718HO
only)
JP10 lets users select the D/A output range.
Set the jumper on pin 1 and 3, to make the D/A range 0 ~ 10 V.
Set the jumper on pin 3 and 5, to make the D/A range 0 ~ 5 V.
2.2.9 Internal or External D/A Reference Voltage (JP11)
(PCM-3718HO only)
JP11 lets users select the D/A reference voltage as internal or external.
Set Jumper on pin 2 and 4, to make the reference voltage internal.
Set Jumper on pin 4 and 6, to make the reference voltage external.
