15 Chapter 2
2.2.4 External Input or D I/O Selection (JP3)
PCM-3718H and PCM-3718HG
Jumper JP3 controls the selection of signals on pin 1 at connector P2. Pin
1 on connector P2 can be connected to digital I/O line 0 or to an External
Clock as shown below.
PCM-3718HO
For PCM-3718HO, you can control signals on both pin 1 and pin 3 of
connector P2. Pin 1 can connect to digital I/O line 0 (DIO 0), and pin 3
can connect to digital I/O line 2 (DIO 2). This is the default setting of JP3.
Pin 1 can also be set to external A/D trigger source (EXT), and pin 3 can
be connected to counter gate 0. (G0).

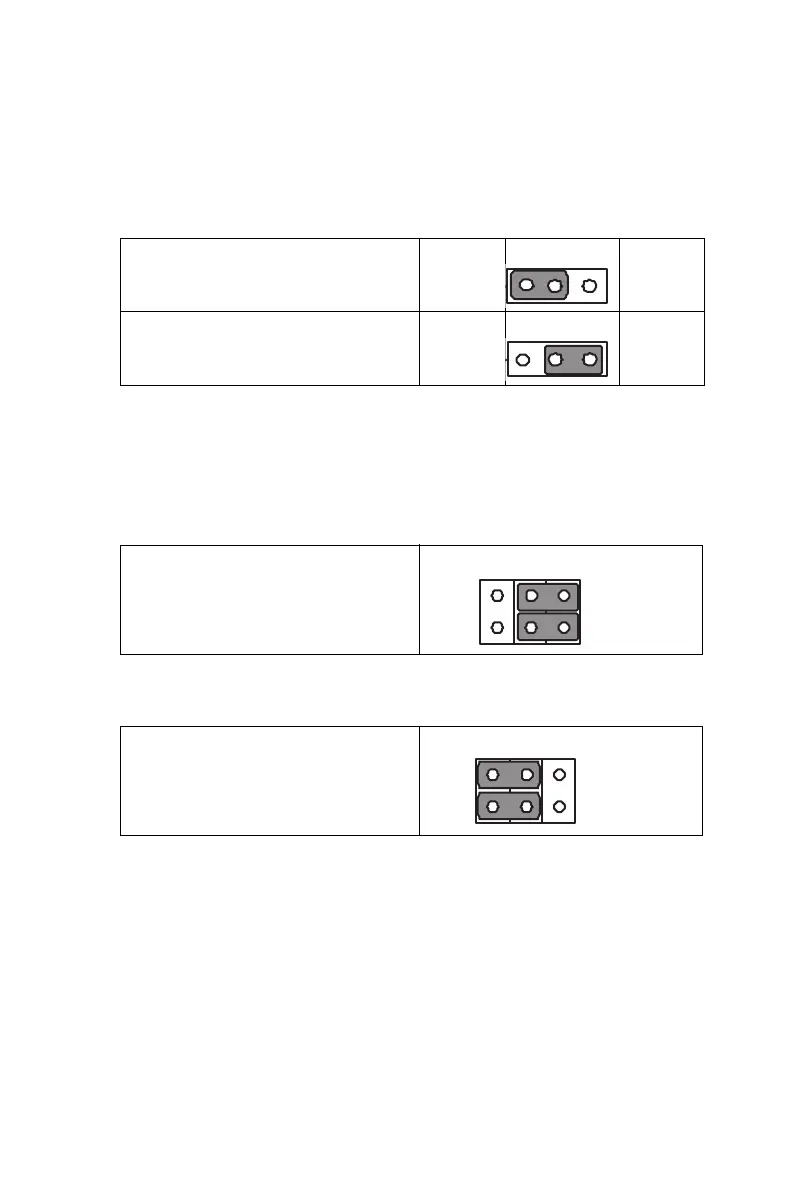

External trigger input EXT DIO 0
Digital I/O Line DIO 0 (default) EXT DIO 0
Digital I/O Line DIO 0 and DIO 2
(default)
External trigger input & counter
gate 0.
Note When the jumper setting is set to G0, the func-
tionality is the same as CNT0_GATE of P3.
When the jumper setting is set to EXT, the func-
tionality is the same as EXT_TRIG of P3.
G
O
E
XT DIO
0
DIO
2
G
O
E
XT DIO
0
DIO
2
