15 PCIE-1802 User Manual
Chapter 3 Signal Connections
3.3 Signal Connections
Pin Assignment
The I/O connector on the PCIE-1802 are a 36-pin and 19-pin connectors that enable
you to connect to accessories with the PCL-108BNC mini SCSI and PCL-10119
HDMI cable. Figure 3.1 and Figure 3.2 show the pin assignments for the 36-pin and
19-pin I/O connector separately, and Table 3.1 shows its I/O connector signal
description.

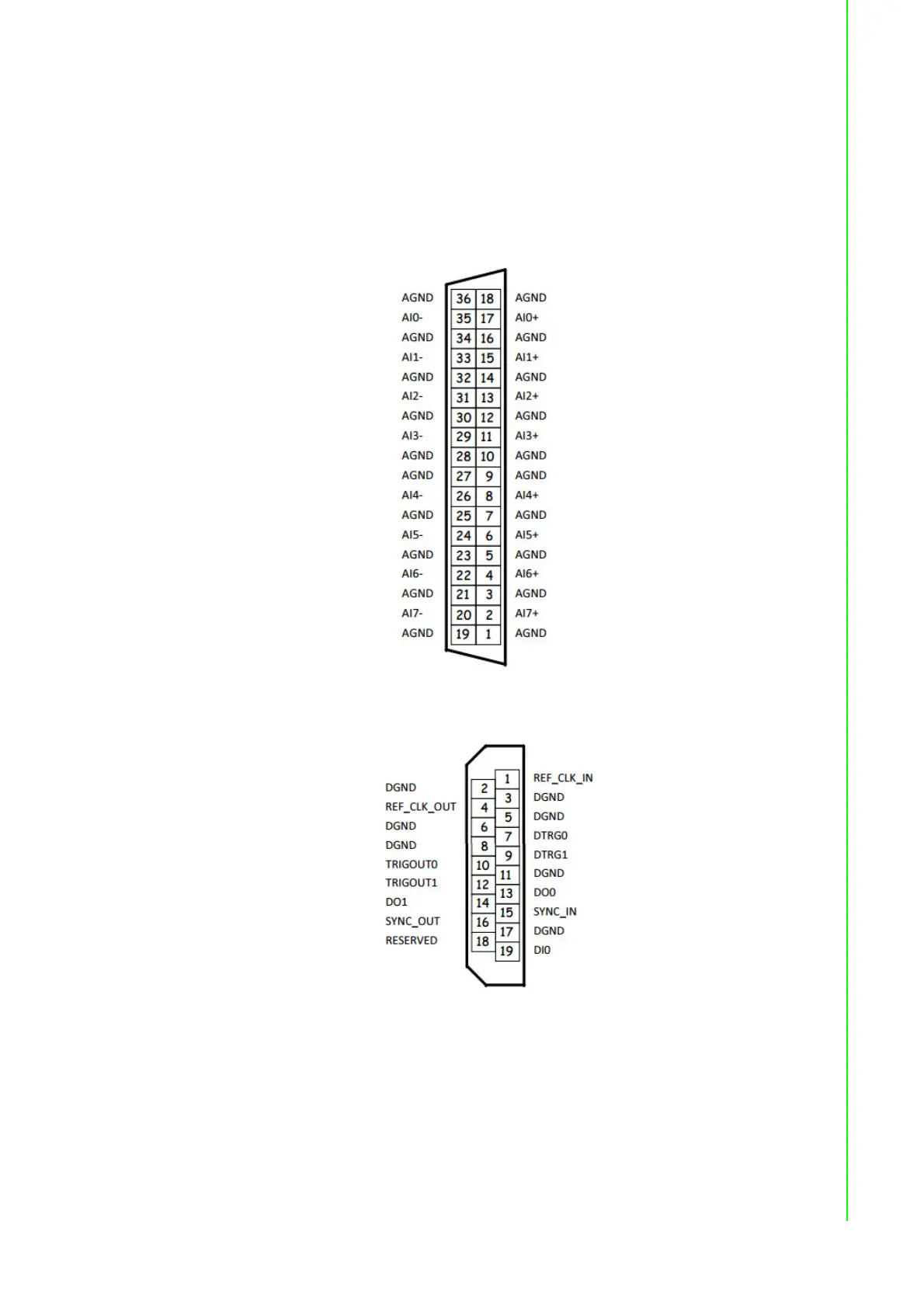

Figure 3.1 36-pin I/O Connector Pin Assignments
Figure 3.2 19-pin I/O Connector Pin Assignments
