General Description and Architecture General Description
Version C.1 BitFlow, Inc. CXP-1-7
The Cyton-CXP2 supports one dual-link camera or two single-link cameras. The
Cyton-CXP4 supports four single-link cameras, two dual-link cameras or one quad-
link cameras.
1.2.5 Single-Link Configuration

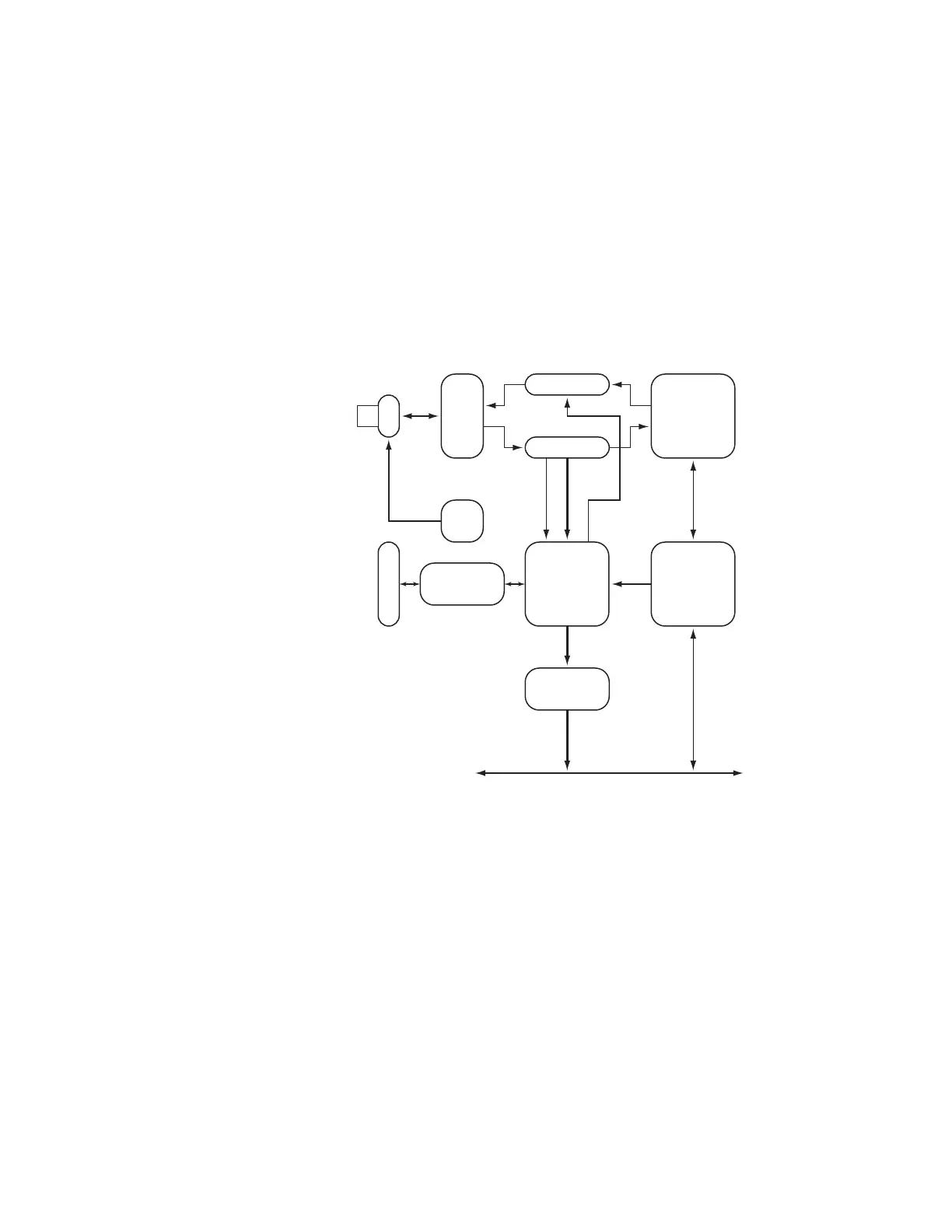

Figure 1-4 shows the block diagram of a VFG of any model when it used with a single
link camera. Multi-link configurations are shown later in this chapter.
Figure 1-4 Single Link Configuration Block Diagram
1.2.6 Video Data
Three types of packets are sent from the camera on the CoaXPress downlink: Video
(stream) data, control (command) packets and Trigger packets. Video packets contain
video information (pixels). Control packets contain commands and response. The
control packets are use to read/write from/to the cameras internal register space. Trig-
ger packets are used to send triggers to the host.
Packets containing video data are sent to a stream assembler. The stream assembler
builds up lines of video data which are then sent to the acquisition and control logic
(see Figure 1-4). From this point on the Aon/Claxon/Cyton work very similar to all of
Data
I/OI/O
PCIe
Control
Interface
Power
CXP
Physical
Layer
Acquisition
Engine
De-packetizer
PCI Express Bus
I/O
Connector
Packetizer
Buffer
Manager
I/O
System
Camera
Communications
Control
CXP DIN 1.0/2.3
Connector
