PCI-1285/1285E User Manual 12
3.2 Location of DIP switch
Figure 3.3 shows the names and locations of DIP switch on the PCI-1285/1285E.
The switch is used to set board ID.
BoardID Switch
PCI-1285/1285E have a built-in DIP switch (SW1), which is used to define each
card's unique identifier for Motion Utility. You can determine the BoardID identifier on
the register as shown in table 3.3. When there are multiple cards in the same chas-
sis, this BoardID setting is useful for identifying each card's unique device number.
We set the BoardID switch to 0 at the factory. If you need to adjust it to another num-
ber, set SW1 by referring to table 3.2.

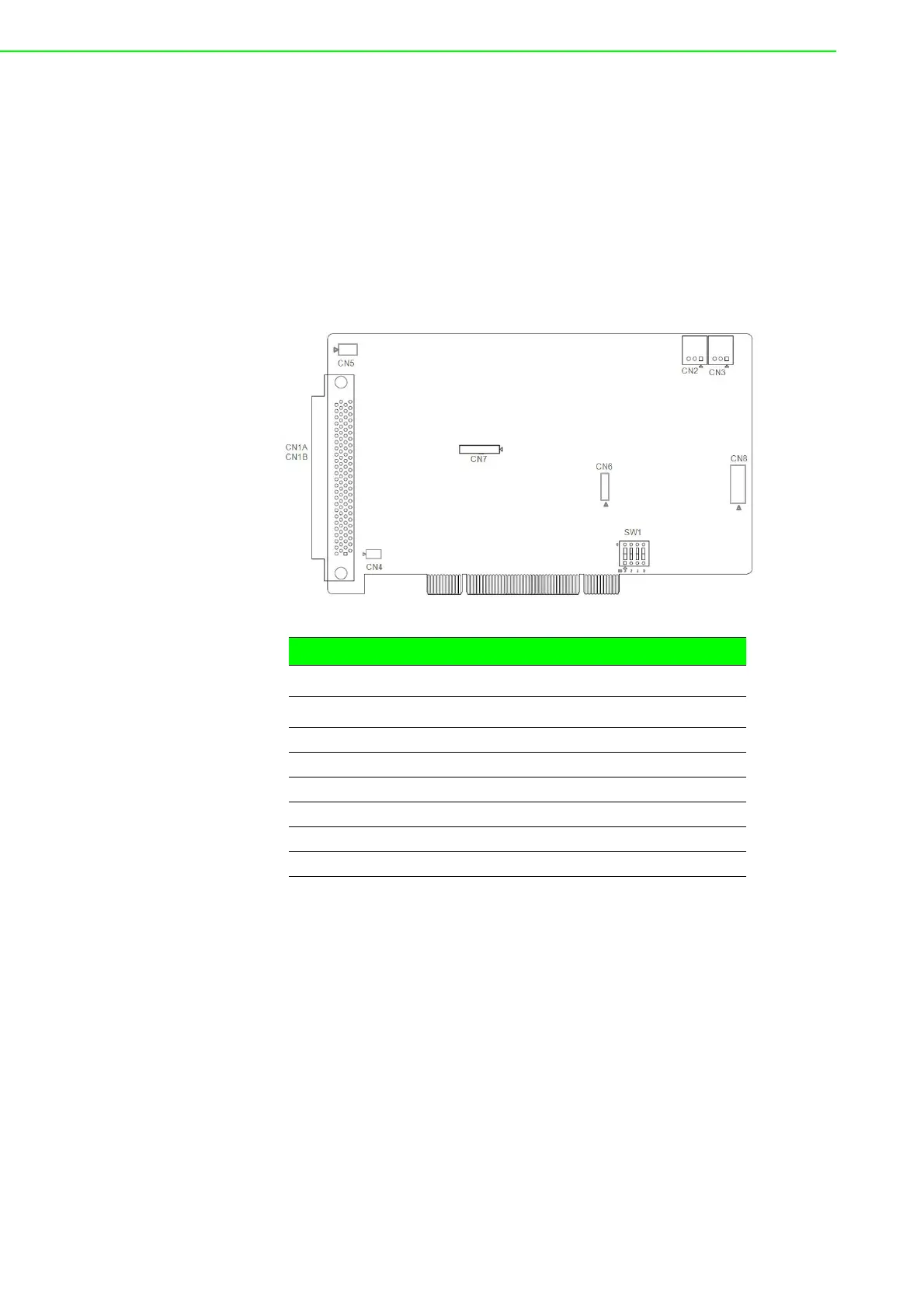

Figure 3.3 Location of Jumpers & DIP Switch
Table 3.2: BoardID Setting
Board ID Setting (SW1)
Board ID (Dec.) Switch Position
ID3 (1) ID2 (2) ID1 (3) ID0 (4)
*0 llll
1 lllm
:
14 mmml
15 mmmm
= Off = On * = default
