7 PCE-5133/5033 User Manual
Chapter 1 Hardware Configuration
Figure 1.2 PCE-5033 Jumper and Connector Locations

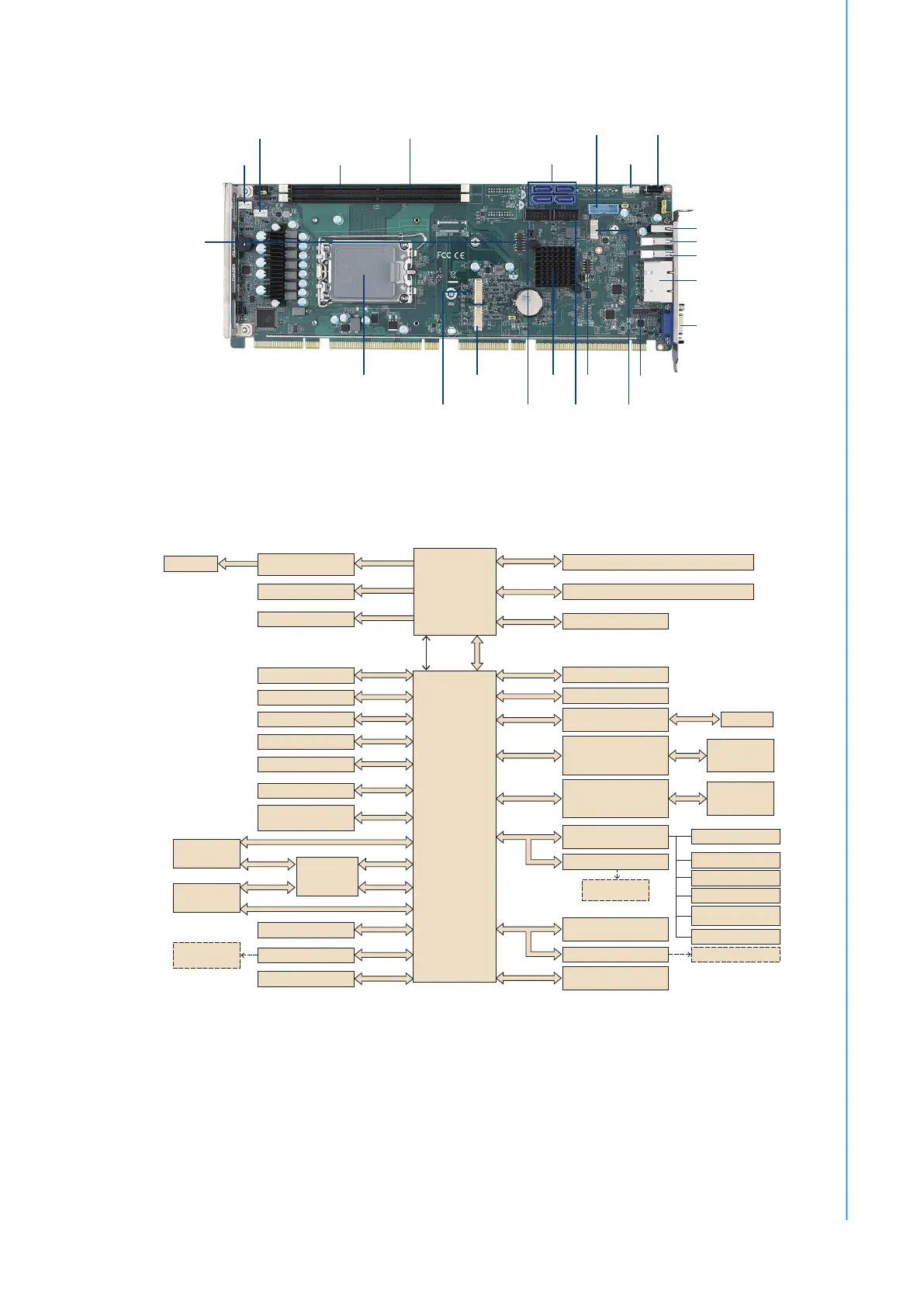

1.6 Block Diagram
Figure 1.3 PCE-5133 Block Diagram
System FAN1 DIMMA1
CPU1 DP1 PCH GPIO1 HDAUD1
DP2 COM2 COM1 SPI_TPM1
USB3H1
LANLED1
CPU FAN1 DIMMB1
SATA4-7
USB2A1
USB2C1
USB3C2
USB3C1
VGA1
eSPI
LAN12
600MB/s
Gen 3.0
DDIA
Channel A
Channel B
PCIe x16
Gen3.0
SATA4~7 CONN
VGA CONN.
Converter
Chrontel CH7517A-BF
PICMG 1.3
DMI
Gen4
CPU
Alder Lake S
LGA-1700
PCH
Alder Lake PCH-H
R680E
H/W Monitor
WDT
CASE OPEN
8 bit GPIO
(internal box header)
FAN x 2
for TPM module
DDIB
DVI-D1/HDMI1/DP1
DDIC
DVI-D2/HDMI2/DP2
SATA RAID 0,1,5,10 Support
Gold Finger_A&B
VGA
PCIex4
Gen 4
M.2 M-Key
2 BOX Header
PCIex4Gen 3.0
PICMG 1.3
eSPI Pin Header
Gold Finger_A
600MB/s
Gen 3.0
SATA0 CONN
600MB/s
Gen 3.0
SATA1 CONN
USB2 Int Type A
USB3 Rear Panel Type A
USB 2.0
USB 2.0 x 1
Gold Finger_C
USB 2.0
PICMG 1.3
USB 2.0 x 4
USB3 Pin Header
Rear Panel
Box Header
Box Header
USB 3.2 Gen1
USB 3.2 x 2
USB3 Pin Header
USB 3.2 Gen1
USB 3.2 x 2
USB 3.2 Gen1
USB 3.2 x 2
HDAUD
USB 2.0 x 1
10 Gb/s
10 Gb/s
USB 3.2
Redriver
USB3.2 x 1
USB3 Rear Panel Type A
USB3 Pin Header
HDAUD Pin Header
USB2 Rear Panel Type A
For Board
PCA-AUDIO-HDB1E
USB 3.2 Gen2 USB 3.2 Gen2
USB 3.2 Gen2
USB 3.2 Gen2
USB 2.0
USB 2.0
USB 2.0
Gold Finger_D
PCIex1
Gen 1.0
PCI Bridge
PI7C9X113SLFDE
H/W Monitor
NCT7802Y
Rear Panel
PCIex1
Gen 2.0
Intel Foxville Discrete
PCIe LAN
I226-LM
LAN1
RJ45 CONN.
10M/100M/1Gb/2.5Gb
Rear Panel
PCIex1
Gen 2.0
Intel Foxville Discrete
PCIe LAN
I226-LM
LAN1
RJ45 CONN.
10M/100M/1Gb/2.5Gb
33MHz
PCI 32-bit
eSPI Bus
Super I/O NCT6126D
LQFP 128P 16x16 mm
PICMG 1.3
TPM Pin Header
SPI Bus
SMB
SPI BIOS (SKT)
256M-bit
DDR5 ECC/ non-ECC UDIMM 4800 MT/s (1DPC)
DDR5 ECC/ non-ECC UDIMM 4800 MT/s (1DPC)
RS-232 x 2
USB3.2 x 1
for COM module or
debug card
