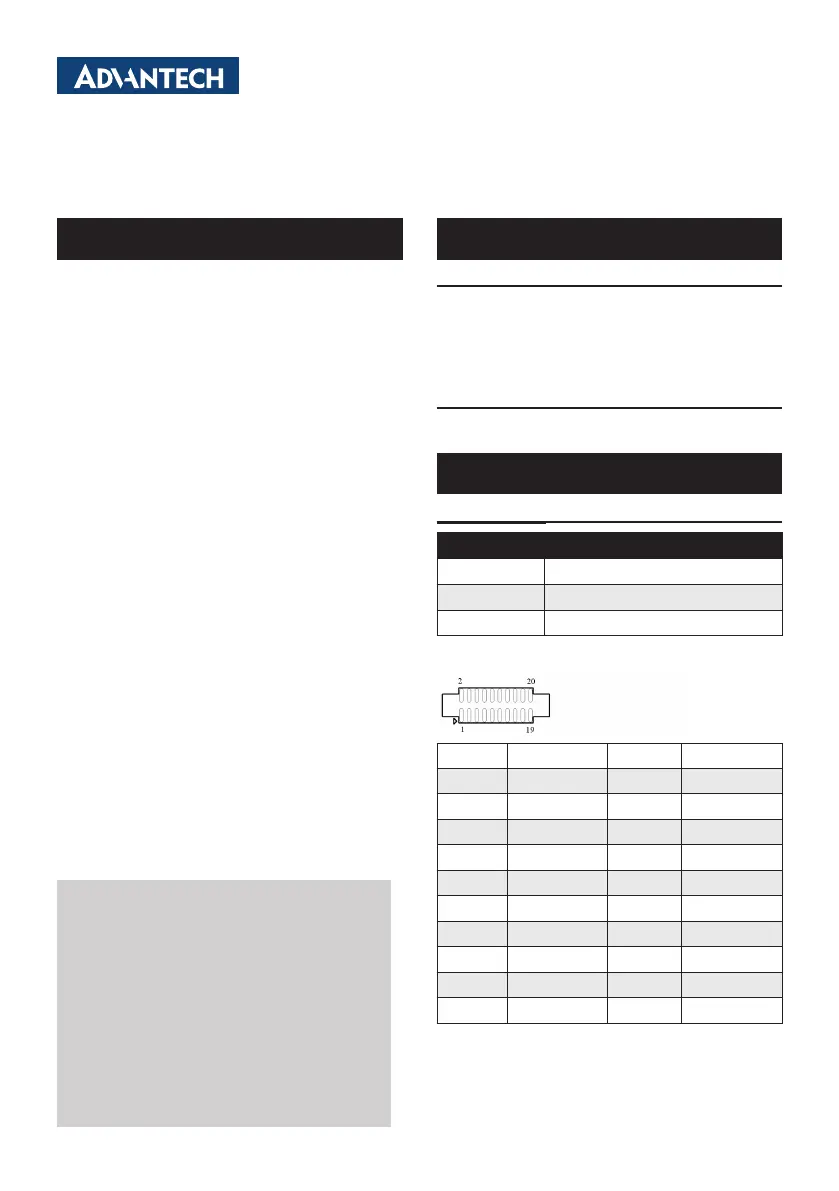

PCA-COM232 / PCA-COM485 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
PCA-COM232 / PCA-COM485 4 Series Ports Expand
Module x1
2 year quality warranty card x 1 p/n:2190000902
Startup manual x 1
R/S D=5.5 H=2.0 +M M3*4L
ST Zn X2 p/n:1935030430
THREADED SPACER M3X0.5X7L
HP-7 for LPC module X1 p/n: 1990015800S000
F Cable 2*10P-2.0/D-SUB 9P
(M)*2 22.5CM W/BKT X2 p/n: 1700008762
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
•
•
•
•
•
•
PCA-COM232 / PCA-COM485
4 Series Ports Expand Module
Startup Manual
Standard PC functions
This PCA-COM module expand 4 series ports by LPC con-
nector on CPU card.
PCA-COM232 - 4 RS-232 series ports.
PCA-COM485 - 4 RS-422/485 series ports with Auto-flow
control function.
Mechanical
Dimensions: 31.5 mm x 48 mm
Connectors
PCA-COM232
Connectors
Label Function
COM1 Serial Port: COM1 COM2
COM2 Serial Port: COM3 COM4
COM1
Pin Signal Pin Signal
1 DCD1 2 DSR1
3 RX1 4 RTS1
5 TX1 6 CTS1
7 DTR1 8 RI1
9 GND 10 GND
11 DCD2 12 DSR2
13 RX2 14 RTS2
15 TX2 16 CTS2
17 DTR2 18 RI2
19 GND 20 GND
•
•
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com.tw/support
This manual is for the PCA-COM232-COM485 series.
Part No. 200K023200
Printed in China
1st Edition
July 2009
