PAX-121 User Manual 12

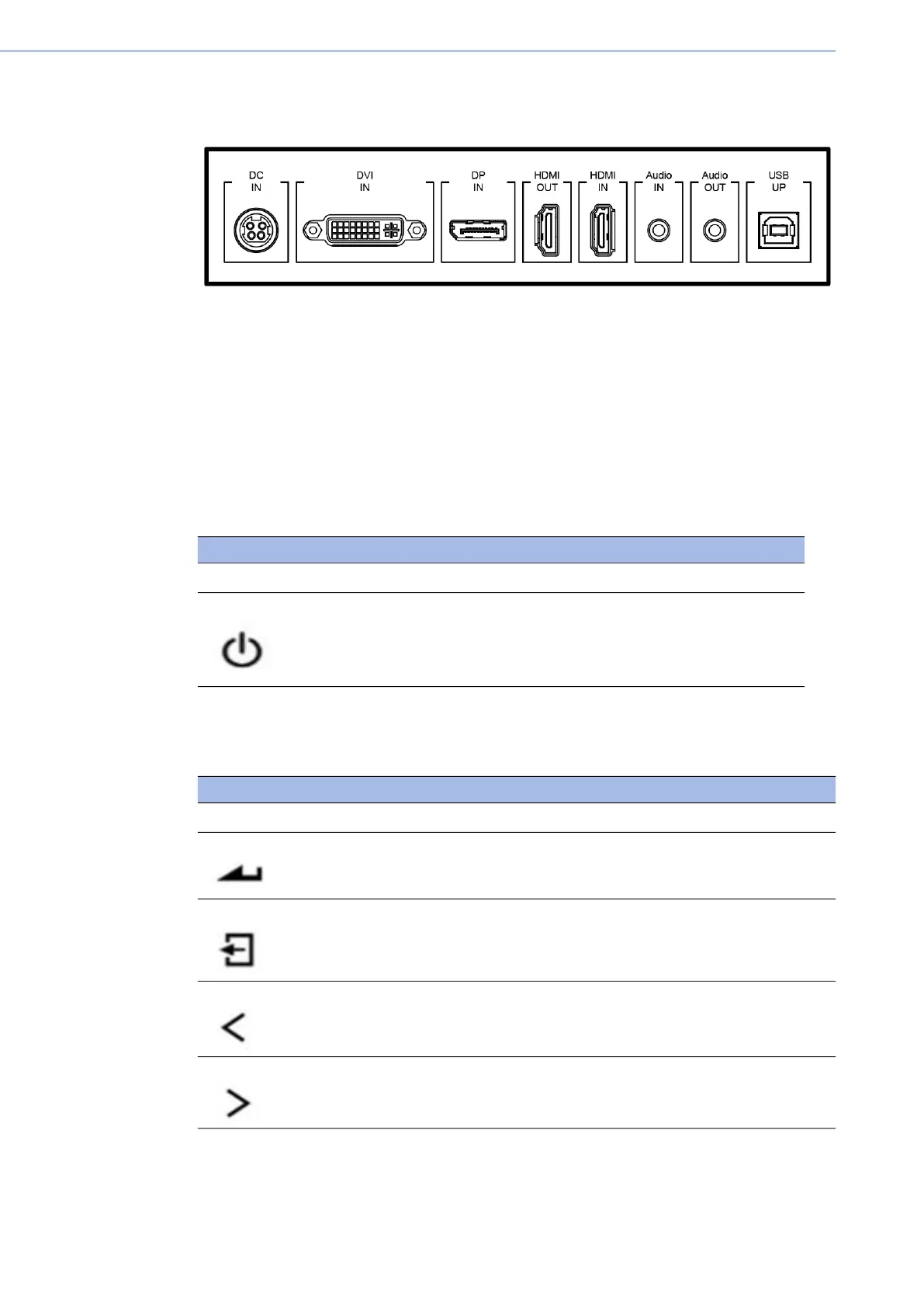

2.2.1 I/O Ports
PAX-121
(1) (2) (3) (4) (5) (6) (7) (8)
2.2.2 Display
The PAX-121 features a 21.5-inch TFT LCD display. The screen supports a maxi-
mum resolution of 1920x1080 @ 60Hz.
2.2.3 OSD Key Functions
Fixed series of PAX-121 features a 5-button keypad to directly make adjustment to
the monitor settings. See following section for list of the available functions.
Below is only included in With Buttons Versions.
Table 2.1: OSD Key Functions
Name Function
Power key
Standby button
When system ON, the power button will become Green color. And
LED off when system off.
Table 2.2:
Name Function
Menu/Enter key
Select main OSD menu.
Select sub menu.
Apply adjustments.
Exit/Input key
Exit/Return to previous menu in main OSD menu.
Used to activate Input hot menu when main OSD menu isn't displayed.
Left key
Move and adjust values in main OSD menu.
*If the input is RGB, the Auto color function is executed when the button
is pressed for more than 3 seconds.
Right key
Move and adjust values in main OSD menu.
