MIO-5391 User Manual 12

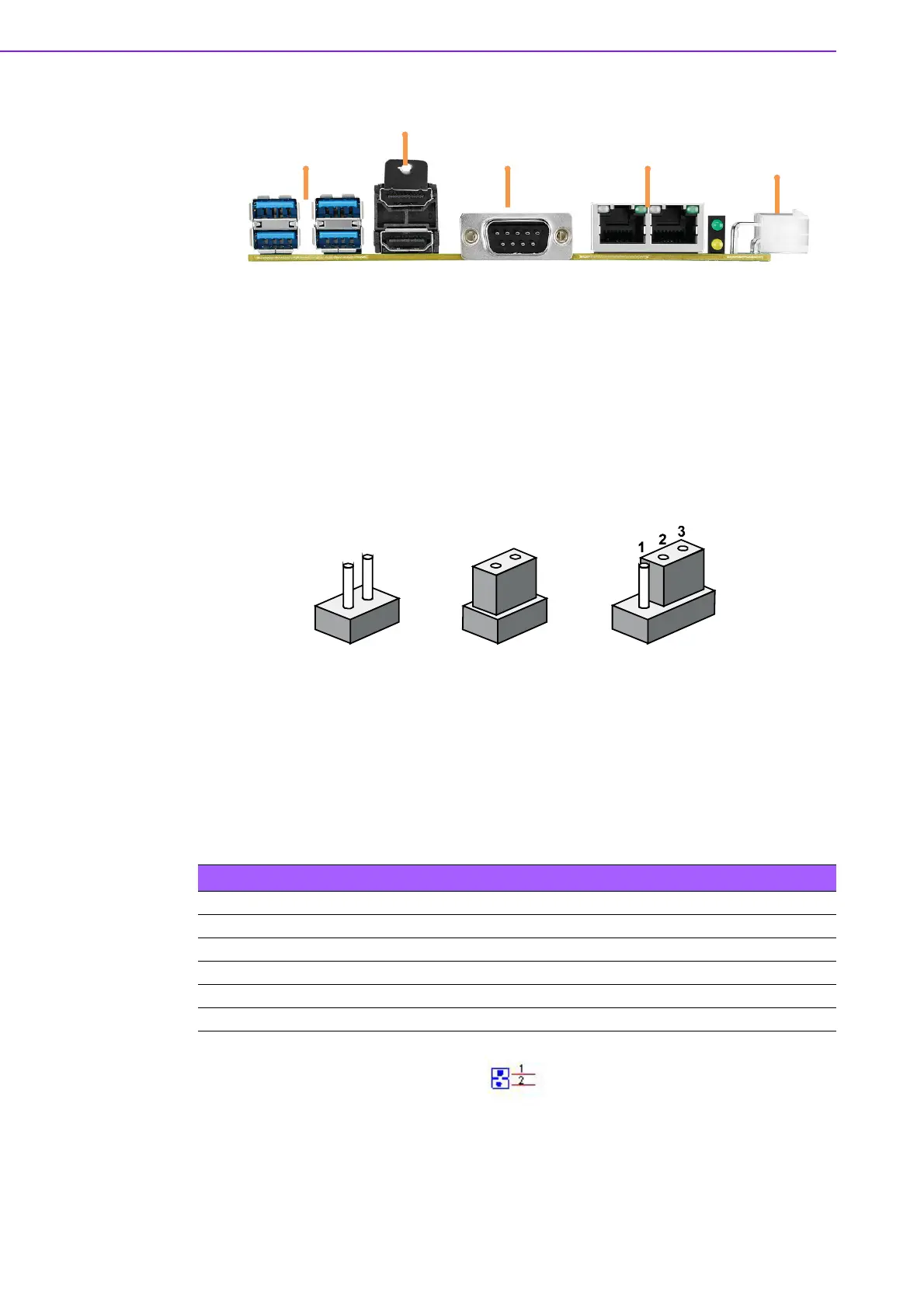

Figure 2.3 MIO-5391 Connector Locations (Coastline)
2.4 Setting Jumpers
You may configure your card to match the needs of your application by setting jump-
ers. A jumper is a metal bridge used to close an electric circuit. It consists of two
metal pins and a small metal clip (often protected by a plastic cover) that slides over
the pins to connect them. To “close” a jumper, you connect the pins with the clip. To
“open” a jumper, you remove the clip. Sometimes a jumper will have three pins,
labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.
The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.
2.4.1 Auto Power On Setting (J2)
CN21 CN22
CN36
CN5
CN18
CN1
closed 2-3closedopen
Table 2.3: Auto Power On Setting (J2)
Part Number 1653002101-02
Footprint HD_2x1P_79_D
Description PIN HEADER 2x1P 2.0mm 180D(M) DIP 21N12050
Setting Function
NC Power Button for Power On
(1-2)* Auto Power On
