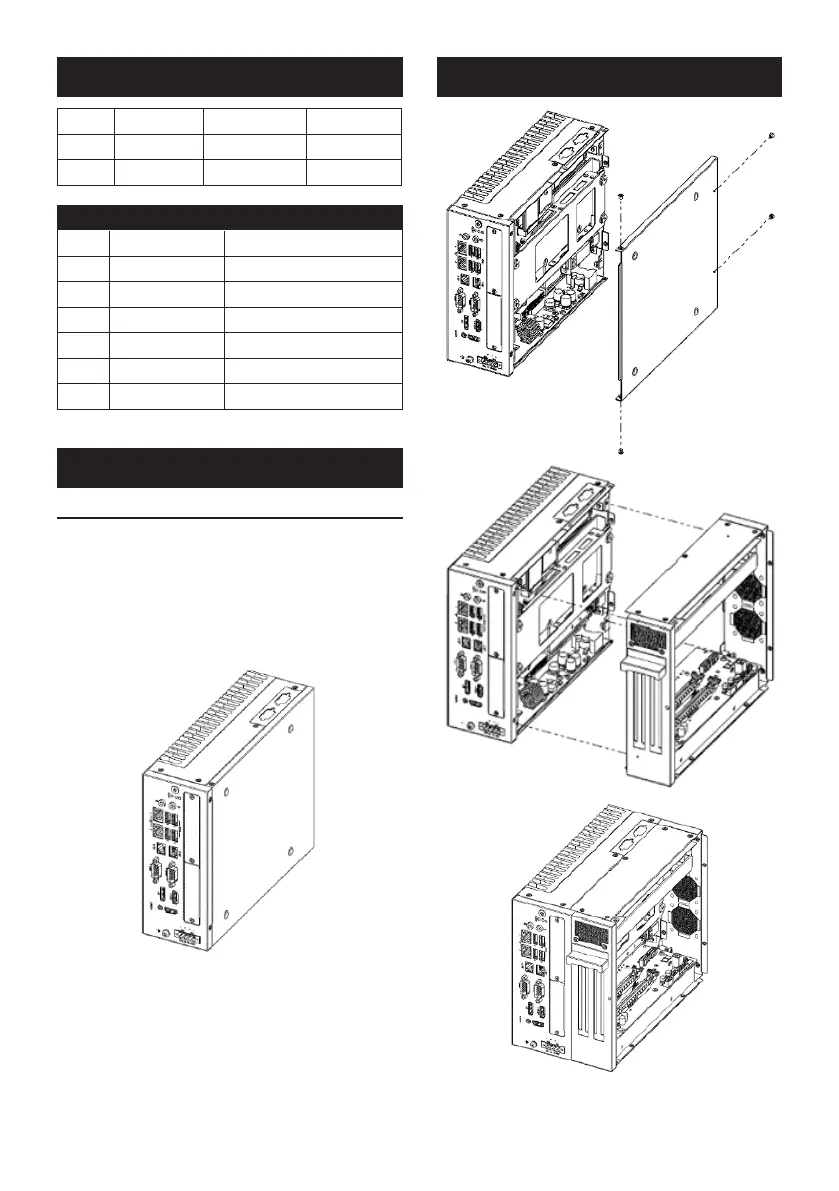

2 MIC-78M20/M20-01/M11 Startup Manual
Model MIC-78M20 MIC-78M20-01 MIC-78M11
Slot#1 PCle x16 PCle x16 PCle x16
Slot#2 PCle x4 PCle x16 PCI
Connectors
No. Item Function
1 SATA PWR CON SATA Power connector
2 SATA Data CON SATA connector
3 FAN CON 4-pin PWM FAN connector
4 PCIe p2-x4 PCIE p2-x4 Socket
5 PCIe x16 PCIE x16 Socket
6 PCI PCI Socket
System Installation
• The MIC-78 series i-module can be assembled with all
MIC-78 series IPC systems.
1. Undo 4 screws on the MIC-78 series system to remove
the bottom cover. Keep the bottom cover.
2. Assemble the MIC-78M20/M11 with the MIC-78 series
system and secure it using the 4 x screws to integrate
the systems.
3. Ax the 4 x screws to re-attach the bottom cover.
Selection Table
Simple Maintenance Process
Simple Maintenance Process (Cont.)
