21 MIC-770 V2 User Manual
Chapter 2 H/W Installation
2.4.4 Internal USB 2.0 Installation (W SKU Only)
1. Undo 4 screws and remove the bottom cover.
2. Loosen the screws and adjust the bracket size in accordance with the USB don-
gle size.
3. Replace the bottom cover and secure with screws.
2.4.5 COM 3/4/5/6 Port Installation
MIC-770 V2 supports two standard RS-232/422/485 serial ports. If more serial ports
are needed, MIC-770 V2 can expand to up to four serial ports by Flex I/O
98R17500601 (RS-232 only).

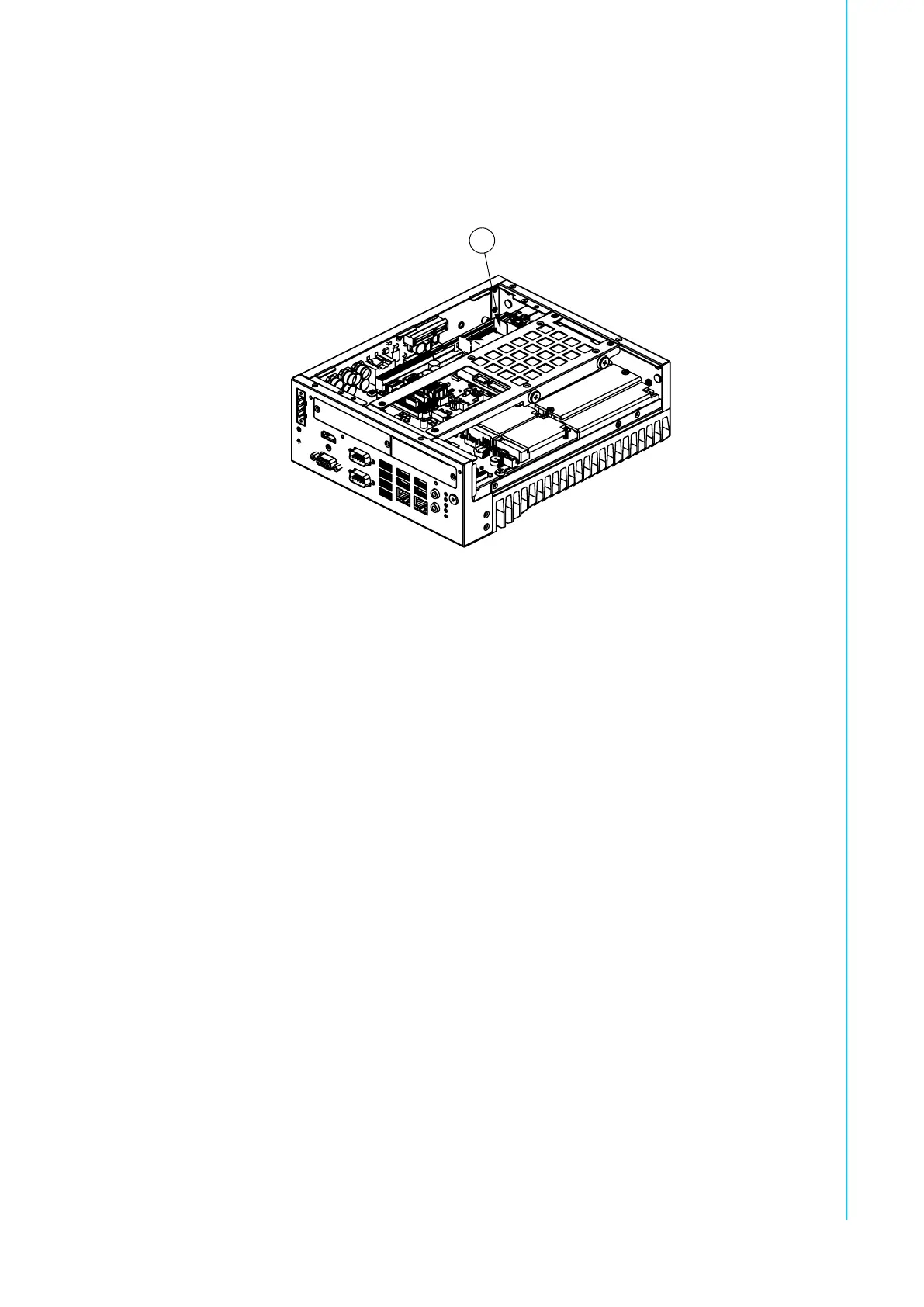

1. Replace the baffle plate for COM 3/4 and COM5/6.
2. Remove the HDD tray.
3. Assemble the DB9 connector for the baffle, and install the cable at the COM3/4
and COM5/6 connectors.
4. Secure the COM module in the system and replace the HDD tray/bottom cover.
2
