MIC-770 V2 User Manual 10
2.1 Introduction
The following sections show the internal jumper settings and the external connectors
and pin assignments.
2.2 Jumper & Slide Switch
2.2.1 Jumper Description
You may configure MIC-770 V2 to match the needs of your application by setting
jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two
metal pins and a small metal clip (often protected by a plastic cover) that slides over
the pins to connect them. To close a jumper, you connect the pins with a clip. To open
a jumper, you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2,
and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

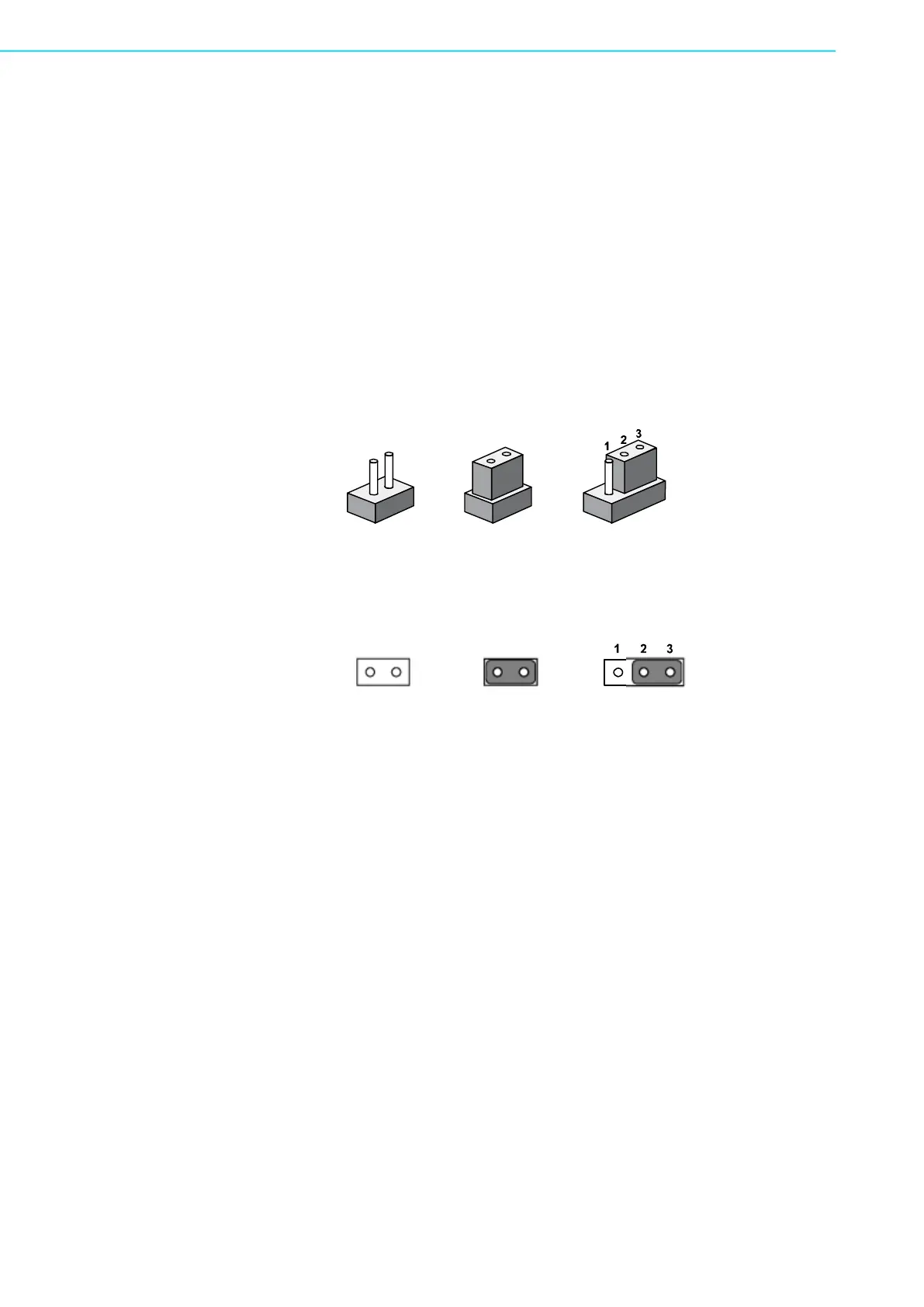

The jumper settings are schematically depicted in this manual as follows.
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.
closed 2-3closedopen
12 12
closed 2-3closedopen
