MIC-75M13 Startup Manual 3

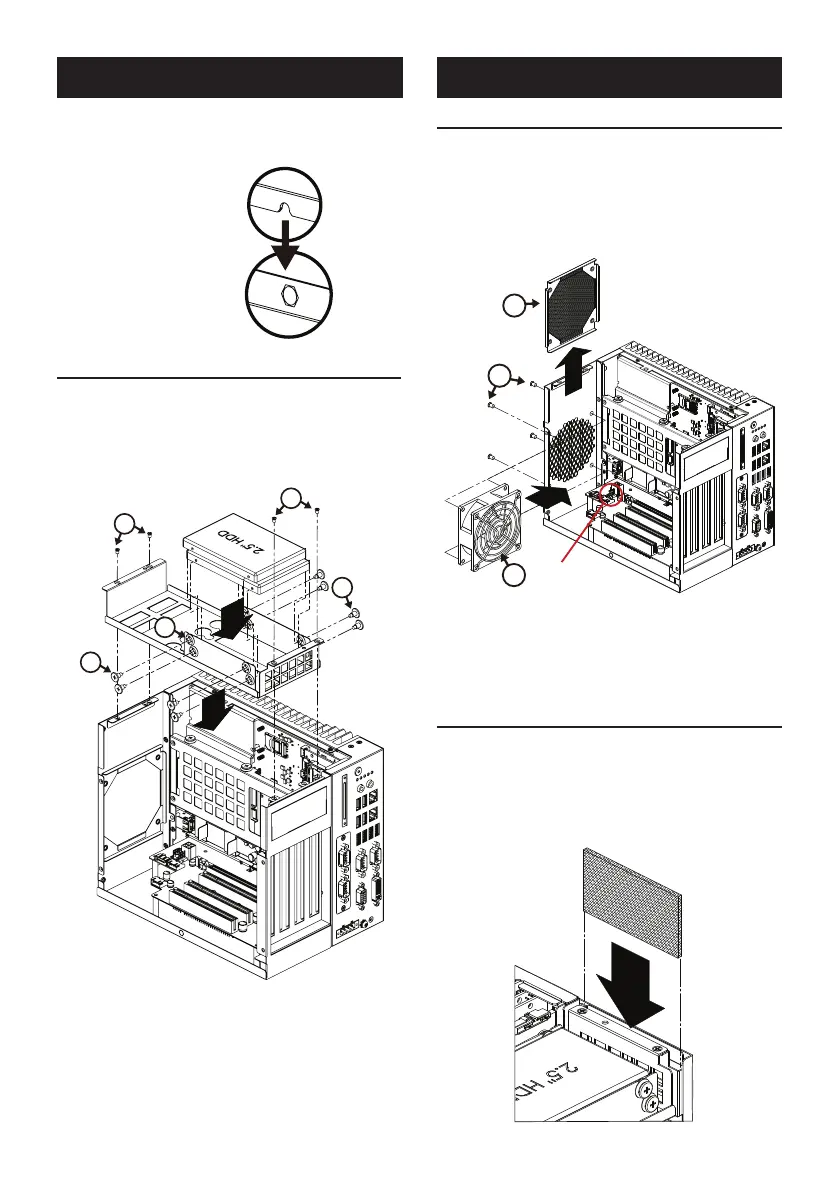

5. Replacee the cover and secure with screws.
Note: Chassis cover has designed a notch and it must
buckle at a hook at chassis.
Chassis Cover
Chassis hook
HDD Installation
MIC-75M13 supports 2 x 2.5’ HDD space. You can move
System HDD to i-module HDD space that will be more
easy to maintain the system.
Note: MIC-75M13 only supports one SATA HDD
connector, 2nd SATA must extend from the
system.
1
1
2
3
3
1. Undo HDD bracket.
2. Assemble 4x HDD shock rubber pad
(P/N:1990008871S000) for One HDD.
3. Secure the 4xHDD screws (P/N:1930002235)
4. Assemble SATA/SATA Power cable.
(Please refer MB internal I/O connector specificaton at
next page)
5. Replace HDD bracket and chassis cover with screws.
FAN Installation (Optional)
MIC-75M13 supports a 8x8CM FAN space. If system wants
to install high perfornamce epxansion cards (For example:
Graphic or PoE card) or total power consumption is over
45W, please install FAN for Thermal issue.
FAN is optional module. If you system needs FAN module,
please contact your distributor or sales representative.
Fan Module P/N : 98R1751300E.
1
2
Fan Connector
3
1. Undo FAN cover
2. Secrue FAN protectoin nets with 4 screws.
3. Assemble and secure FAN in chassis with 4 screws.
4. Plug the FAN power cable into the connector of
backplane board.
FAN Filter Installation
If your system has installed FAN, we recommend you to be
replaced system fan filter at regular intervals to ensure the
stability of the system cooling.
You can find one new FAN filter at FAN moudle.
1. Undo system cover and remove old Fan filter.
2. Change new fan filter and replace system cover with screws.
Simple Maintain Process
(Cont.)
Simple Maintain Process (Cont.)
