MIC-713 User Manual 32

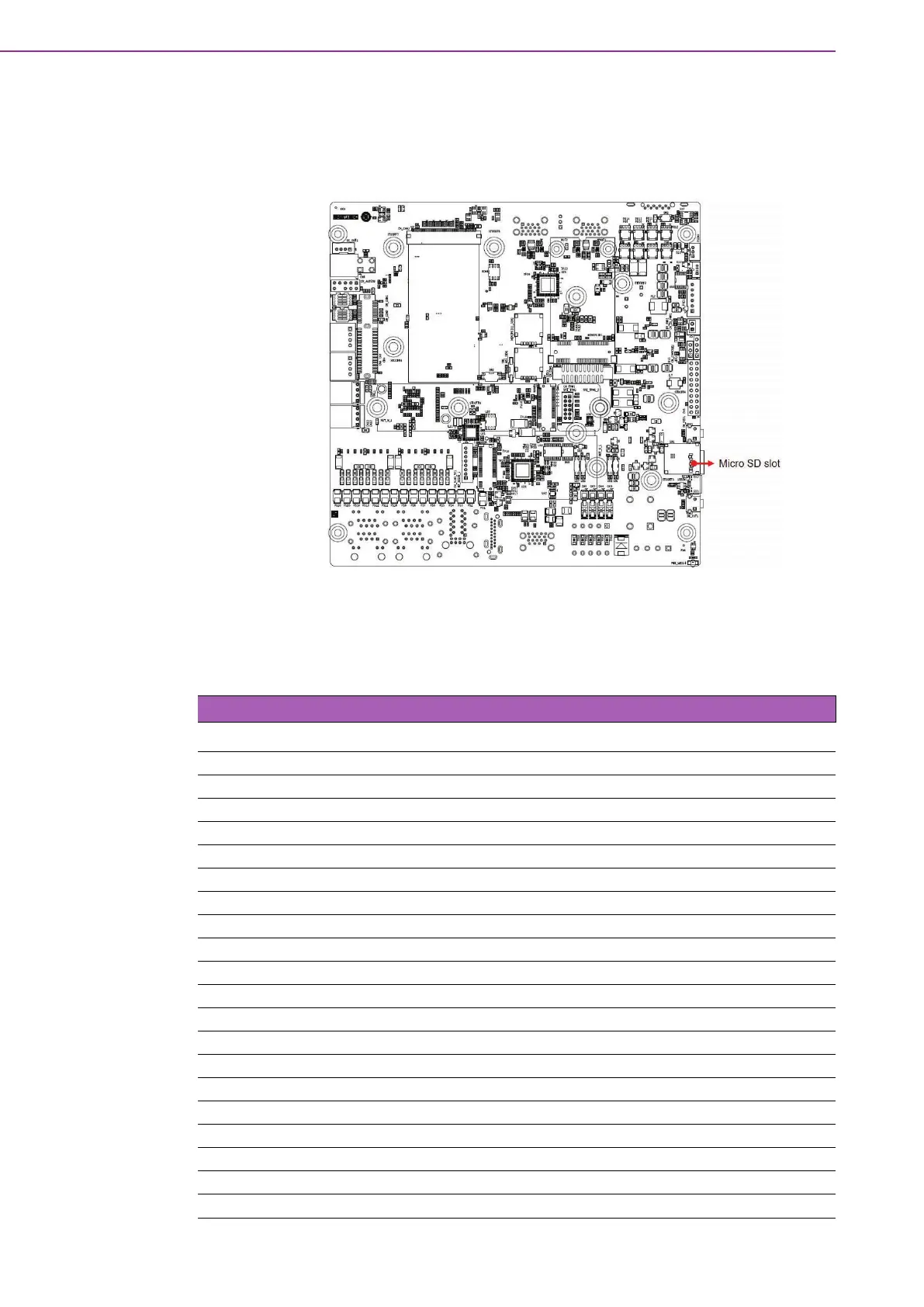

3.1.16 Micro SD Slot
This slot provides a USB 2.0 signal for Micro SD cards.
If the extra data storage space is required, you can install a 64GB or above capacity
Micro SD card on this slot for further usage.
3.1.17 GPIO Expansion Header
The MIC-713 provides multi GPIO pins for developer usage.
The pin definition is as below table.
Table 3.3: GPIO expansion header
PIN Signal Description IO Voltage Level
1 3.3V Power +3.3 V 3.3 V
2 5V Power +5 V 5 V
3 3.3V Power +3.3 V 3.3 V
4 5V Power +5 V 5 V
5 I2S_DOUT I2S Audio Data Out 1.8 V
6 SPI1_SCK SPI Clock 1.8 V
7 I2S_DIN I2S Audio Data In 1.8 V
8 SPI1_MISO SPI Master In/Slave Out 1.8 V
9 I2S_FS I2S Audio Left/Right Clock 1.8 V
10 SPI1_MOSI SPI Master Out/Slave In 1.8 V
11 I2S_SCLK I2S Audio Clock 1.8 V
12 SPI1_CS0 SPI Chip Select 0 1.8 V
13 GND GND N/A
14 SPI1_CS1 SPI Chip Select 1 1.8 V
15 GPIO06G GPIO 1.8 V
16 GND GND N/A
17 GPIO07 GPIO 1.8V
18 GPIO12 GPIO 1.8V
19 GND GND N/A
20 GND GND N/A
