21 ITA-580/580G User Manual
Chapter 3 System Setup

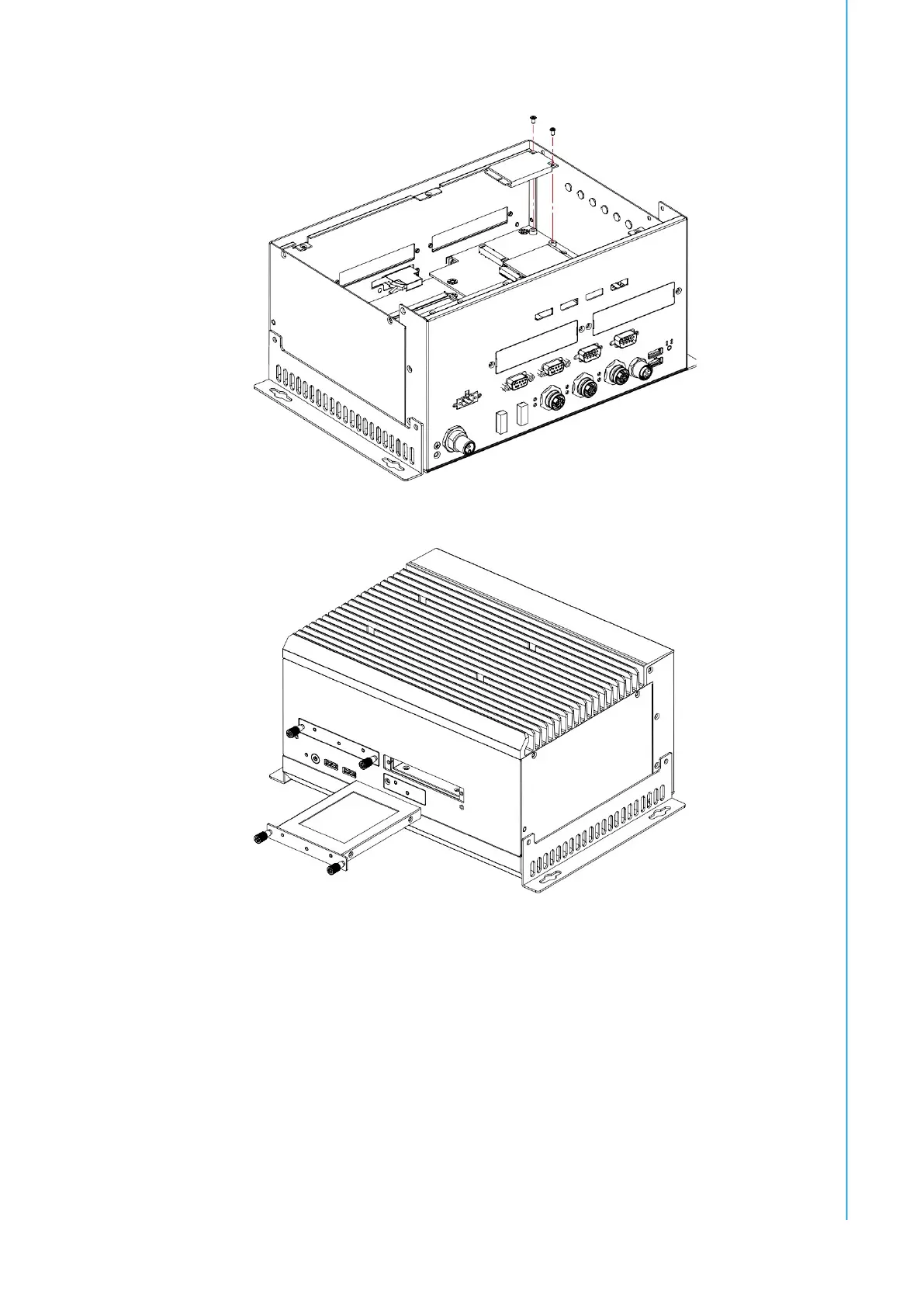

Figure 3.11 ITA-580G mSATA installation
Figure 3.12 ITA-580G SSD tray installation
ITA-580
– mSATA installation
1. Undo 6 screws and take off the bottom cover.
2. Undo 6 screws from middle bracket.
3. Insert mSATA module on mSATA1 slot of I/O board.
4. Secure 2 screws (P/N: 1930000198, M2x4L F/S D=4.3 H=0.8) on mSATA mod-
ule.
5. Replace middle bracket then bottom cover with secured all screws.
– SSD kit installation (FRU-ITASSD-0001 as optional)
1. Undo 6 screws and take off the bottom cover.
