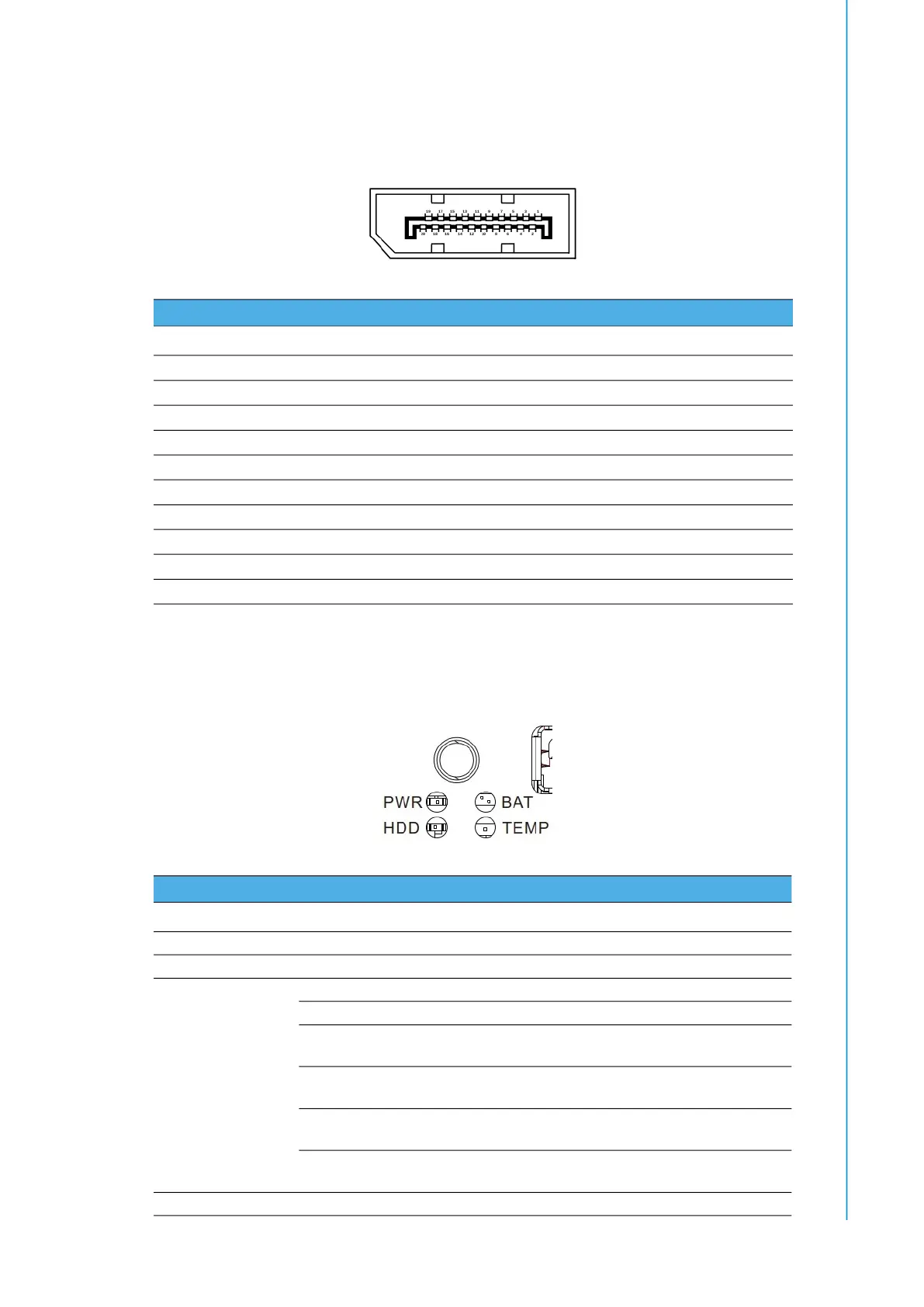

13 ITA-580/580G User Manual
Chapter 2 H/W Installation
2.2.7 Display Port Connector
ITA-580/580G offers two of external Display port, which resolution max up to 4096 x
2304 at 60 Hz.
2.2.8 LED Indicators
The system features 4 LED (s), which are used to indicate active status of computer,
the LED behaviors are explained in below table.
Table 2.8: Display Port Connector Pin Definitions
Pin Signal Name Pin Signal Name
1
DP1_0+
11
GND
2
GND
12
DP1_3-
3
DP1_0-
13
DP1_AUX_EN#
4
DP1_1+
14
GND
5
GND
15
DP1_AUX+
6
DP1_1-
16
GND
7
DP1_2+
17
DP1_AUX-
8
GND
18
DP1_HPD
9
DP1_2-
19
GND
10
DP1_3+
20
+V3.3_DP1/DP2
Table 2.9: LED Indicators
Item LED Status Color Behavior
1 PWR On Green System is powered on
2 Storage On Green Data is reading and writing
3 Battery
On Blinking green Battery is charging
On Green Battery is fully charged and standby
On
Blinking green
and red
Battery is discharging
On Red
Need to replace a new battery module
(ITA-EM-BA62)
On
Blinking Red/1
sec
Battery is overvoltage (Please contact your
sales representative)
On
Blinking Red/0.5
sec
Battery is input overcurrent (Please contact
your sales representative)
4 Temperature On Red Processor is overheating
