13 ITA-5231 User Manual
Chapter 2 H/W Installation

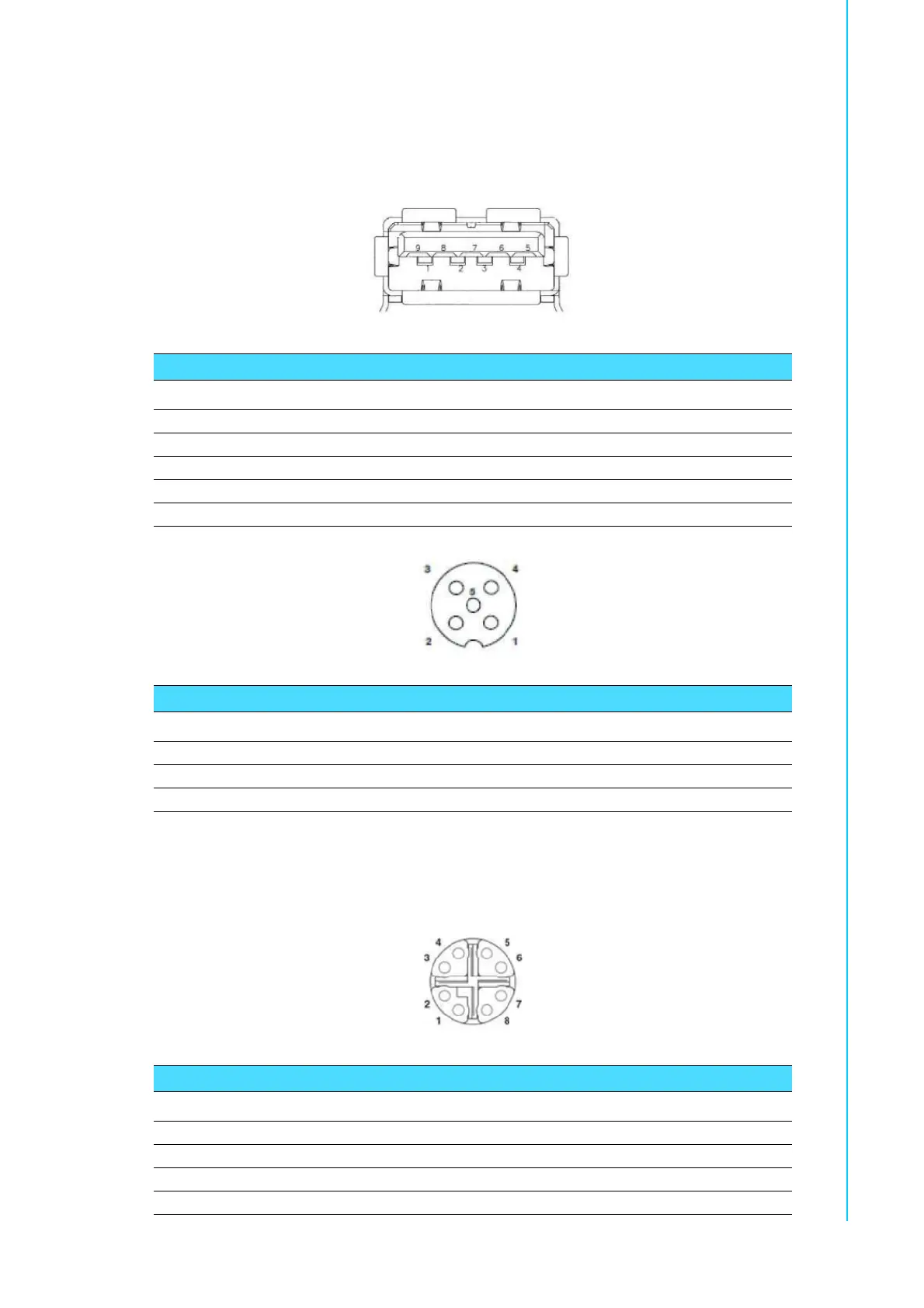

2.3.4 USB Connector
ITA-5231 features two USB 3.0 ports with a Type-A connector and one USB 2.0 port
with an M12 A-coded female connector. The USB interface can be disabled via the
system BIOS utility.
2.3.5 Ethernet
ITA-5231 provides three 10/100/1000 Mbps Ethernet ports with an M12, X-coded
connector.
Table 2.8: USB 3.0 Connector Pin Definitions
Pin Signal Name Pin Signal Name
1 +V5(VCC) 6 StdA_SSRX+
2 D- 7 GND_DRAIN
3 D+ 8 StdA_SSTX-
4 GND 9 StdA_SSTX+
5 StdA_SSRX-
Table 2.9: USB 2.0 Connector Pin Definitions
Pin Signal Name Pin Signal Name
1 +5V 4 NC
2 D- 5 GND
3 D+
Table 2.10: Ethernet Connector Pin Definitions
Pin Signal Name Pin Signal Name
1 MDI0+ 5 MDI3+
2 MDI0- 6 MDI3-
3 MDI1+ 7 MDI2-
4 MDI1- 8 MDI2+
